CHANNEL BANKS
The groupings of channels displayed in the web and smart phone interfaces can be edited so as to display
any combination of ARC Plus and ARC-16 channels. Each customizable grouping is known as a Channel Bank,
and you may configure up to 16 separate channel banks for display on each ARC Plus web or smart phone
interface.
To create or edit a channel bank, use the Edit > Settings > Channel Banks… menu.

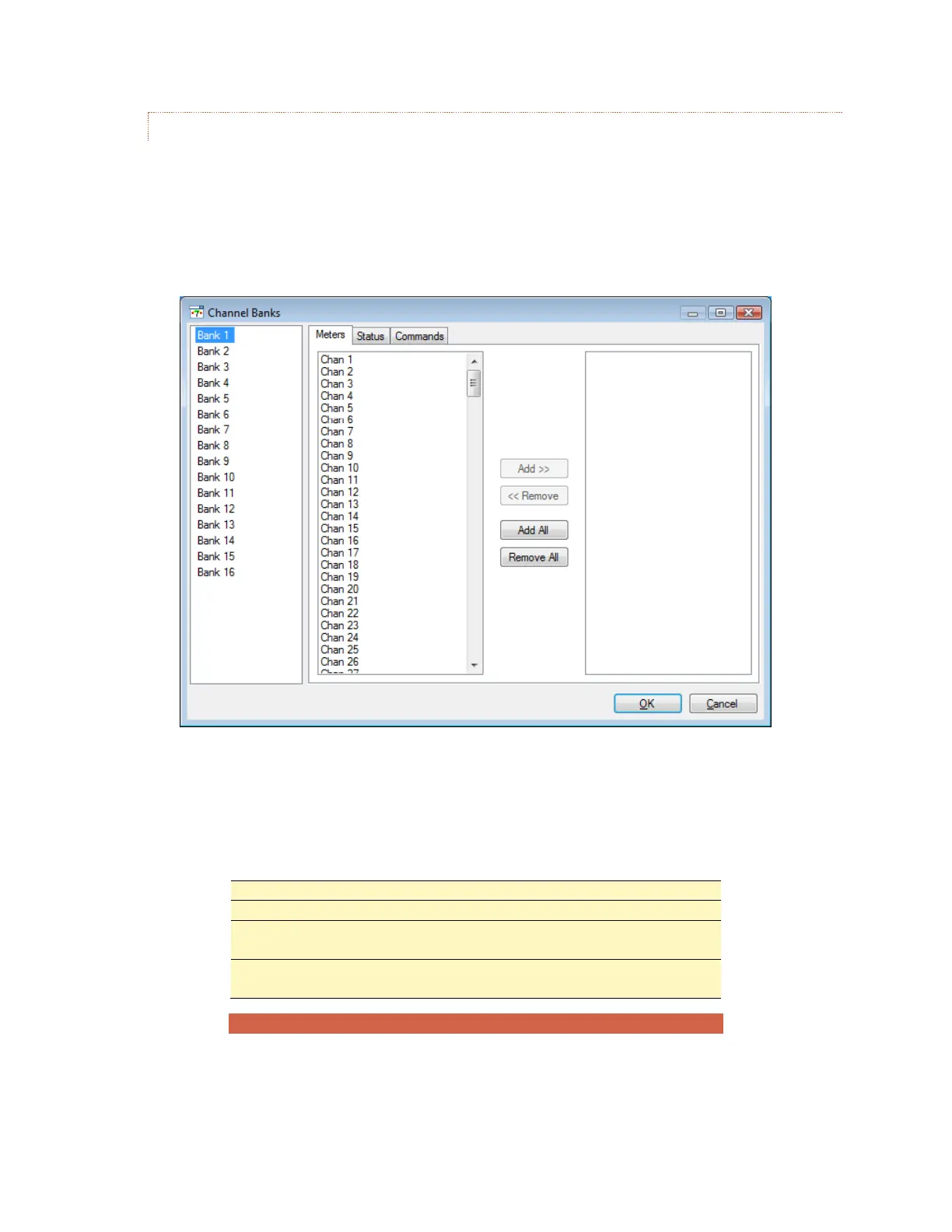

The Channel Bank Editor always shows all 16 banks. To name a bank, first select it, and then click on its label
in the list and type in a new name.
Each channel bank can contain any number of meter, status and command channels.
To add channels to a bank:
1
Select the channel bank
2
Select the Meter, Status or Commands tab
3
Select the channel(s) you want to add from the left hand list, and
click the Add >> button. (You can add all channels by clicking Add All)
4
To remove channels, select the desired channels in the right hand list
and use <<Remove or Remove All
The channel banks will appear in the web interface and smartphone interface.
