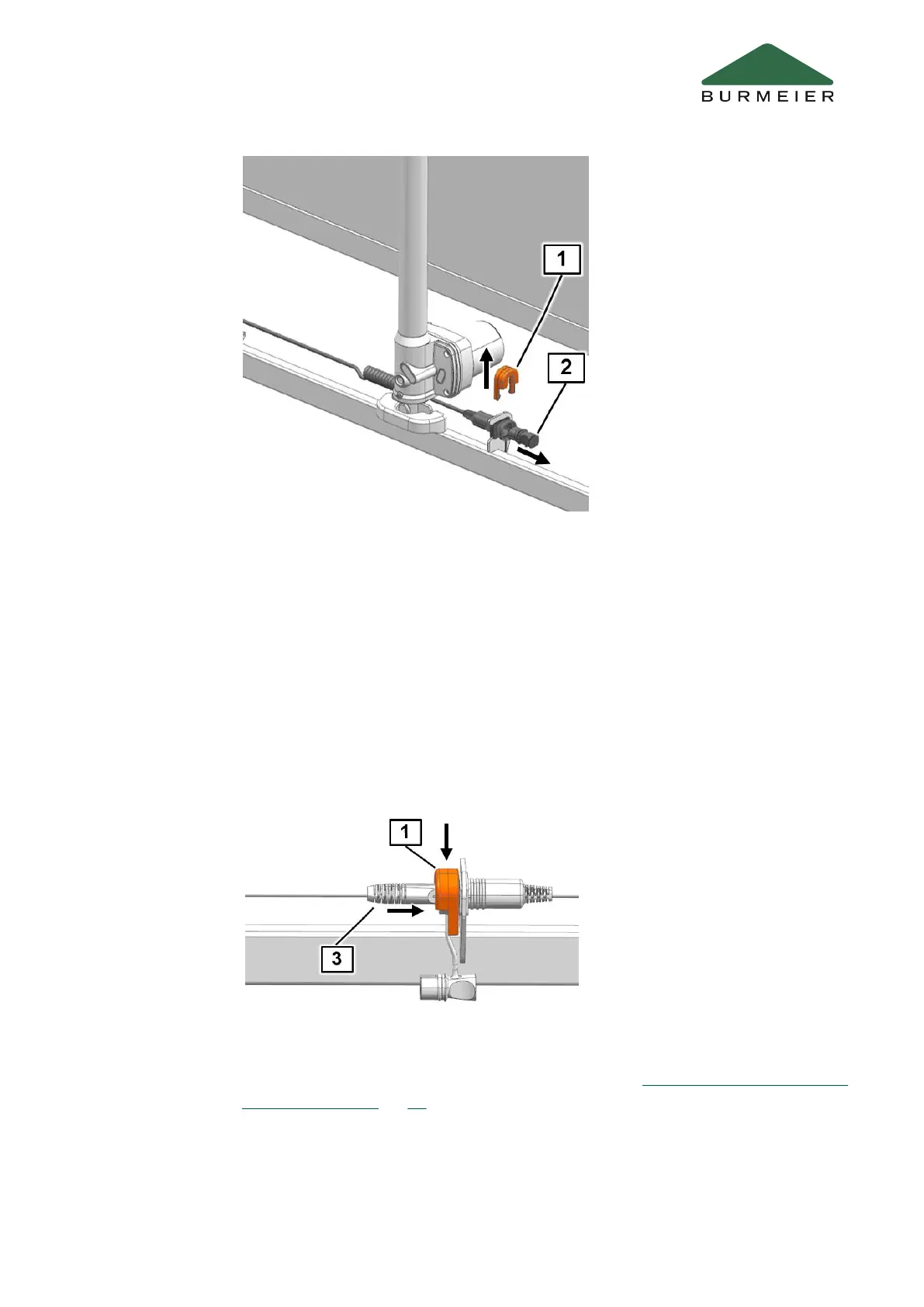

Insert the 6-pole plug [3] for the switch mode power supply into the mains socket.
Attention - incorrect connection!If the plug-in power supply unit is incorrectly
connected to the connection socket, the system cannot be operated. The IPX4
protection class cannot be guaranteed.
The 6-pin plug of the switch mode power supply must be correctly connected to
the connection socket (the plug fits in one direction only. If it does not seem pos-
sible to insert it, do not use excessive force but rotate the plug by a ½-turn and try
again).
• Press the pull-out prevention device [1] from above onto the socket as far as it
will go.
Make sure that the plug is properly inserted.
• Now plug the switch mode power supply into an electrical socket.
It is essential that you follow the instructions given in Part B: Switch mode power
supply connection » 24.
3. Connection of the 230 V cable:
Assembling the Care Bed
Part B: Operator and Technical Personnel 19
