Construction and function
V-Mix Fix Plus
109165
Translation of original operating manual
45

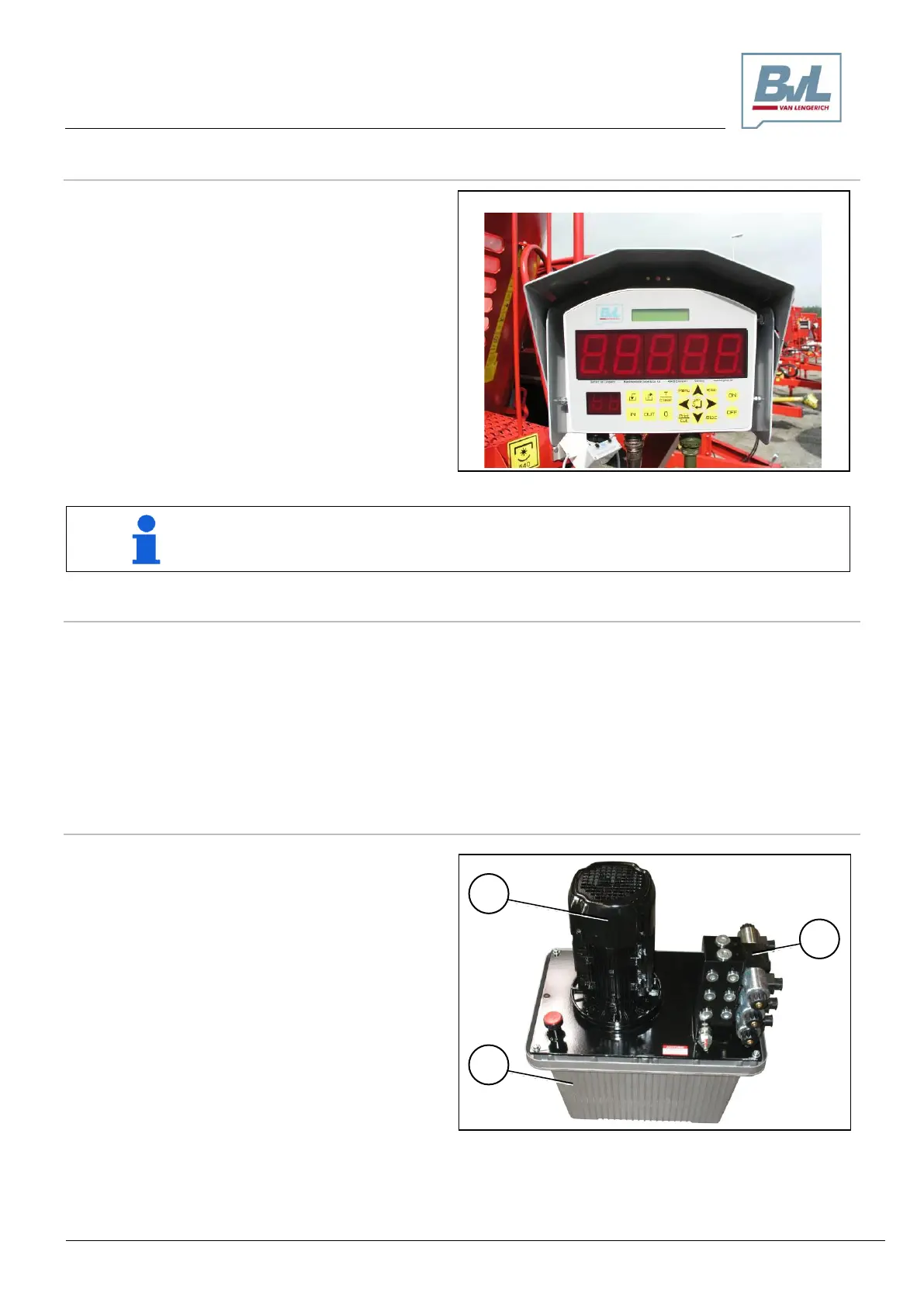

4.11 Weighing scales (optional)
Optional equipment:
The machine is available with a variety of weighing scale
options.
Weighing scale options include:
 an additional scale to weigh loaded feed amounts,
 a programmable weighing scale with the capacity to
store multiple feed mix formulas,
 a programmable weighing scale with the capacity to
store multiple feed mix formulas, including a USB
drive and PC interface,
Comply with the operating manual supplied together with
the weighing scale.
Fig. 4-21
Machines designed with a cleaning modality are only available with the PTM HL50E weigh-
ing scale
4.12 Hydraulic aggregate (optional)
A hydraulic aggregate serves to perform hydraulic functions such as opening and closing the dosing
valve. In this process, the machine’s hydraulic components are attached to the hydraulic aggregate’s
electrohydraulic control block (3).
The performance of hydraulic functions occurs by means of operating switches on the control cabinet
(see page 50). The hydraulic system is powered when a delivery gate or conveyor elevator is activated,
automatically powering down after approximately 30 seconds of inactivity.
4.12.1 Hydraulic aggregate 5.5 KW
Hydraulic assemblies overview:
 Motor (1),
 Oil tank (2),
 Electrohydraulic control block (3)
Fig. 4-22
3
1
2
