BVL V-MIX Fix - Plus Control; Control Cabinet Plus Control Overview

Construction and function
52
Translation of original operating manual
V-Mix Fix Plus
109165
4.15.2 „Plus“ control
The front plate of the control cabinet contains the main switch (1), emergency stop/off button (2), touch
display (3) and all service and control elements (5-11) essential to the machine’s operation. Operating
and control elements can be expanded as needed.

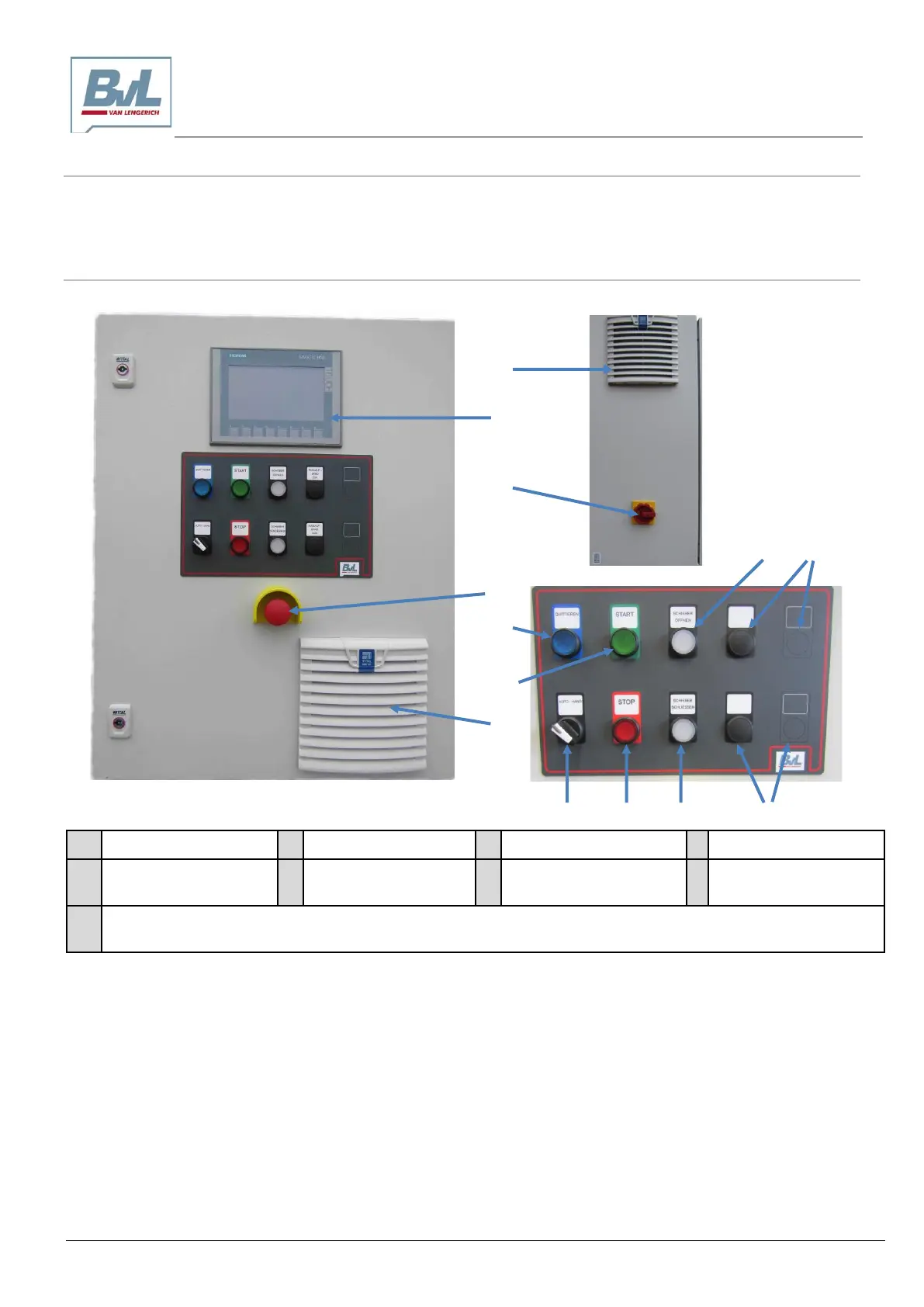

4.15.2.1 Control cabinet “plus” control overview
1
Main switch
3
Touch display
5
Confirm
7
Start
2
Emergency stop/off
button
4
Control cabinet - fan
6
Automatic/manual se-
lector switch
8
Stop
9-
11
Operating and control elements (see item 4.15.2.5)
1
2
3
4
5
7
4
10 11
6 8 9 11
Fig. 4-32
