YAK 130
BVM ©2016 11 Mar. 23, 2016

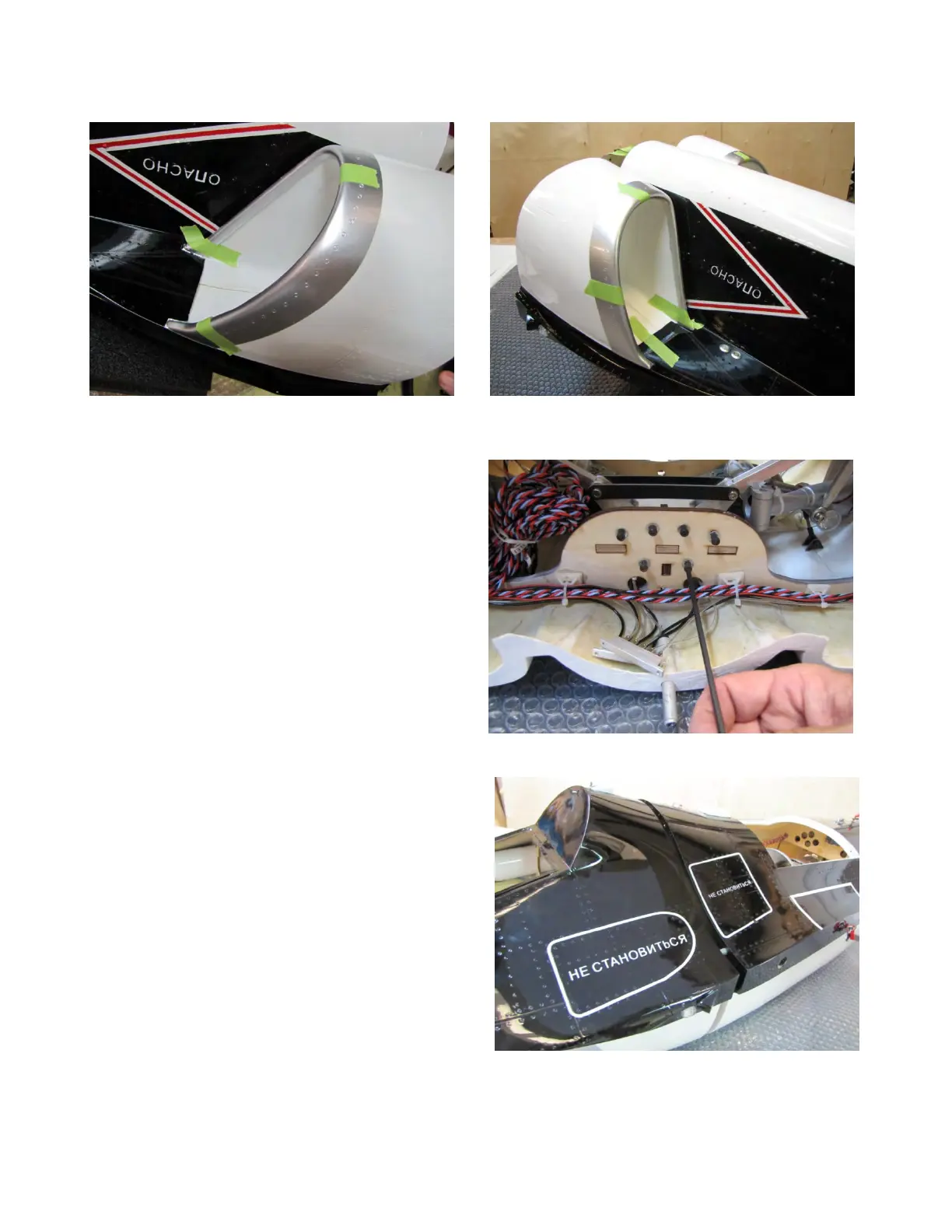

Place the inlet ducts into the Fwd fuse section and tape them to the fuse in 3 or 4 places..
Right Inlet Shown Left Inlet Shown
Remove the (6) 2.5mm x 14mm SHCS
from the Inlet retaining former in the Aft
fuse. A long 2.5mm Hex wrench is handy.
Align the (4) Aluminum pins and slide the
fuse halves together.
Apply a thin wipe of Vaseline to the alignment
pins to aid assembly.
