NICE - MIRIAM - CRISTAL - LEONORA - PRETTY - DIANA - KRISS - MARY
EN

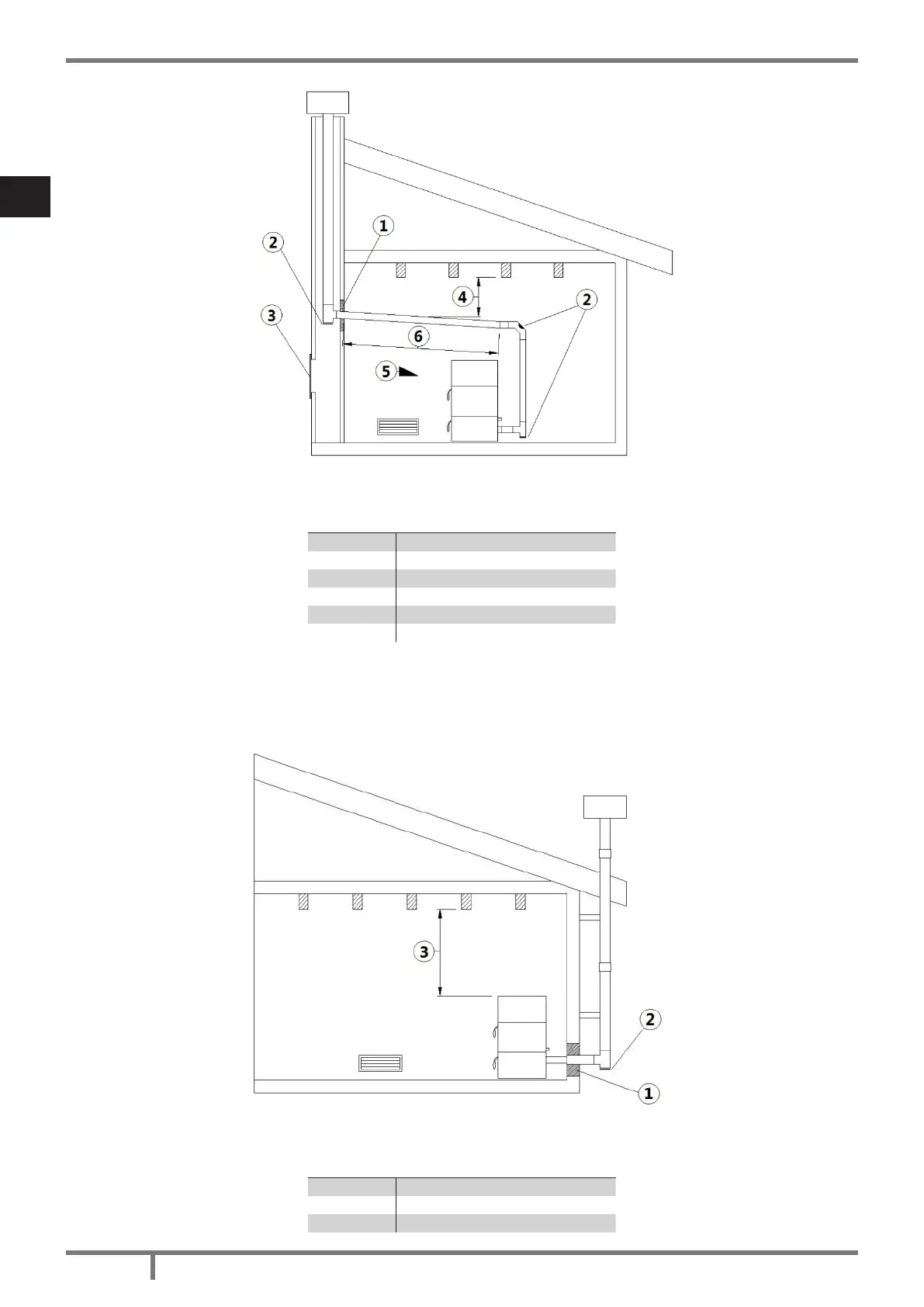

Fig. 10 - Example 2
LEGEND Fig. 10 page 58
1 Insulating material
2 Inspection plug
3 Chimney inspection entrance
4 Minimum safety distance = 0,5 mt
5 Inclination ≥ 3°
6 Level section ≤ 1 mt
• Old chimney ue with an inserted pipe of minimum Ø120 mm and with an external door which enables
the chimney cleaning.
Fig. 11 - Example 3
LEGEND Fig. 11 page 58
1 Insulating material
2 Inspection plug
3 Minimum safety distance = 0,5 mt
