• Use a plate pipe for stoves of Ø80 mm or Ø100 mm depending on the type of system and with silicone
gaskets.
• It is forbidden to use metal, bre cement or aluminium exible pipes.
• For change of direction it is obligatory always to use a union (with angle > 90°) with inspection plug
which enables an easy periodic cleaning of the pipes.
• Please assure you that after the cleaning the inspection plugs are sealed with its efcient gasket.
• It is forbidden to connect more appliances to the same fume conduit.
• It is forbidden to convey in the same fume conduit exhausts from overhanging cooker hoods.
• It is forbidden to exhaust ue gases directly from the wall towards the outside and closed spaces also
at open top.
• It is forbidden to connect any other appliance (wood stoves, cooker hoods, boilers, etc...).
• The fume conduit must be placed at a distance of minimum 500 mm from ammable or heat-susceptible
components.
7.10 EXAMPLES OF CORRECT INSTALLATION

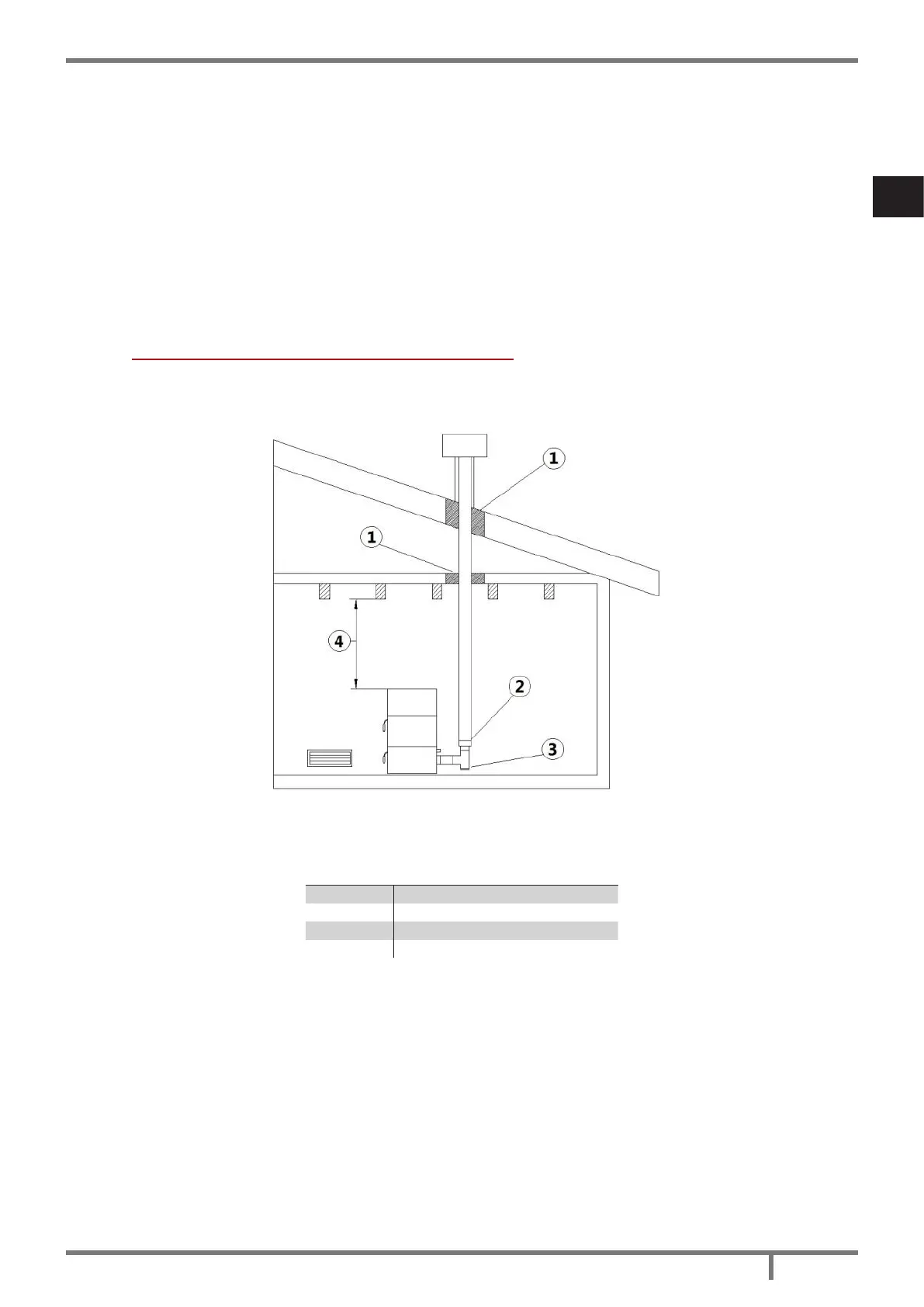

Fig. 9 - Example 1
LEGEND Fig. 9 page 57
1 Insulating material
2 Reduction from Ø100 to Ø80 mm
3 Inspection plug
4 Minimum safety distance = 0,5 mt
• Chimney ue installation Ø120 mm with an enlarged drilling for pipe transit.
