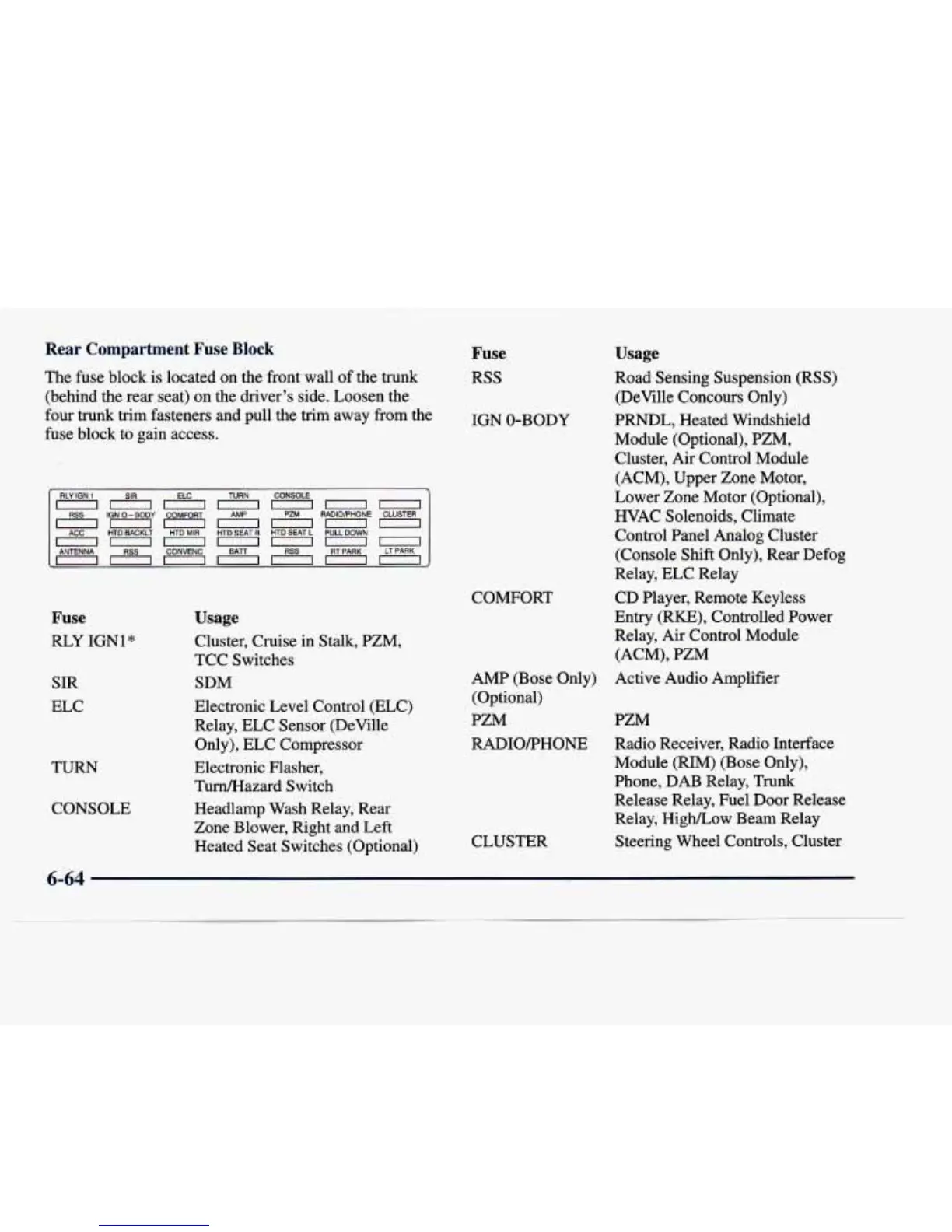

Rear Compartment Fuse
Block
The fuse block is located on the front wall of the
trunk
(behind the rear seat) on the driver’s side. Loosen the
four trunk trim fasteners and ~ull the trim away from the
fuse block to gain access.
Fuse
RSS
IGN O-BODY
RLY IGN
1
~O~~~U~
~~n~nn~
IGN 0-BODY COMFORT
HTD BACKLT HTD MIR
HTD
SEAT
R
HTD
SEAT
L
PULL
DOWN
ANTENNA
CONVENC
RT PARK LT PARK
RADIOPHONE
CLUSTER
COMFORT
Fuse
RLY
IGNl*
SIR
ELC
TURN
CONSOLE
Usage
Cluster, Cruise in
Stalk,
PZM,
TCC Switches
SDM
Electronic Level Control (ELC)
Relay, ELC Sensor (DeVille
Only), ELC Compressor
Electronic Flasher,
Turn/Hazard Switch
Headlamp Wash Relay, Rear
Zone Blower, Right and Left
Heated Seat Switches (Optional)
Usage
Road Sensing Suspension (RSS)
(DeVille Concours Only)
PRNDL, Heated Windshield
Module (Optional), PZM,
Cluster, Air Control Module
(ACM), Upper Zone Motor,
Lower Zone Motor (Optional),
HVAC Solenoids, Climate
Control Panel
Analog
Cluster
(Console Shift Only), Rear Defog
Relay, ELC Relay
CD Player, Remote Keyless
Entry (RKE), Controlled Power
Relay, Air Control Module
(ACM), PZM
AMP (Bose Only) Active Audio Amplifier
(Optional)
PZM PZM
RADIOPHONE Radio Receiver, Radio Interface
Module (RIM) (Bose Only),
Phone,
DAB
Relay, Trunk
Release Relay, Fuel Door Release
Relay, High/Low Beam Relay
Steering Wheel Controls, Cluster
CLUSTER
