CAME BK Series User Manual

360
CAME
105
22 max.
182.5
142.5
325
170
255
106
15
p. 6 - Manual FA00442-EN - 12/2017 - © CAME S.p.A. - Translated original instructions

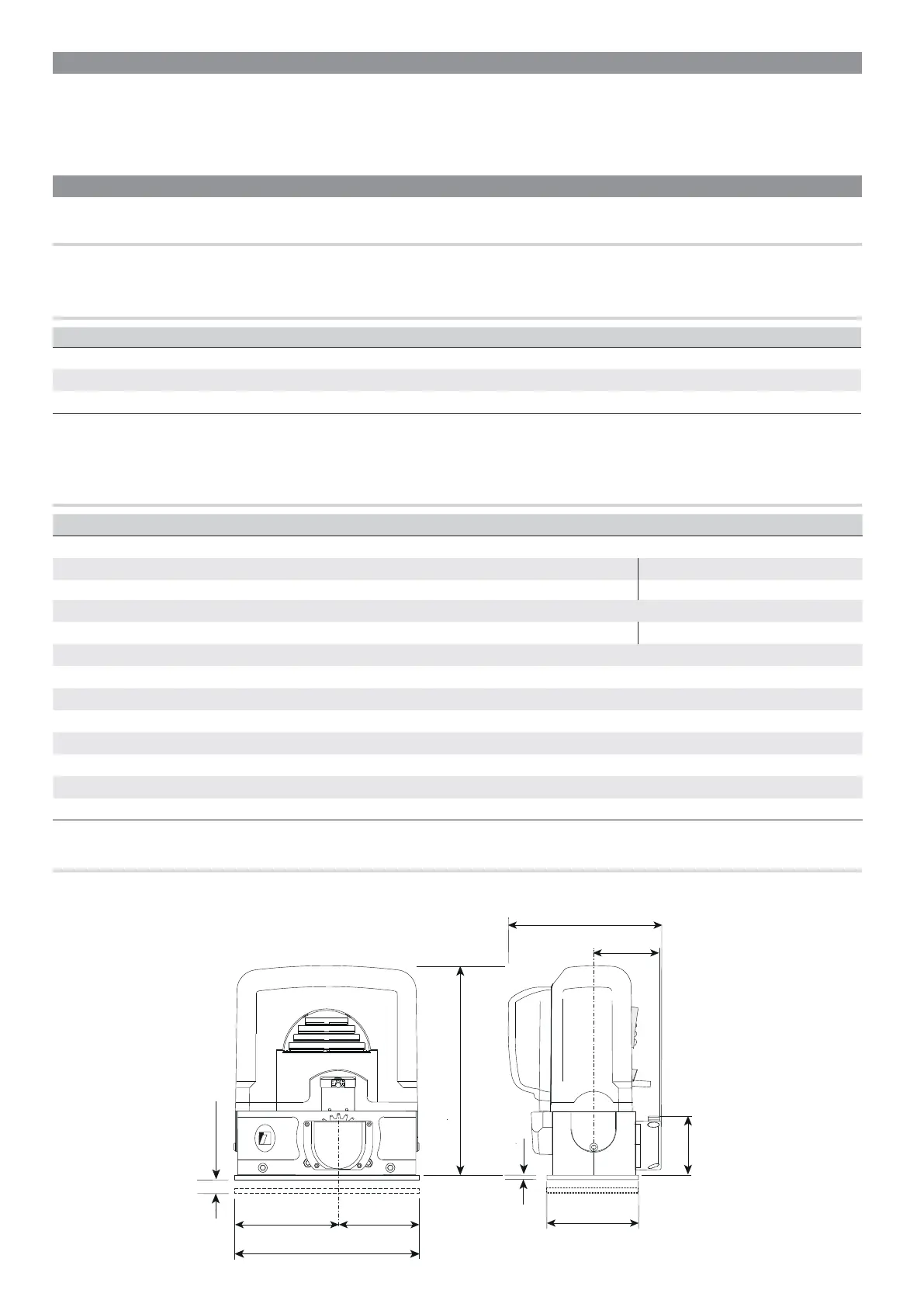

DIMENSIONS
TECHNICAL DATA
Model BK-800 BK-1200 BK-1800 BK-2200 BK-1210 BK-1810 BK-2210
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC 120 AC
Input voltage to motor (V - 50/60 Hz) 230 AC 120 AC
Stand-by consumption (W) 5
Stand-by consumption with the RGP1 (W) module 0,5 -
Power (W) 520 380 480 580 310 440 500
Thrust (N) 800 850 1150 1500 850 1100 1400
Opening speed (m/min) 10,5
Operating temperature (°C) -20 ÷ +55
Condenser (μF) 22 25 31,5 35 100 140 160
Apparatus class I
Motor's heat protection (°C) 150
Weight (Kg) 21 18 19,5 21 18 19,5 21
KEY
 This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
The measurements, unless otherwise stated, are in millimeters.
DESCRIPTION
Operator complete with control board and mechanical end stops for sliding gates up to 2.200 kg in weight.
INTENDED USE
The operator is designed to power sliding gates used in apartment blocks and industrial plants.
Any installation and/or use other than that specified in this manual is forbidden.
INTENDED USE
Model BK-800 BK-1200 / 1210 BK-1800 / 1810 BK-2200 / 2210
Standard reference* length of the sliding part (m) 10
Maximum weight of the sliding part (kg) 800 1.200 1.800 2.200
Pinion module 4 4 4 6
* When applied to other than standard measurements, see the following paragraphs.

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
