CAME BK Series User Manual

AF
R700
R800
10 11 TS 1 2 3 3P 4 5 7 CX CY
A B
S1 GND
ACCESS CONTROL
p. 16 - Manual FA00442-EN - 12/2017 - © CAME S.p.A. - Translated original instructions
WHITE
BLUE
BLACK
RED



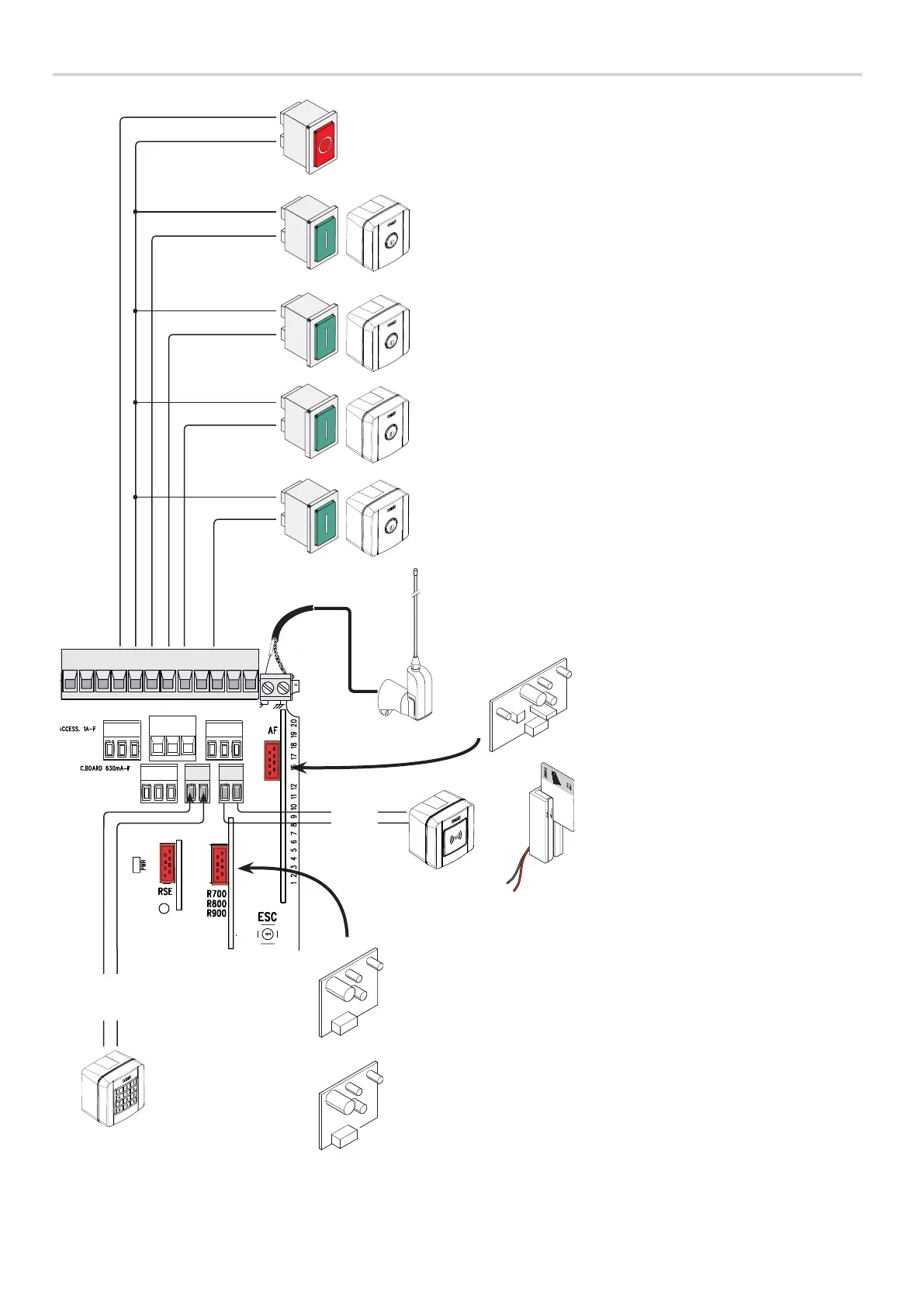

Fit either theAF43S or AF868 card for
controlling the gate via a transmitter.
WARNING! For the system to work properly, before fitting any snap-in card (e.g. the AF R800), you MUST CUT OFF THE MAIN POWER
SUPPLY and remove any batteries.
ONLY CLOSE function from control device (NO contact).
Warning: in MAINTAINED ACTION mode, the control device must be connected
to 2-4.
PARTIAL OPENING function from control device (NO contact)
OPEN-CLOSE-INVERT function (step-step) from control device (NO contact).
Alternatively, from the functions programming you can activate the single
command OPEN-STOP-CLOSE-STOP (sequential).
See function F7.
OPEN ONLY function from control device with NO contact.
Warning: in MAINTAINED ACTION mode, the control device must be connected
to 2-3.
STOP button (NC contact). For stopping the gate while excluding automatic
closing. To resume movement either press the control button or any other
control device.
 Activate the F1 programming function. If the button is no used, leave
this function deactivated.
Transponder or card reader.
Keypad selector.
CONTROL DEVICES
 Fit
the R800 decoding card so that the
keypad selector can be recognized.
 Fit the R700 coding card to recognized
the transponder or the card reader.
Antenna with RG58 cable for remote control.

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
