p. 12 - Manual FA00442-EN - 12/2017 - © CAME S.p.A. - Translated original instructions

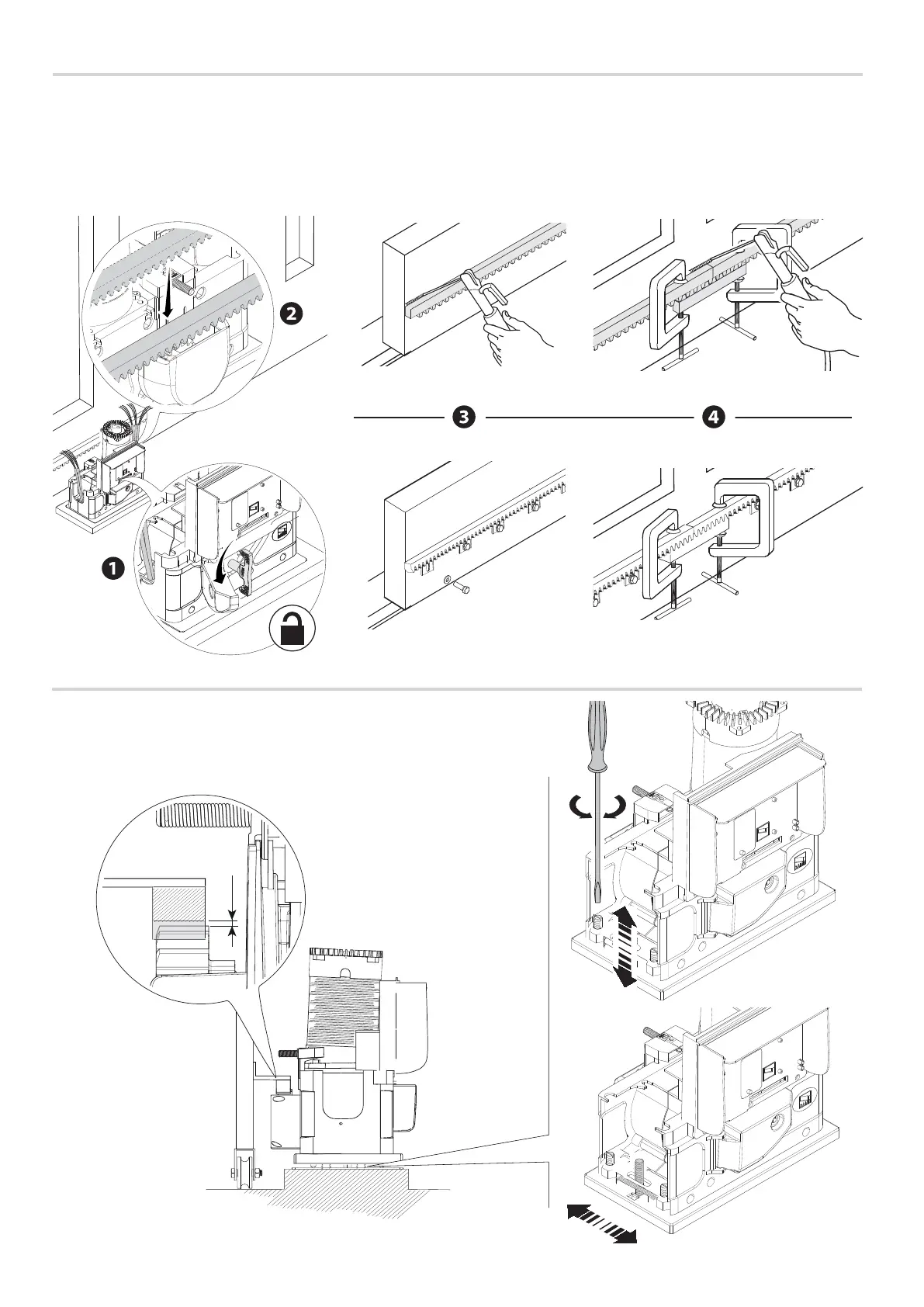

ADJUSTING THE PINION-RACK PAIRING
Manually open and close the gate and adjust the pinion-rack coupling distance using the
threaded feet (vertical adjustment) and the holes (horizontal adjustment). This prevents the
gate's weight from bearing down on the operator.
FASTENING THE RACK
If the rack is already set up, the next step should be to adjust the rack-and-pinion coupling distance, otherwise, fasten it:
- release the gearmotor (see chapter called RELEASING THE GEARMOTOR) ❶;
- rest the rack onto the gearmotor pinion ❷;
- either weld or fasten the rack along the entire length of the gate ❸.
To assemble the rack modules, use an extra piece; rest it under the joining point and lock it into place with two clamps ❹.
