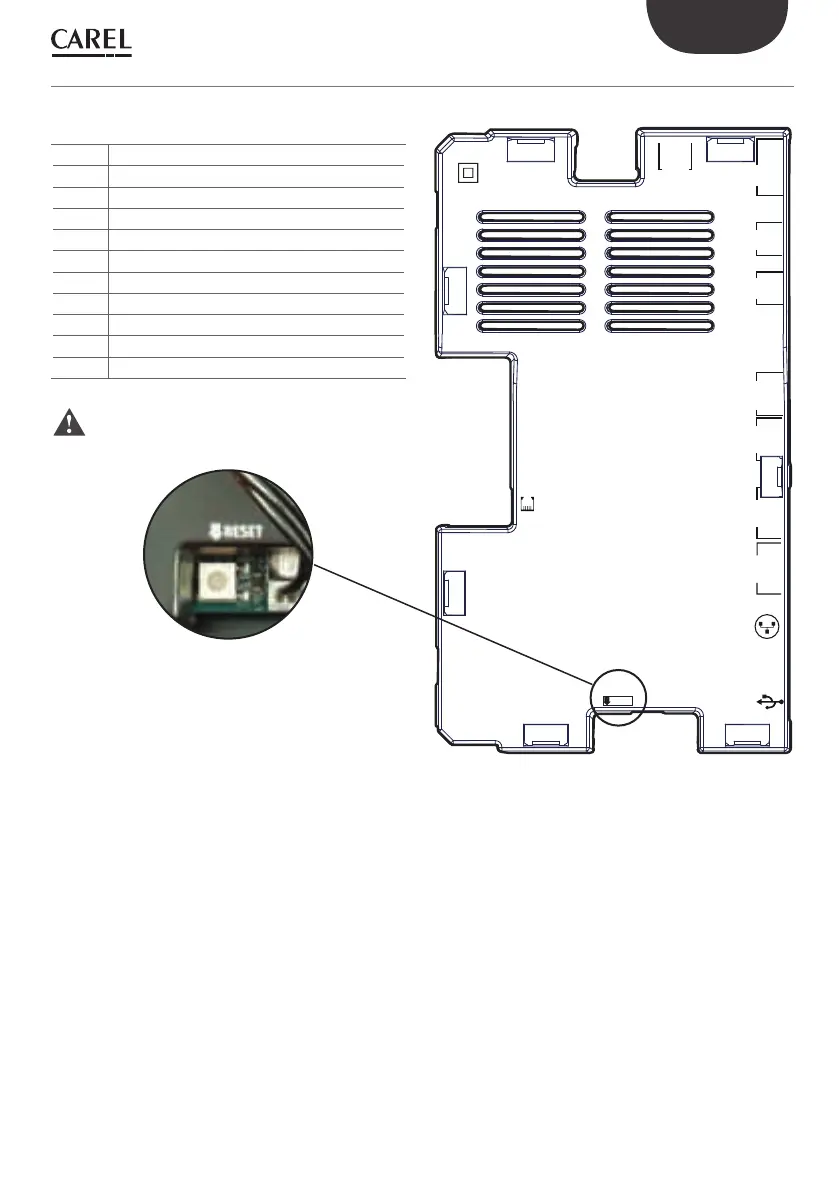

Terminals and connections:
JP3 relay 1
JP5 relay 2
JP6 relay 3
JP15 telephone line
JP10 power supply
JP12 RS485 (field - line 2)
JP11 RS485 (field - line 1)
JP14 RS232 (optional GSM/GPRS modem)
JP13 RS232 (service)
JP22 Ethernet (LAN)
JP20 USB
Warning: the RESET procedure is reserved for
qualified personnel only
5. BOARD AND CONNECTIONS
