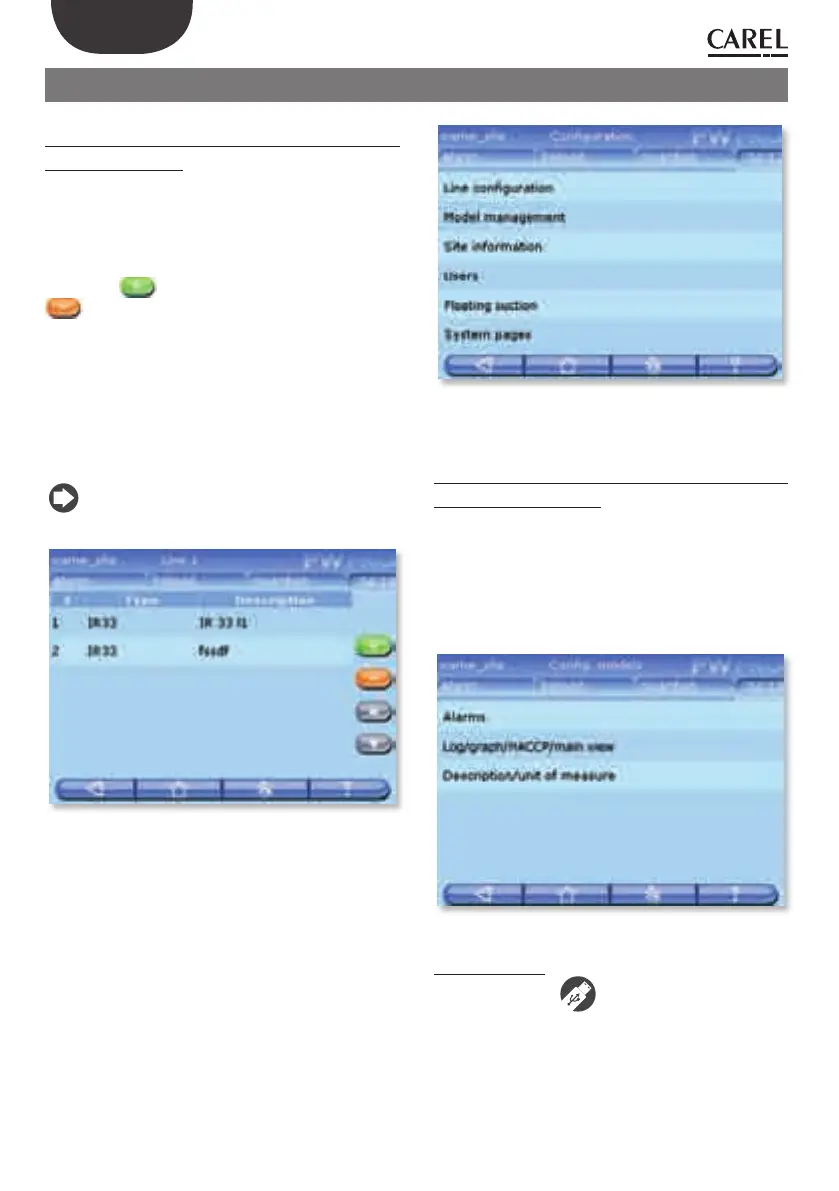

8. CONFIGURATION
Line con guration
Line 1 and Line 2
(these are the two lines that can be confi gured for
the installation: choose “line 1” and then proceed in
the same way for the second line, if used).
Devices
To add (or where necessary remove
) devices to/from the installation, choose the
type (from those available in the PlantWatchPRO
archive), then assign a short custom description and
assign the address (this must be diff erent for each
device on the same line, otherwise the program
will display an error message); a group can also
be assigned (up to 5 groups are available), used to
apply specifi c rules and enable or disable the device
according to special needs.
Disabling a device means that any alarms it
generates will not be managed.
Device customisation
List of devices confi gured on the line; this is used
to display the variables and if necessary change the
description.
Connection
To set the protocol (CAREL-RS485 or Modbus®-RS485)
and confi gure the serial port parameters.
Model management
Model con guration
Used to confi gure the models corresponding to the
instruments, that is:
Alarms (priority and enable/disable);•
Log/graph/HACCP/main view;•
Description/unit of measure (custom description •
and unit of measure).
Export model
To export models
