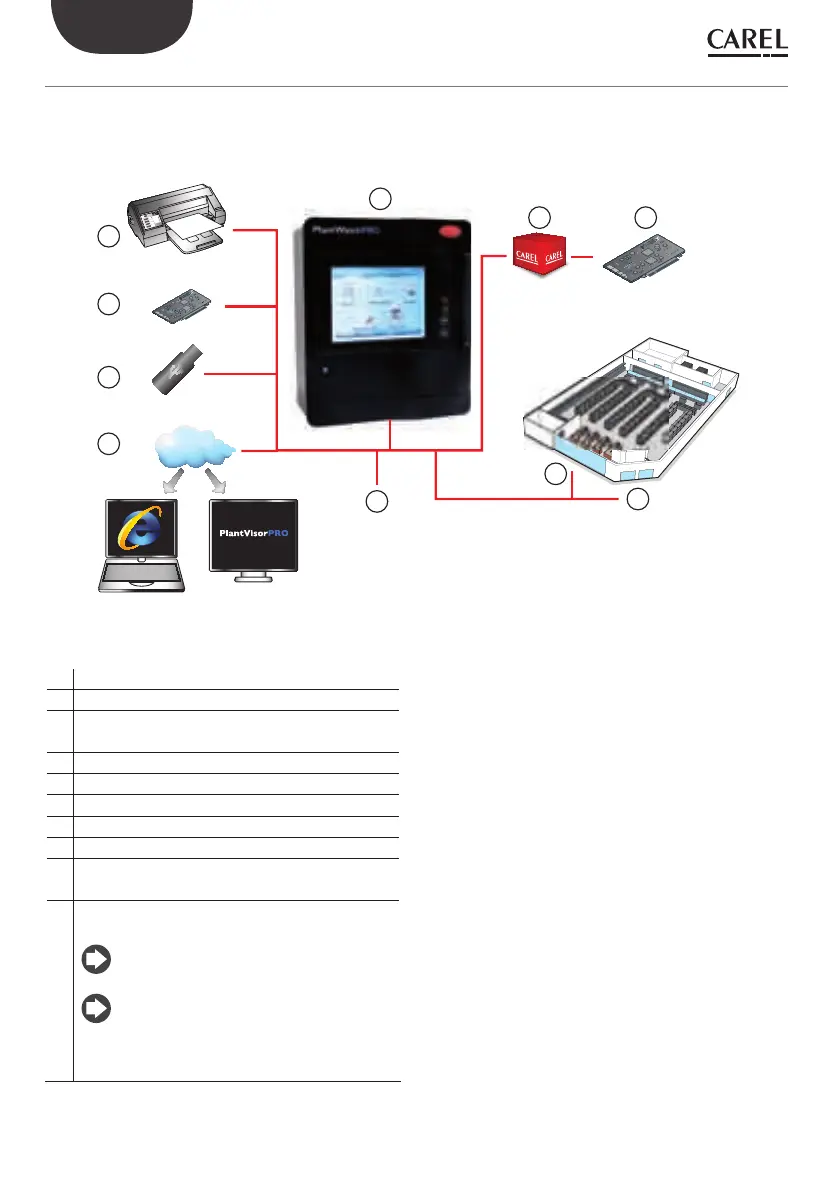

General diagram of PlantWatchPRO
connections
2
1
3
4
5
6
7
10
GSM/GPRS
PSTN
9
8
LAN
Remote
- Internet Explorer 7.0
Key and product codes:
1 PlantWatchPRO
2 PostScript-enabled USB printer
3 PSTN analogue modem (version PWPROM0000
only)
4 USB memory key
5 PC (via LAN)
6 3 relay outputs
7 Installation: Modbus® RTU line
8 Installation: CAREL line
9 GSM/GPRS modem connection kit(code
PWOPMD0000)
10 optional GSM/GPRS modem (code
PLWOPGSM00)
required to be able to use all the SMS
functions;
using modems other than the one supplied
by CAREL will not guarantee correct
operation of the appliance and technical
service
