3-CONTROLSANDINSTRUMENTS

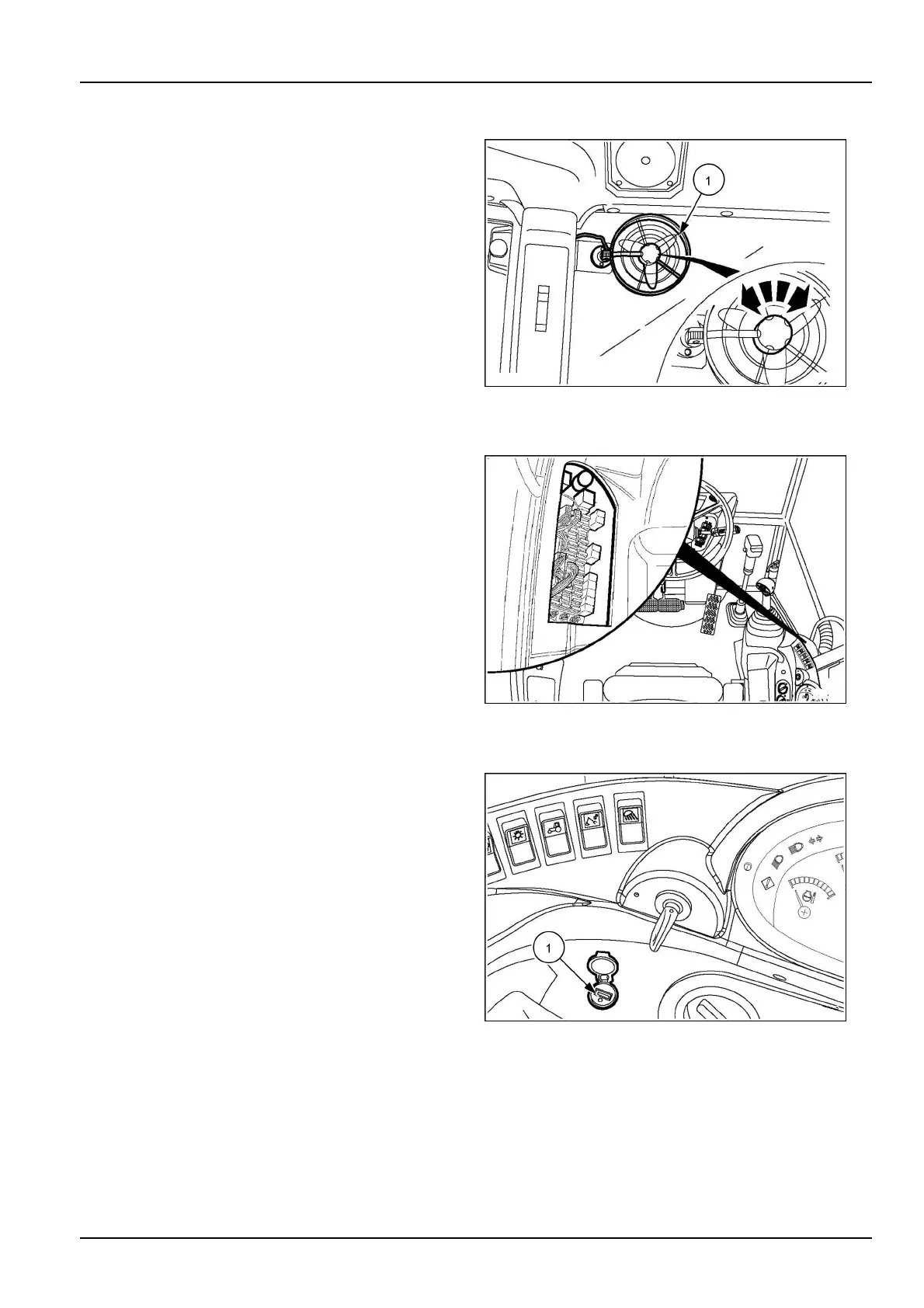

Operator’scompartmentfan(Optional)
Turnthemiddleofthefan(1)tostartorstopit.
LEEN11T0076AA15
Fuseandrelaycontrolunit
Thefuseandrelaycontrolunitislocatedundertheside
instrumentclusterpanelandmaybeaccessedviathe
right-handcabdoor.
Thediagnosticsocketislocatedtotheleftofthefuseand
relaycontrolunit.Withthissocket,itispossibletohave
accesstotheenginedataandtodetectpossiblefaults
whenconnectedtotheelectronicservicetool.
LEEN11T0078AA16
Codedanti-theftswitch(Optional)
Locatedontheright-handconsole,theswitch(1)hasa
redashinglampandmakesitpossibletodisengagethe
engineanti-startdevice,usingthespecialelectronickey.
Iftheelectronickeyisnotinsertedandyoutrytostartthe
machine,thedisplaywillshowanerrormessageafter5
seconds.
NOTE:Keeptheelectronickeywiththestarterswitchkey.
Ifallthe5keys(deliveredwiththemachine]arelost,they
cannotbereplaced.
LEEN11T0079AA17
3-47
