Controlpanelandsideinstrument(580ST-590ST-695STelectronic
motor)
LEEN11T0021FA1

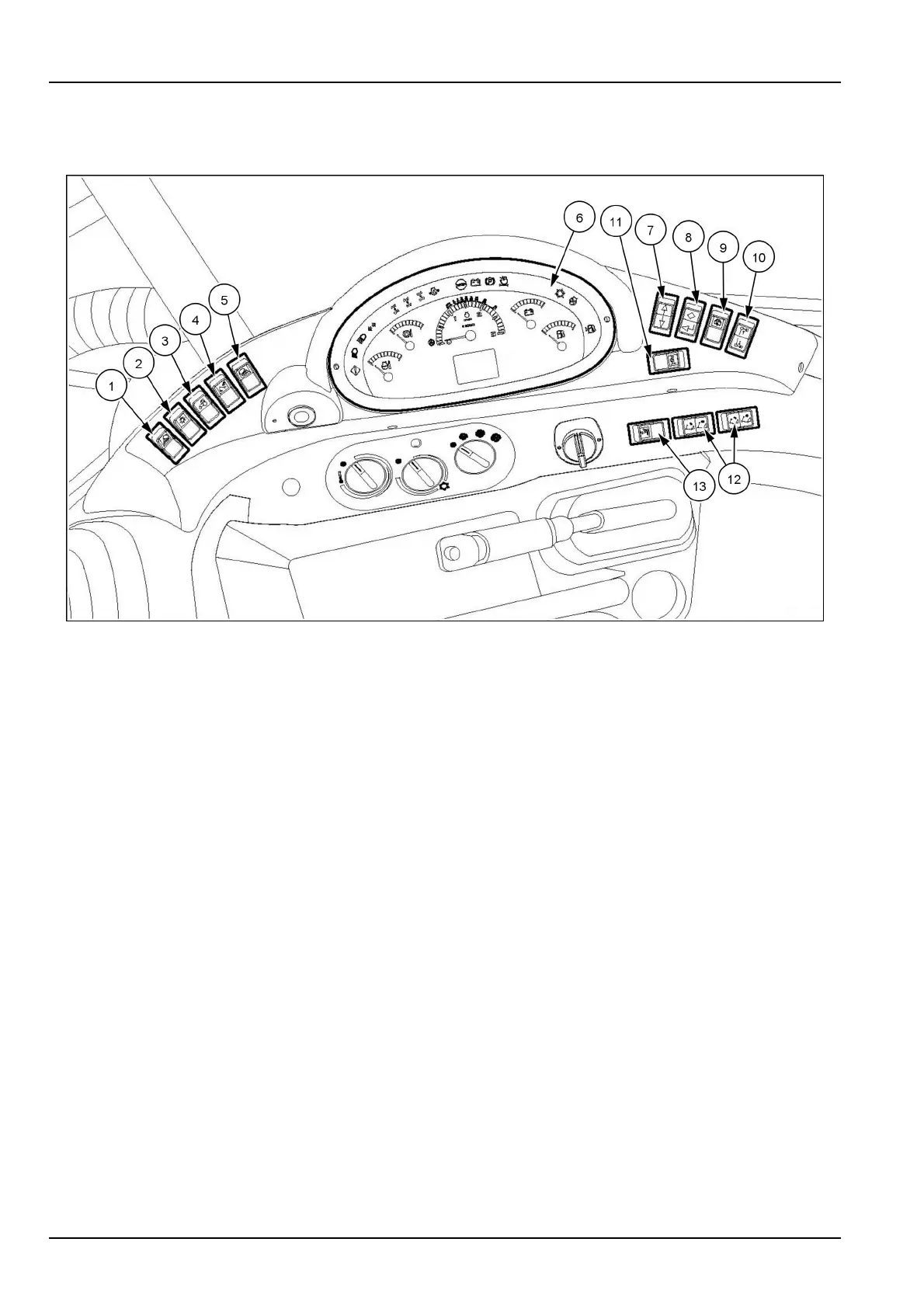

1.Frontworklightswitch:Thisswitchhasthree
positions:
•
TherstpositionisOFF(controllampoff).
•
Secondposition,bypressingthesymbolside(rst
click)theouterfrontworklightsareturnedon(con-
trollampon).
•
Thirdposition,bypressingthesymbolsideagain
(secondclick)theinnerfrontworklightsareturned
ontoo(controllampon).
2.Lightswitch:Thisswitchhasthreepositions:
•
TherstpositionisOFF(controllampoff).
•
Secondposition,bypressingthesymbolside(rst
click)theinstrumentclusterpanelispowered,the
sidelightsandthelowbeamindicatorlampare
turnedon(controllampon).
•
Thirdposition,bypressingthesymbolsideagain
(secondclick)thehighbeamsareenabledandthe
lowbeamsandthelowbeamindicatorlampare
turnedon(controllampon).
3.Sideworklightswitch(Optional):Thisswitchhas
twopositions:
•
TherstpositionisOFF(controllampoff).
•
Secondposition,bypressingthesymbolside,the
sideworklightsturnonatthesametime(control
lampon).
4.Backhoeattachmentlockingswitch:
•
Theswitchisusedtolockorunlockthebackhoeat-
tachmentsafetyhookinpreparationforroadtravel.
5.Rearworklightswitch:Thisswitchhasthree
positions:
•
TherstpositionisOFF(controllampoff).
•
Secondposition,bypressingthesymbolside(rst
click)theouterrearworklightsareturnedon(con-
trollampon).
•
Thirdposition,bypressingthesymbolsideagain
(secondclick)theinnerrearworklightsareturned
ontoo(controllampon).
6.Sideinstrumentcluster:SeePage3-36fordetails.
7.Menuscrollingswitch:Withthisswitch,itispossible
toscrollthroughthemenuordataoptionsshownon
thediagnosticdisplay.
8.Menuenterswitch:Withthiscontrolitispossibleto
displayandconrmthemenuoptionsshownonthe
display.
9.Rearwindshieldwiperandwasherswitch:This
switchhasthreepositions:
•
TherstpositionisOFF(lampoff)andboththe
windshieldwiperandthewindshieldwasherare
disabled.
•
Thesecondpositionallowstopressthesymbol
sideoftheswitchtoactivatetherearwindshield
wiper(lampon).
