Case 590ST - Front Control Panels (695 ST)

3-CONTROLSANDINSTRUMENTS

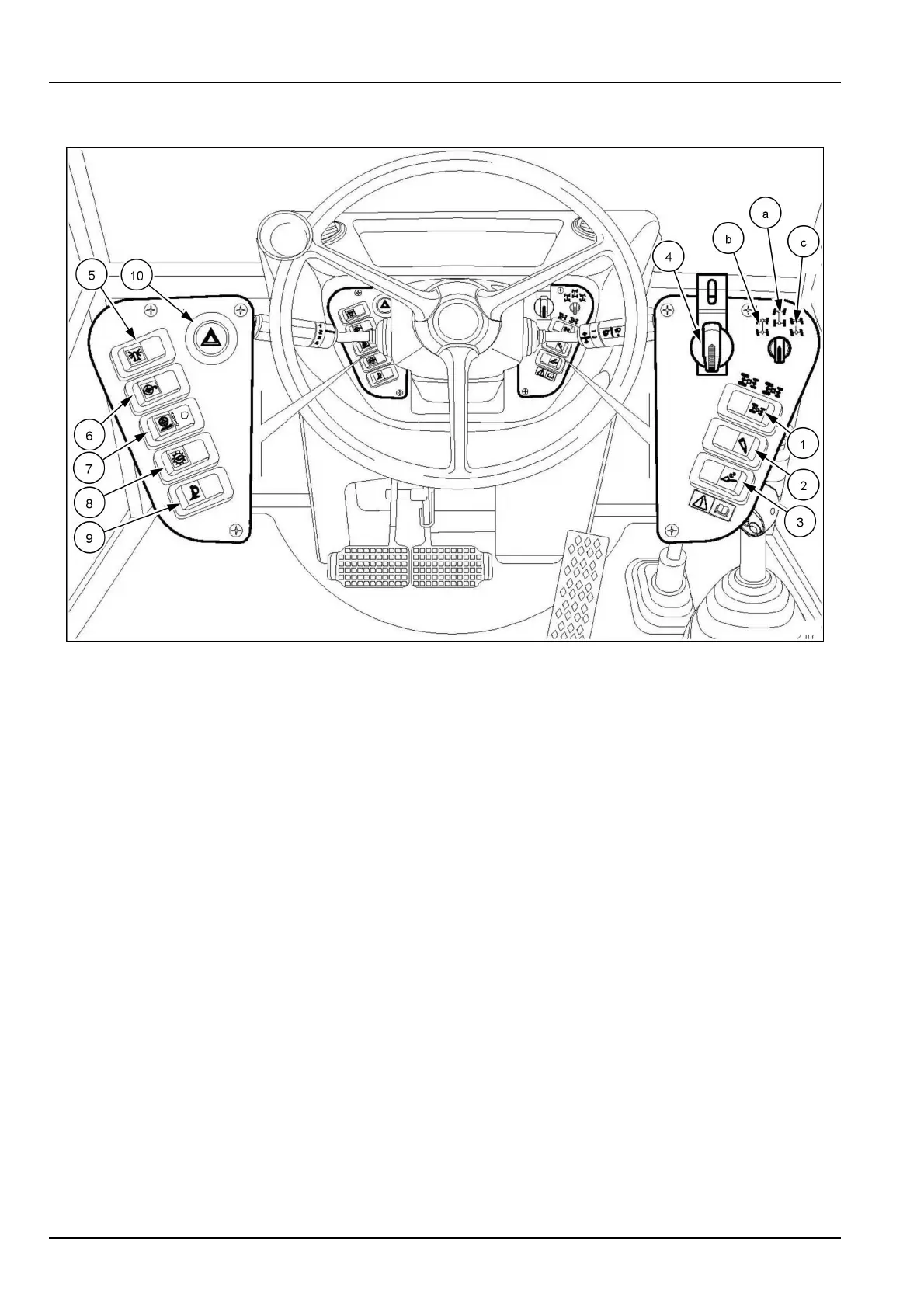

Frontcontrolpanels(695ST)
LEEN11T0011FA_21
1.2WD/4WDswitch:Thisswitchisusedtoengageor
disengagethe4WDfunction.Thisswitchhastwo
positions:
•
Firstposition(powershuttle),bypushingbuttonon
theleftrearwheeldriveandbrakingonrearwheels
(forallgears)(lampoff).
•
Firstposition(powershift),bypushingbuttonon
theleftrearwheeldrivewithbrakingonlyonrear
wheels(onlyinrstandsecondgear)(lampoff);
fourwheeldriveandbraking(inthirdandfourth
gear)(lampon).
•
Secondposition(bypushingbuttonontheright)4
wheeldriveandbrakingon4wheels(lampon).
2.Hand-heldauxiliaryhydraulicattachmentswitch
(Optional):Thisswitchhastwopositions:
•
TherstpositionisOFF.
•
ThesecondpositionisONandenablestheauxil-
iaryhydraulicattachments.
3.Loaderattachmentlockvalveswitch(Optional):
Thisswitchhastwopositions:
•
Firstposition(controllampoff)conditionwith
blockedvalves.
•
Secondposition(controllampon),bypressingthe
sidewiththesymbol,thevalvesarereleased.
4.Steermodeswitch:Thisswitchhasalockingcover
andisusedtoselect“Road”,“4wheelsteer”or
“Crabsteer”.Thisswitchhasthreepositions:
•
Positiona=Road
•
Positionb=4wheelsteer
•
Positionc=Crabsteer
NOTICE:Beforeundertakinganyroadtravel,select
“Road”modeandfoldbackthecovertolockthe
switchinthisposition.
5.Rotatingbeaconswitch:
•
Thisswitchisusedtoturntherotatingbeaconon
oroff.
6.Roll-overprotectionswitch(Optional):
•
Thisswitchisusedtoengageordisengagethe
roll-overprotectiondevice.
•
Whentheoperatorisabouttostartworkingwith
thebackhoeattachmentinconditionswhichcould
causethemachinetorollover,he/shemustacti-
vatetheroll-overprotectiondevicebypressingthe
switch(ONpositionandlampturnedon).
•
Inthiscondition,theaudiblealarmwillsoundwhen
thepressureswitch,installedonthebackhoeat-
tachmentboomcylinder,detectsapressureex-
ceedingthefollowingvalues:
–2WS:140bar(2030psi)
3-14
