3-CONTROLSANDINSTRUMENTS
CLIMATECONTROLS
Heatingandairconditioningcontrols
TheHeating,Ventilation,andAir-Conditioning(HVAC)controlsarelocatedontheright-handsideofthecab(opera-
tor’sseatinloaderattachmentposition).
Ventilationcontrols
NOTE:Yourmachinemaybeequippedwitheitheroneof
thecontrolpanels.Thefancontrolknobcirculatestheair
insidethecabanddoesnotheatorcoolthecabair.Use
theheatercontrolknoboroptionalAir-Conditioningknob
tocontrolcabtemperatures.

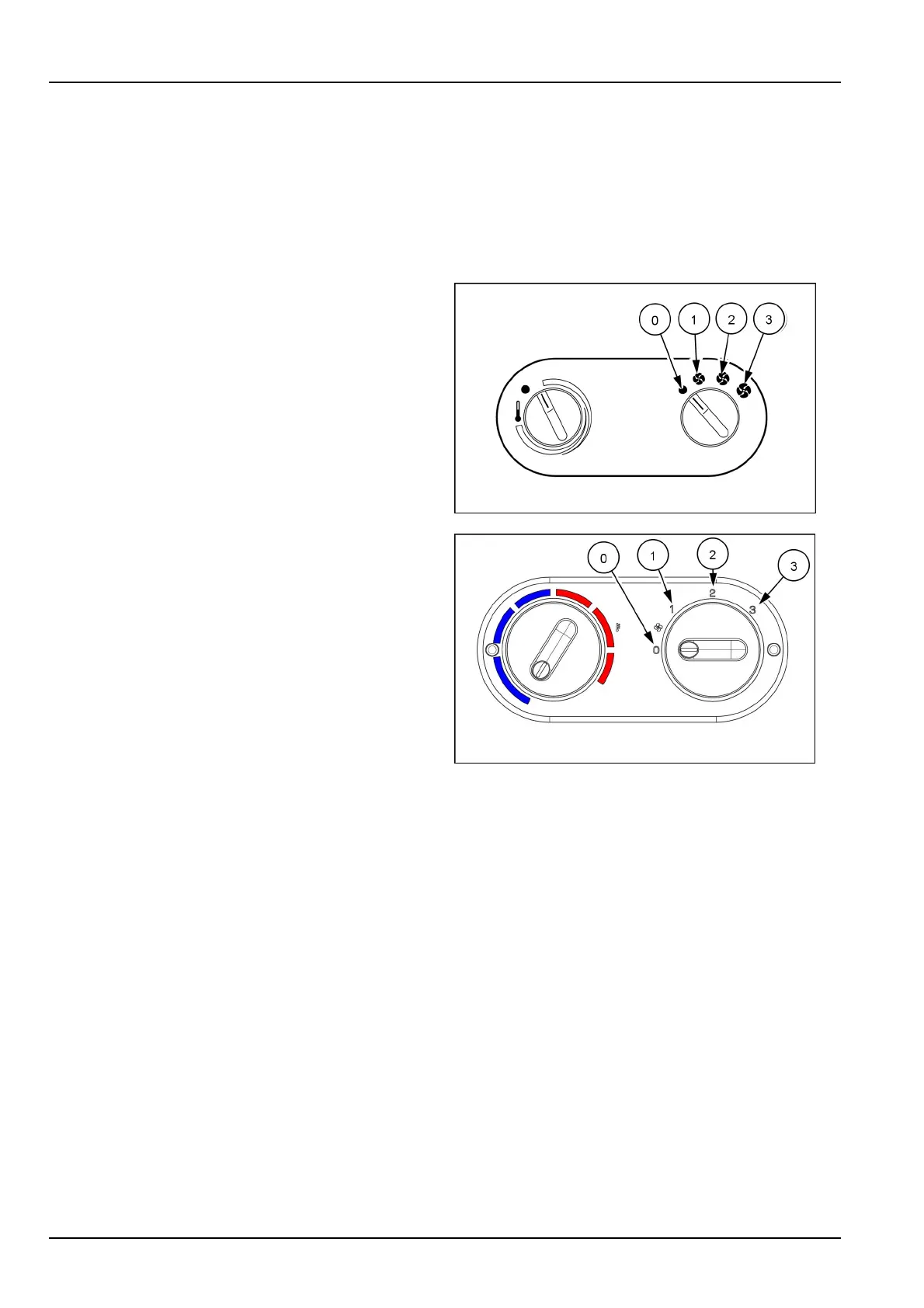

Thisfourpositionfancontrolknoballowstheoperatorto
controltheairowinsidethecab.
Position0:Off.
Position1:Lowfanspeed.
Position2:Mediumfanspeed.
Position3:Highfanspeed.
MOLI12LBB0191AB1
RAIL15TLB0536AA2
