1-GENERALINFORMATION

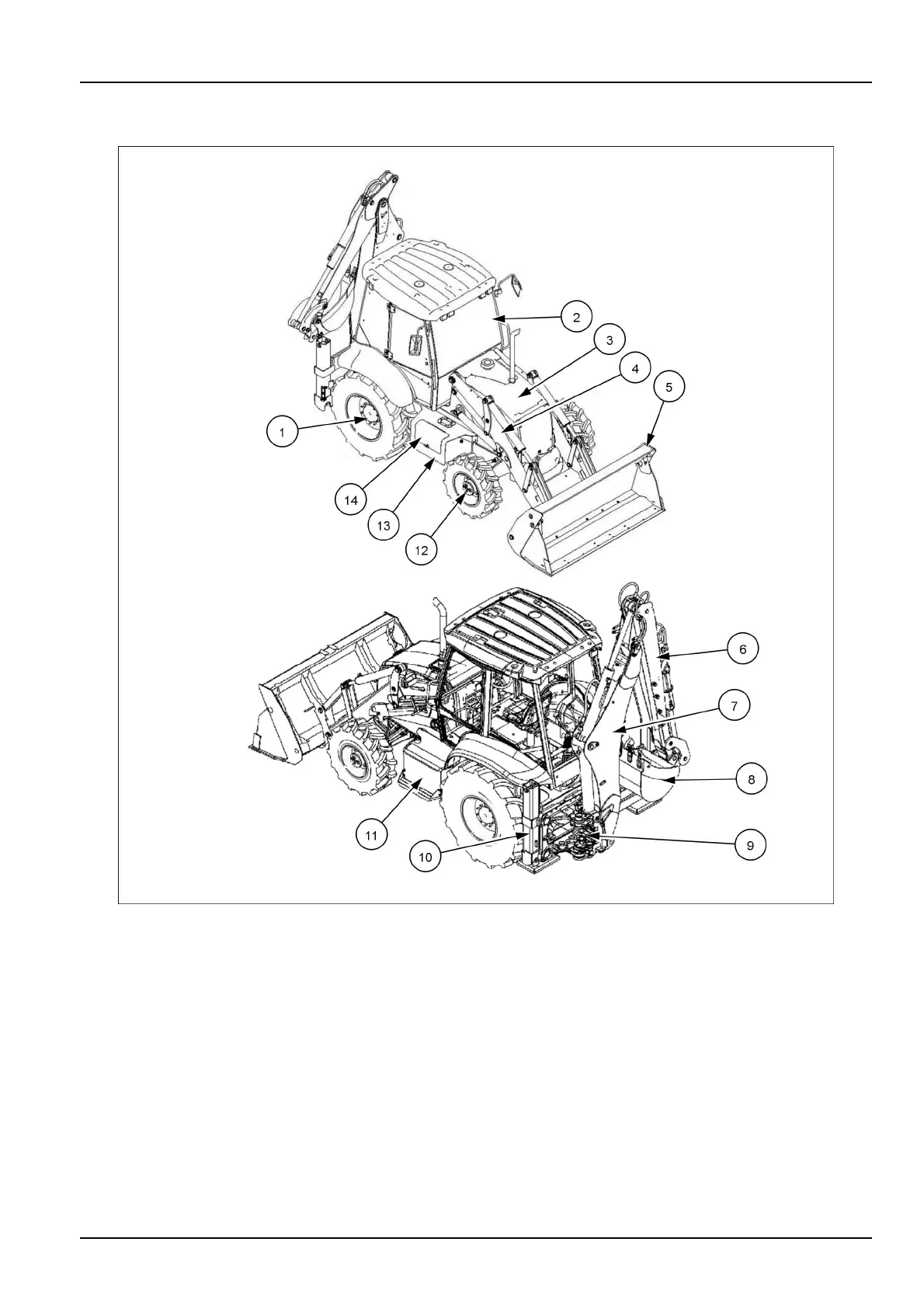

Machinecomponents

RAIL15TLB0574GA1

580Tand580STbothwithin-linecylinderboom

1.Rearaxle8.Backhoebucket

Operator’scompartment-Cab

Side-shiftcarriage

3.Engineguard10.

Stabilizers

4.Loaderarm11.Fueltank

Loaderbucket12.Frontaxle

StandarddipperorInnerslidingdipper

13.Hydraulicoiltank

Boom(in-linecylinder)

14.Batterybox

NOTE:Straightloaderarmoptionisavailable.

1-13
