Case 590ST - Parking Brake Adjustment

To Next Page

To Previous Page

7-MAINTENANCE

Parkingbrake

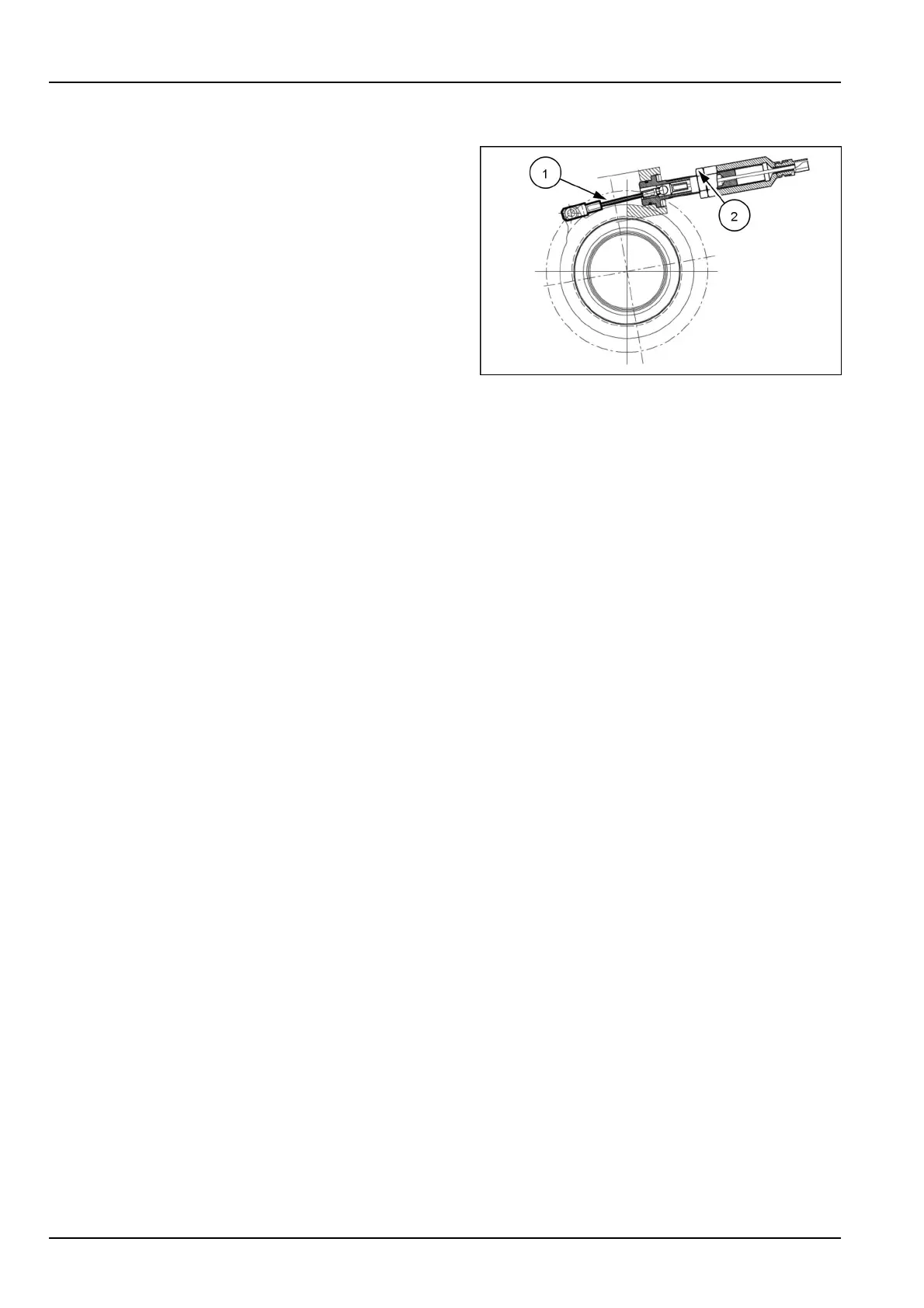

1.Thebrakecablemovement(1)canbeadjustedbyhan-

dlingonthelocknut(2).

2.Adjusttheparkingbrakesoastoholdmachineinthird

gearforwardpositionatenginespeedof1700rpmby

liftingthebrakeleveruptothe4

ratchet.

LEEN12T0484AA1

7-112
