Case 590ST - Brake Pedal Lever

To Next Page

To Previous Page

7-MAINTENANCE

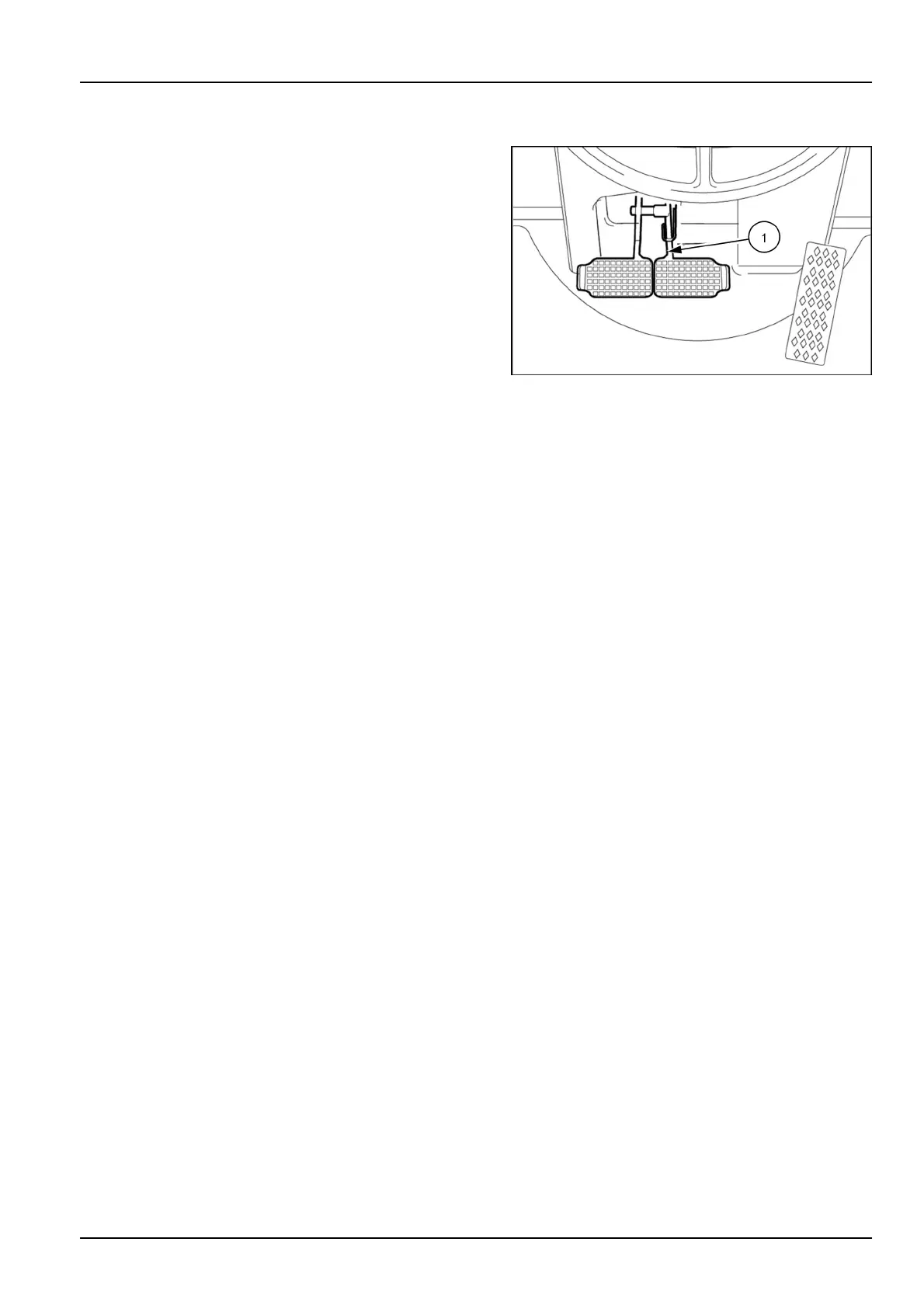

Brakepedallever-Greasing

1.Greasethebrakepedallevers(1)byintroducingthe

newcleangreaseandexpellingtheexhaustgrease

untilthenewgreasestartscomingout.

2.Cleanallthegreasethatcomesoutwithacloth.

LEEN11T0411AA_11

Greasespecications

UseCASEAKCELAMOLYGREASE(MAT3550)or

agreasewhichmeetsthefollowingstandard:

•

NLGI2

NOTE:TUTELAMULTI-PURPOSEEPGREASE251H,GR-9

canalsobeused.

7-89
