Case 590ST - Side Instrument (580 ST - 590 ST - 695 ST)

3-CONTROLSANDINSTRUMENTS

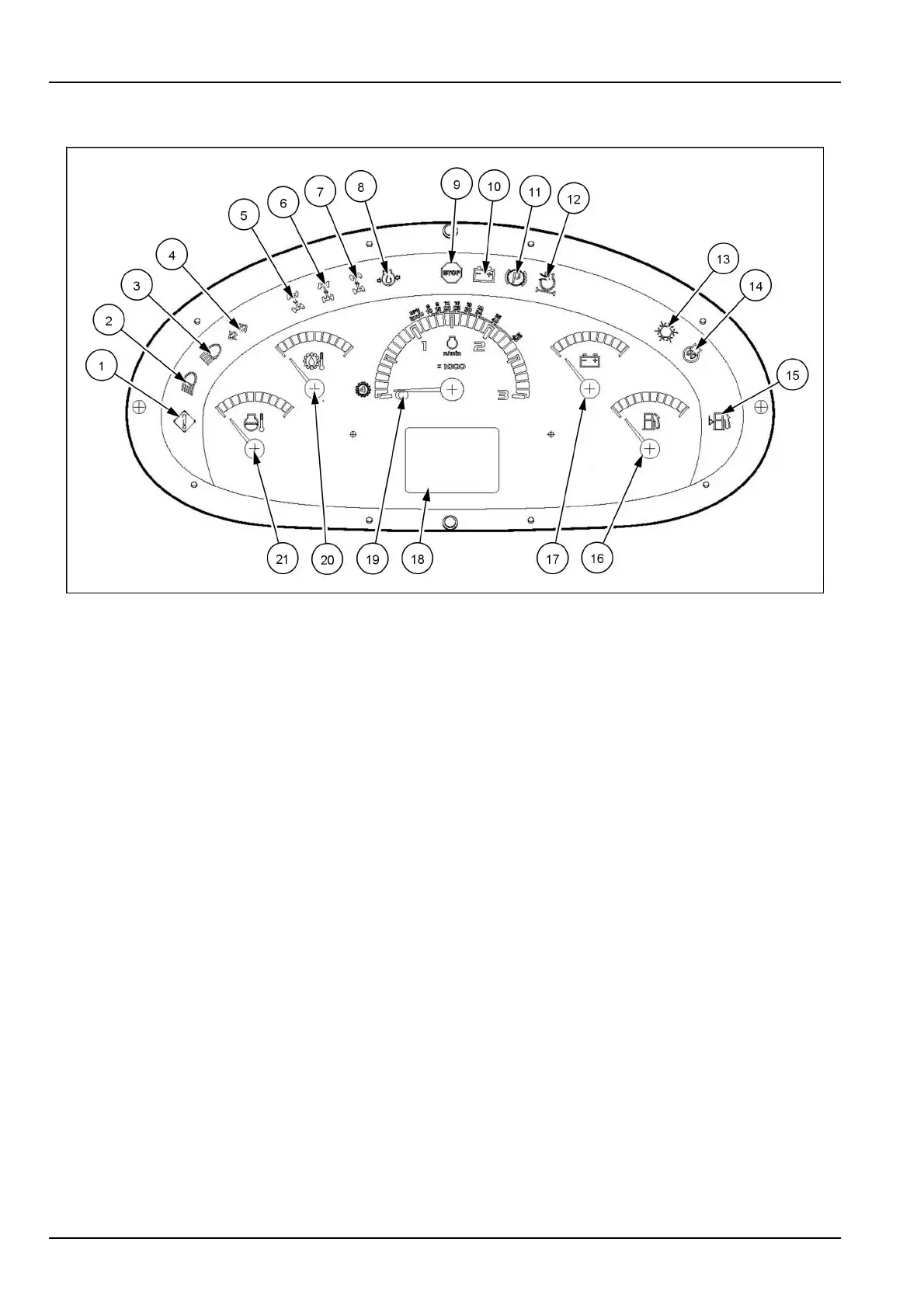

Sideinstrument(580ST-590ST-695ST)
LEEN11T0020FA1
1.Cautionmasterlamp
•
Thislampsignalsanotcriticalcaution.When
thiscautionisactive,itisnecessarytochange
theoperatingmode,planadowntimetocarryout
maintenanceor,ifthefaultcontinues,consultyour
dealer.Thiswarninglampturnsonatthesame
timeoflamps(8),(10),(12)and(14)thatindicates
afaultonthemachine.
2.Sidelightandlowbeamindicatorlamp
•
Thisindicatorlampturnsonwhenthesidelights
orthelowbeamsareon.
3.Mainbeamindicatorlamp
•
Thisindicatorlampturnsonwhenthemainbeams
areon.
4.Directionindicatorlamp
•
Thislampturnsonwhenthedirectionindicators
areworking.
5.Fourwheelsteer(4WS)indicatorlamp
•
Thislampturnsonwhen4wheelsteermodeis
selectedandphased.
6.Roadsteer(2WS)indicatorswitch
•
Thislampturnsonwhen2wheelsteermodeis
selectedandphased.
7.Crabsteerindicatorlamp
•
Thislampturnsonwhencrabsteermodeisse-
lectedandphased.
NOTE:Ifthethreelamps(5),(6)and(7)turnonatonce,thisindicatesthatthereisaproblemwiththeelectrical
circuit.ConsultyourDealer.
8.Engineoilpressurewarninglamp
•
Thiswarninglampturnsonandtheaudiblewarn-
ingdevicesoundswhentheengineoilpressureis
toolow.
9.Stopmasterlamp
•
Thestopmasterlampsignalsacriticalcaution.
Whenthislampturnson,stopthemachineimme-
diatelyandshutofftheengine.Ifthisisnotthe
case,themachinecangetdamagedoraccidents
mayoccur.
10.Batterychargewarninglamp
•
Thiswarninglampturnsonwhenthealternator/fan
beltisbrokenorwhenthealternatorisnotcharging
thebattery.
11.Parkingbrakeindicatorlamp
•
Thisindicatorlampturnsonwhentheparking
brakeleverisintheraisedposition(wheels
braked).
3-36
