3-CONTROLSANDINSTRUMENTS

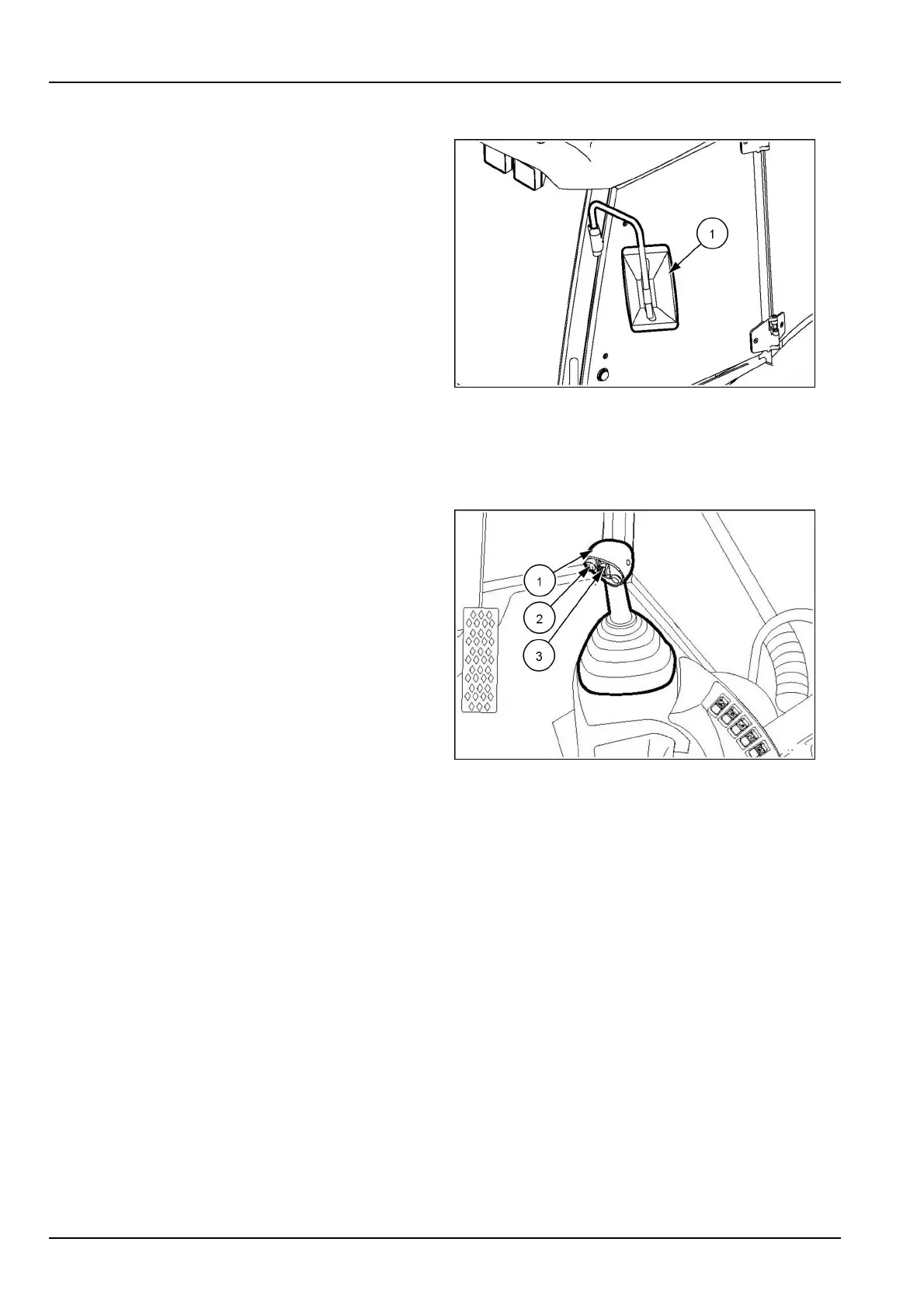

Rearviewmirrors

Makesuretheright-handandleft-handrearviewmirrors

(1)arecorrectlyadjustedbeforeundertakinganytravel.

LEEN11T0080AA18

LOADERATTACHMENTCONTROLS

Loaderattachmentcontrollever

1.Loaderattachmentcontrollever

2.Transmissiondisconnectbutton

3.Hornbutton

LEEN11T0051AA1

3-48
