7-MAINTENANCE

Airlterelements-replacement

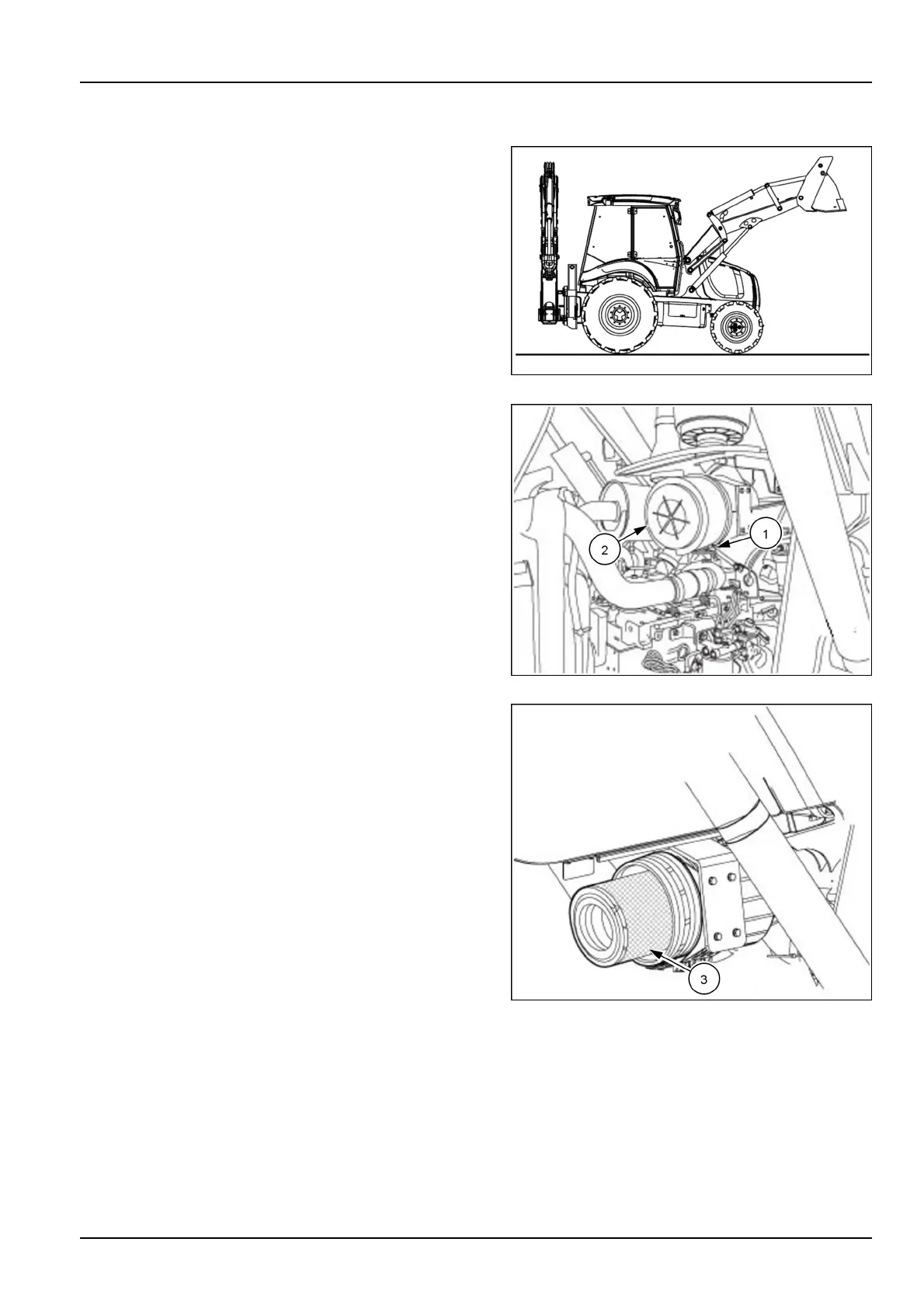

1.Movethemachinetoalevelandrmground.

2.Raisetheloaderattachmentandinstallthesafetysup-

portstrut.

3.Placethebackhoeattachmentintheroadtravelposi-

tion.

4.Placethedirection-of-travelleverandgearshiftleverin

neutralposition.

5.Immobilizethemachinebymeansoftheparkingbrake.

6.Stoptheengineandremovethestarterswitchkey.

7.Openandraisetheengineguard.

LEEN11T0354AA1

8.Unhooktheclips(1)aroundperimeterofltercover(2)

andremovetheltercover(2).

LEEN12T0878FA2

9.Extractthemainlterelement(3).

LEEN12T0879FA3

7-75
