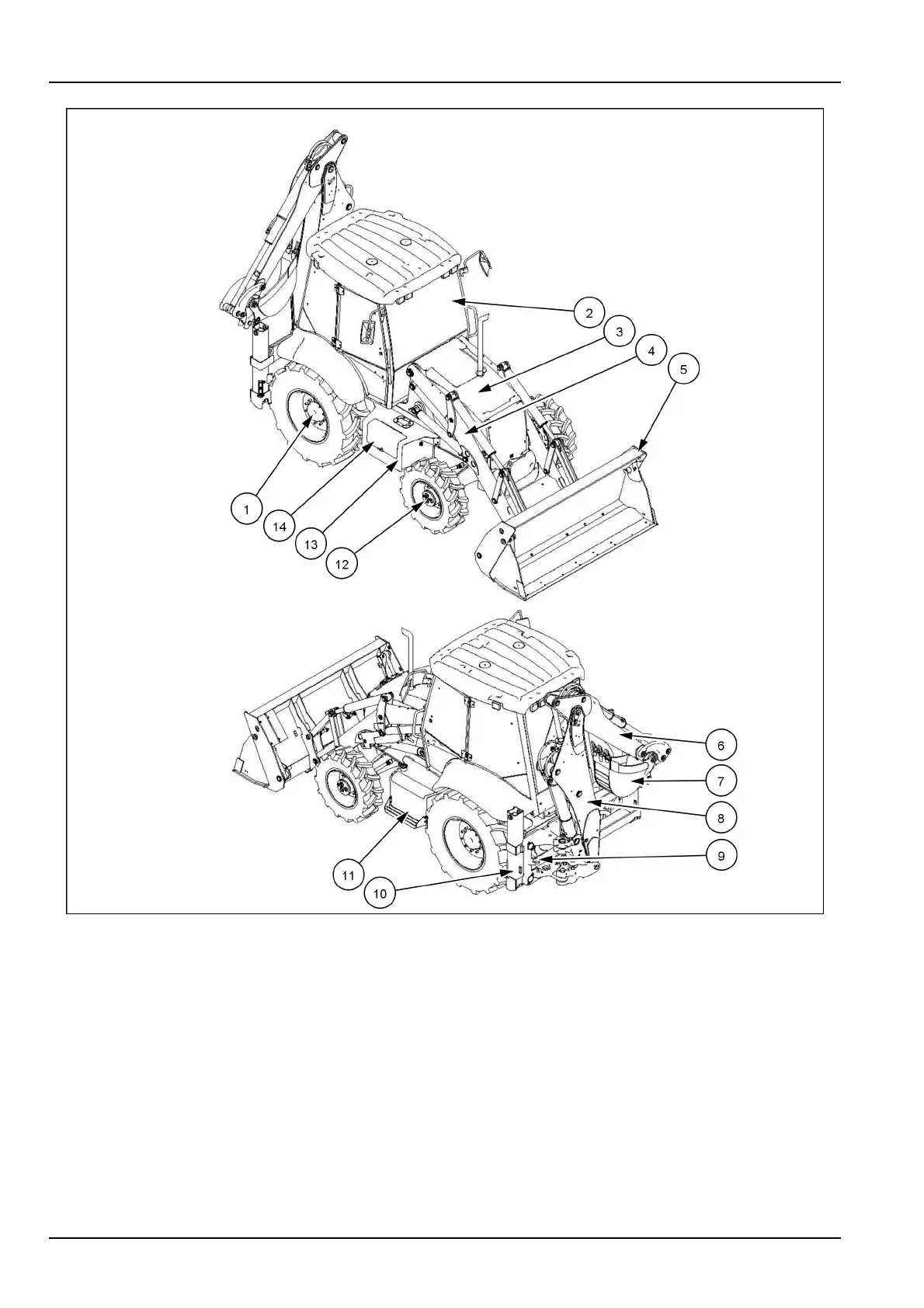

580T,580ST ,and590STallwithoverlappingcylinderboom
1.Rearaxle8.
Boom(overlappingcylinder)
2.
Operator’scompartment-Cab
9.
Side-shiftcarriage
3.Engineguard10.
Stabilizers
4.Loaderarm11.Fueltank
5.
Loaderbucket12.Frontaxle
6.
StandarddipperorOuterslidingdipper
13.Hydraulicoiltank
7.
Backhoebucket14.Batterybox
NOTE:Straightloaderarmoptionisavailable.
