1-GENERALINFORMATION

LEEN11T0009FA_33

695ST

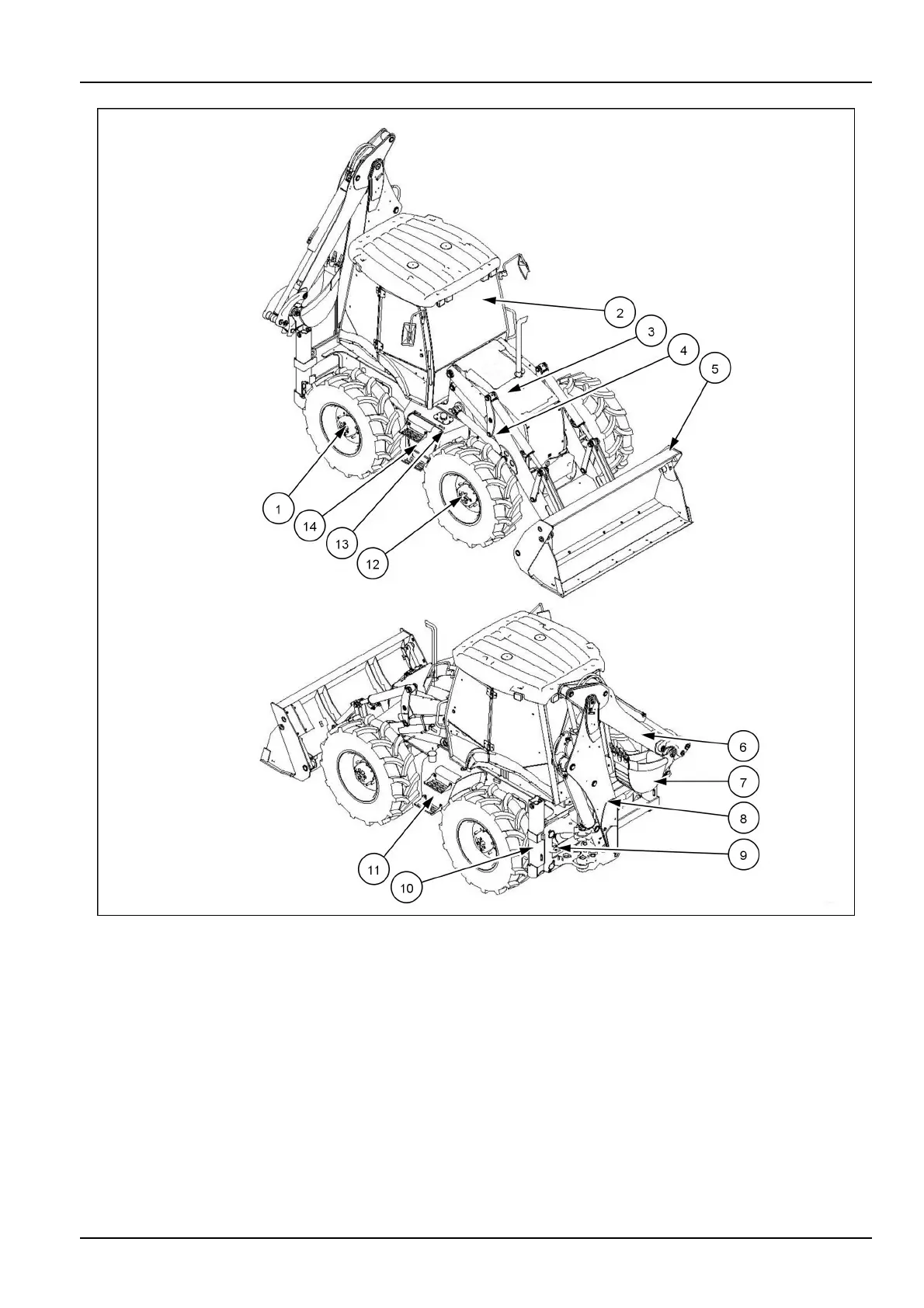

Rearaxle–Four-WheelSteer(4WS)

Boom(overlappingcylinder)

Operator’scompartment-Cab

Side-shiftcarriage

3.Engineguard10.

Stabilizers

4.Loaderarm11.Fueltank

Loaderbucket12.Frontaxle

StandarddipperorOuterslidingdipper

13.Hydraulicoiltank

Backhoebucket14.Batterybox

NOTE:Straightloaderarmoptionisavailable.
