3-CONTROLSANDINSTRUMENTS

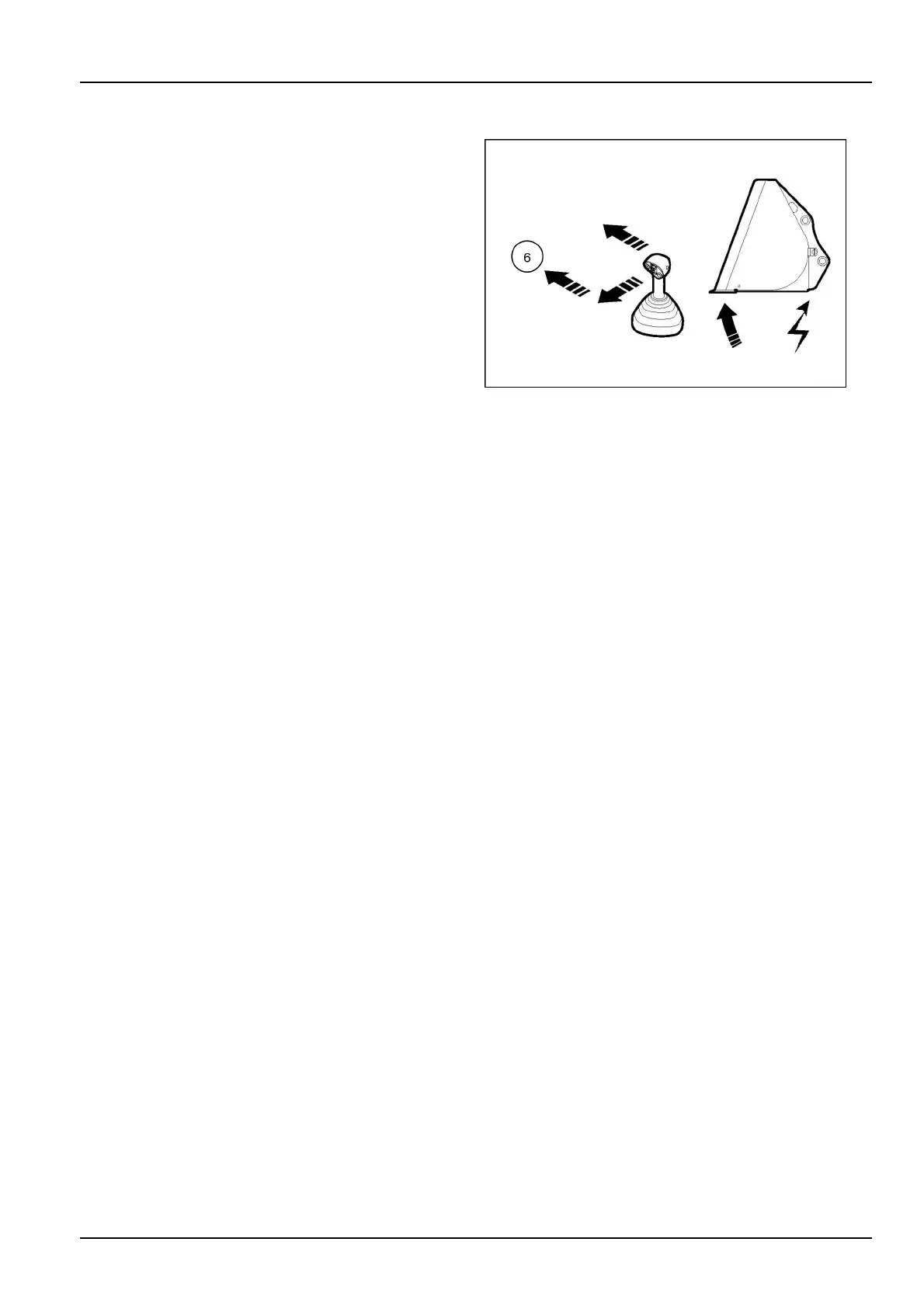

Automaticreturntoloaderbucketlling

Withtheleverinposition(6),theattachmentlowersand,

simultaneously,thebucketplacesitselftothediggingpo-

sition.

NOTE:Itispossibletoadjustthetiltangleforbucketlling.

LEEN11T0098AA7

3-53
