Removebackhoefromtransportposition
(mechanical)
1.Startthemachine.
2.PlacethedirectioncontrolleverinNEUTRALposi-
tion.
3.Ifapplicable,placegearshiftcontrolleverintheNEU-
TRALposition.
4.Turntheseatintothebackhoeoperationposition.
5.Lowerthestabilizerstothegroundsothattherear
tiresarejustofftheground.
6.Placethebackhoeattachmentsideshiftcarriagelock
switch(1)intheOFFposition.
7.Movetheboomallthewaytowardsyoutorelieve
pressureontheboomlock(3).
8.Pressthebuttononthebackhoetransportcontrol
lever(2)andmoveforwardtodisengagetheboom.
9.Ifapplicable,removetheextendabledipperlockpin
andplaceitinthestorageposition.

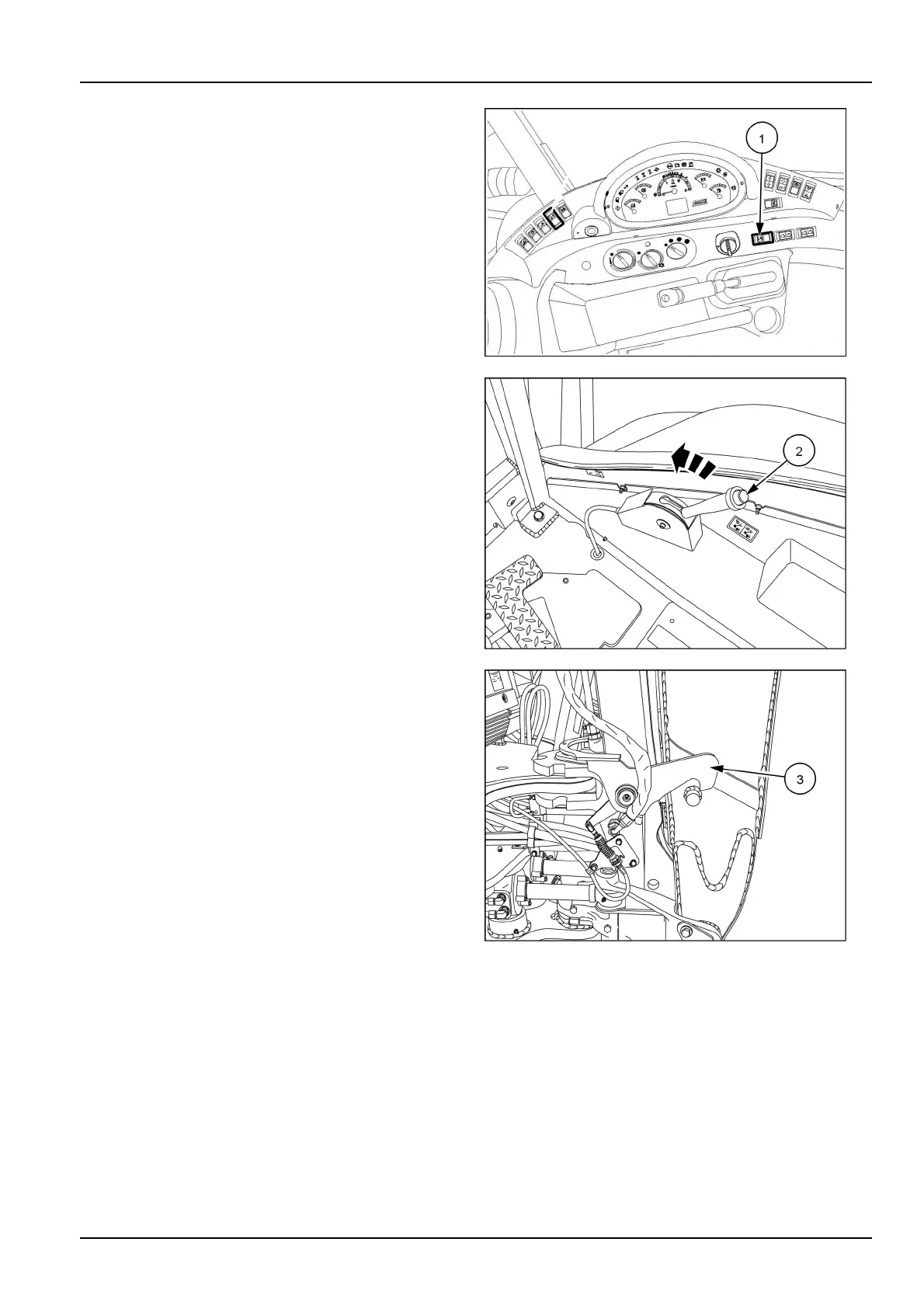

LEEN11T0311AA1
