3-CONTROLSANDINSTRUMENTS

LEEN11T0003HA4

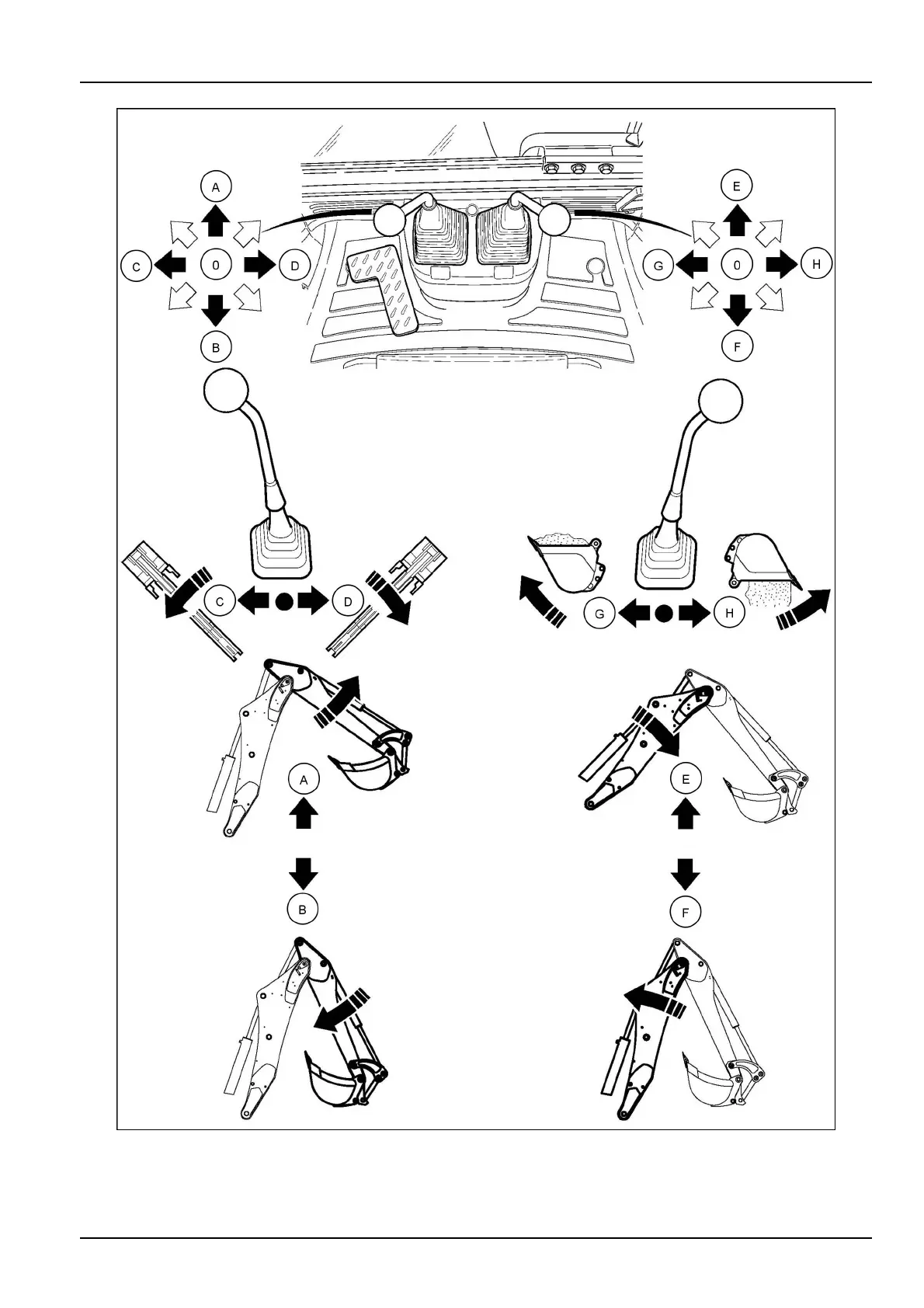

NOTE:Thefunctionsofthecontrolsarethesameforboththeoverlappingcylinderboomandthein-linecylinder

boom.

3-63
