3-CONTROLSANDINSTRUMENTS
Backhoeattachmenthydrauliccontrols
Standardconguration

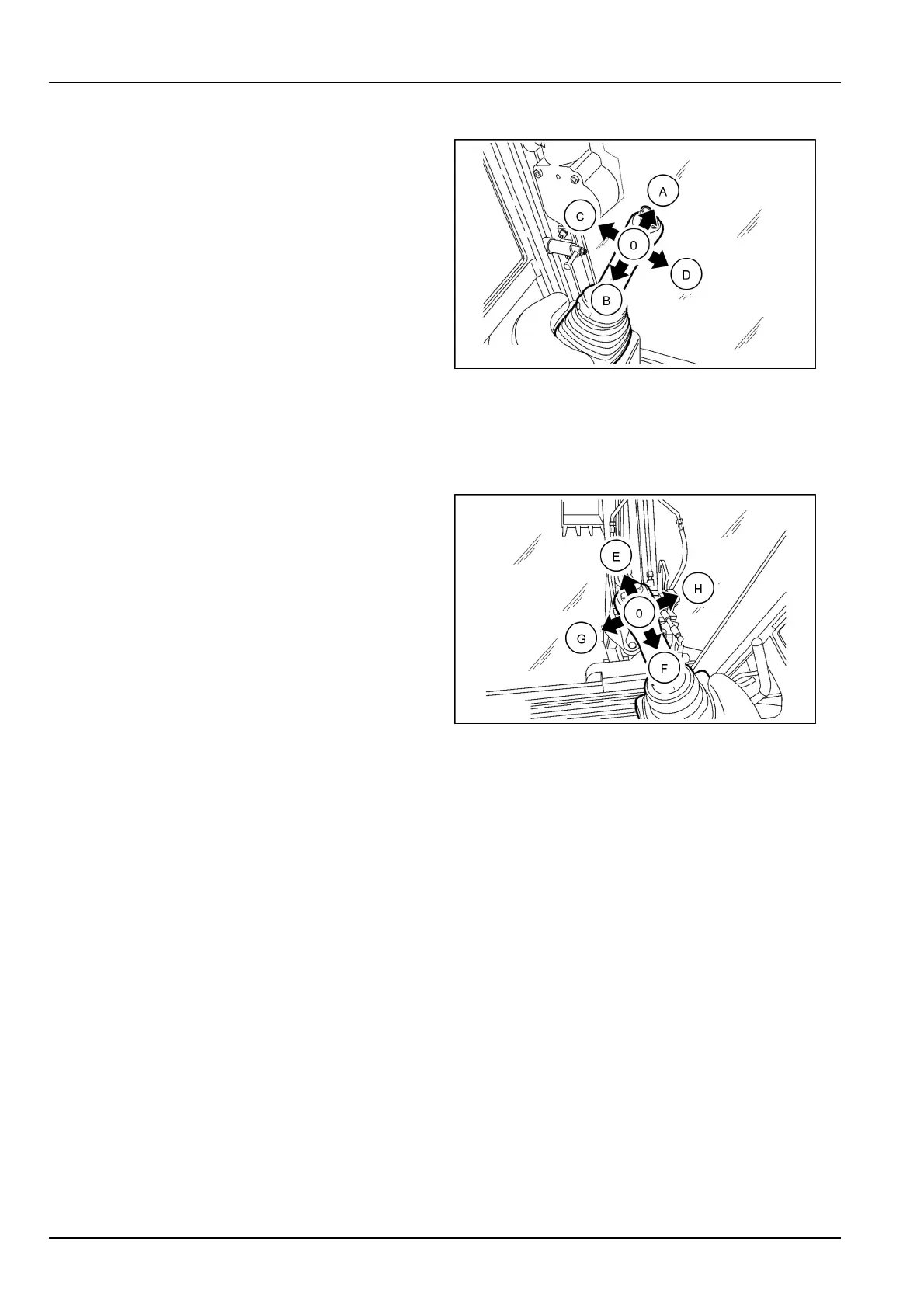

Backhoeboomandbackhoeattachmentswingleft-hand
hydrauliccontrollever
Thishydrauliccontrolleverhasvepositions:
Position0:Neutral/hold.Thispositionenablestheattach-
mentmovementtobestopped.Assoonasthehydraulic
controlleverisreleased,itautomaticallyreturnstothe
neutralposition0andtheattachmentremainsinthepo-
sitionwhereitwaswhenmovementstopped.
PositionA:Theboomlowers.
PositionB:Theboomrises.
PositionC:Thebackhoeattachmentswingstotheleft.
PositionD:Thebackhoeattachmentswingstotheright.
MOLI12LBB0181AB4
Backhoedipperandbackhoebucketright-handhydraulic
controllever
Thishydrauliccontrolleverhasvepositions:
Position0:Neutral/hold.Thispositionenablestheattach-
mentmovementtobestopped.Assoonasthehydraulic
controlleverisreleased,itautomaticallyreturnstothe
neutralposition0andtheattachmentremainsinthepo-
sitionwhereitwaswhenmovementstopped.
PositionE:Thebackhoedipperextends.
PositionF:Thebackhoedipperretracts.
PositionG:Thebackhoebucketcloses.
PositionH:Thebackhoebucketopens.
MOLI12LBB0182AB5
3-72
