Case 590ST - Page 136

3-CONTROLSANDINSTRUMENTS

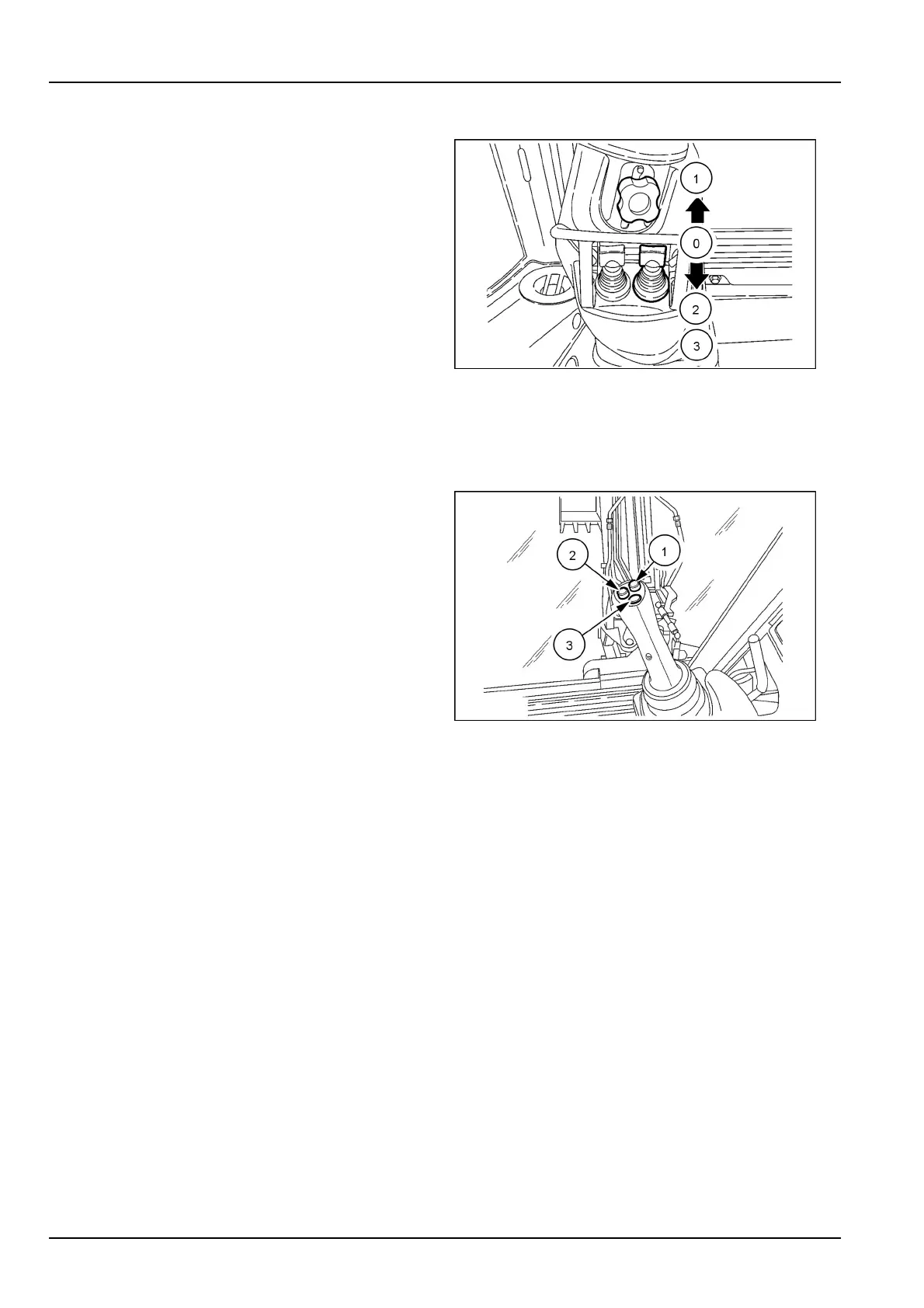

Auto-upfeature(Centerpivotversion)(Optional)
Position3whentheleversaremomentarilypulledback
tothispositionandthenreleased,theyreturntotheneu-
tralpositionandthestabilizersautomaticallyrisetoroad
travelposition,therebyleavingyourhandfreeforother
duties.T ostoptheautomaticriseatanytime,pushor
pullthelevers;theriseofthestabilizersstops.
NOTE:themachinesnotprovidedwiththeoptional
auto-upfeaturestillhavetherelevantdetentposition,but
thisdoesnotaffectthestabilizeroperationinanyway.
NOTICE:Beforemachinetravelorbeforeusingthe
loaderattachment,makesurethestabilizersarecom-
pletelyraised.
NOTICE:Duringroadtravel,thestabilizersmustbecom-
pletelyraisedandimmobilizedbymeansofthepinspro-
videdforthatpurpose.
MOLI12LBB0185AB8
Telescopicdippercontrols(Iftted)
Pressandholddowntheright-handbutton(1)toextend
thetelescopicdipper.Assoonasthebuttonisreleased
thedipperstopsandremainsinthepositionitoccupied
whenthebuttonwasreleased.
Pressandholddowntheleft-handbutton(2)toretractthe
telescopicdipper.Assoonasthebuttonisreleasedthe
dipperstopsandremainsinthepositionitoccupiedwhen
thebuttonwasreleased.
Bypressingbutton(3),itispossibletosettheenginerpm
toidlerundisablingacceleratorhandleandaccelerator
pedal.Bypressingagainbutton(3)theenginerpmare
restoredandtheacceleratorhandleandacceleratorpedal
aswell.
Beforeusingthesecontrols,makesurethetelescopicdip-
perismechanicallyunlocked.
NOTE:Operatingthebackhoeattachmentcontrollevers
andthesecontrolssimultaneouslywillenablenumerous
possibilitiesofprogressivefunctioning.
MOLI12LBB0186AB9
3-74
