5-TRANSPORTOPERATIONS

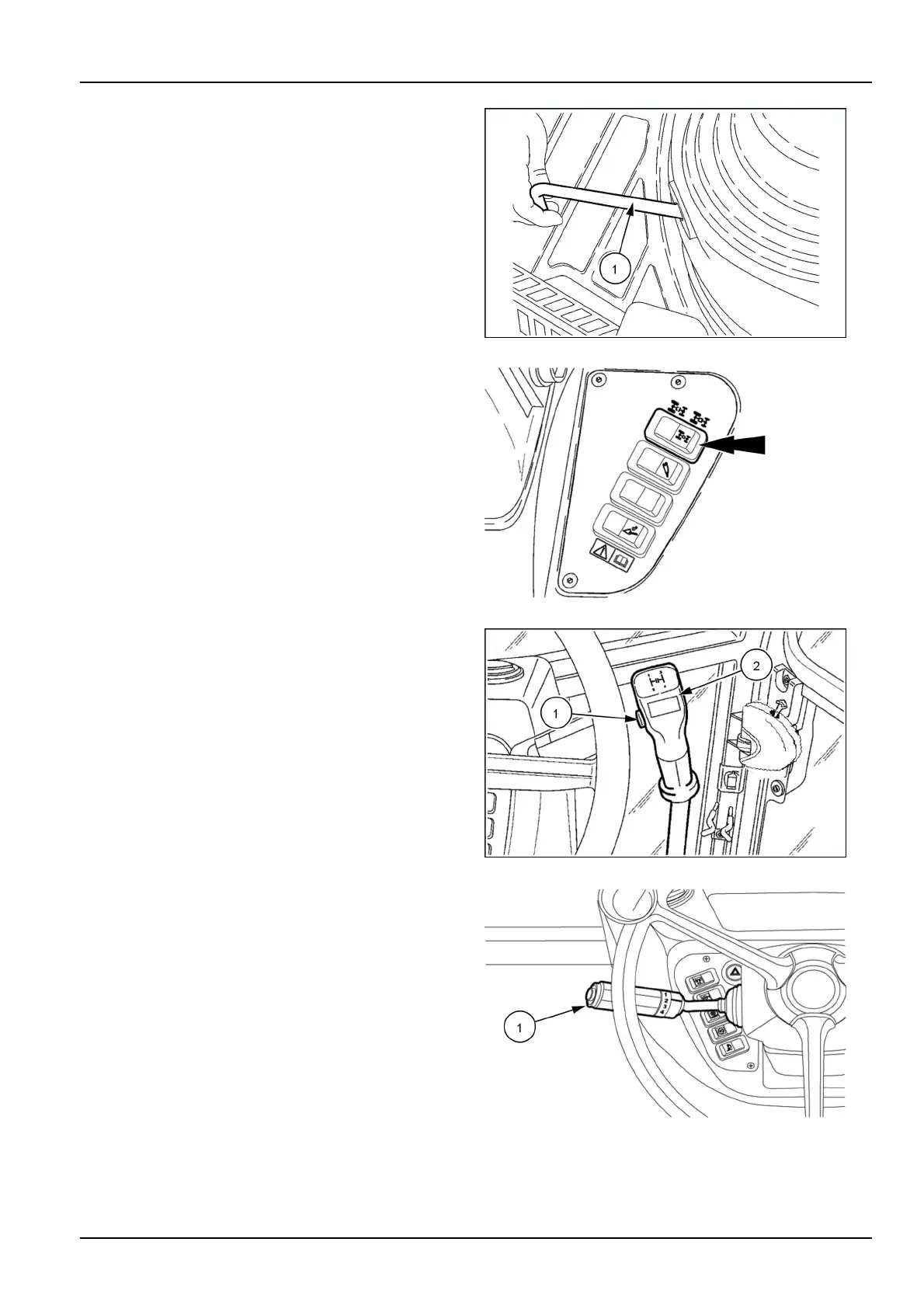

27.(Specictocertaincountries)locktheloaderattach-

mentcontrolswiththerelevantlockingpin(1).

MOLI12LBB0234AB16

28.Ifapplicable,disengagetheFour-WheelDrive

(4WD).

LEEN11T0134AA_117

29.MachineswithPowershuttletransmission.

A.Pressthetransmissiondisconnectbutton(1)andthen

placethegearshiftlever(2)inrstgear.

B.Releasethebutton(1).

LEEN11T0135AA_218

29.MachineswithPowershifttransmissions.

A.Placethegearshiftlever(1)inrstgear.

LEEN11T0136AA19

5-9
