6-WORKINGOPERATIONS

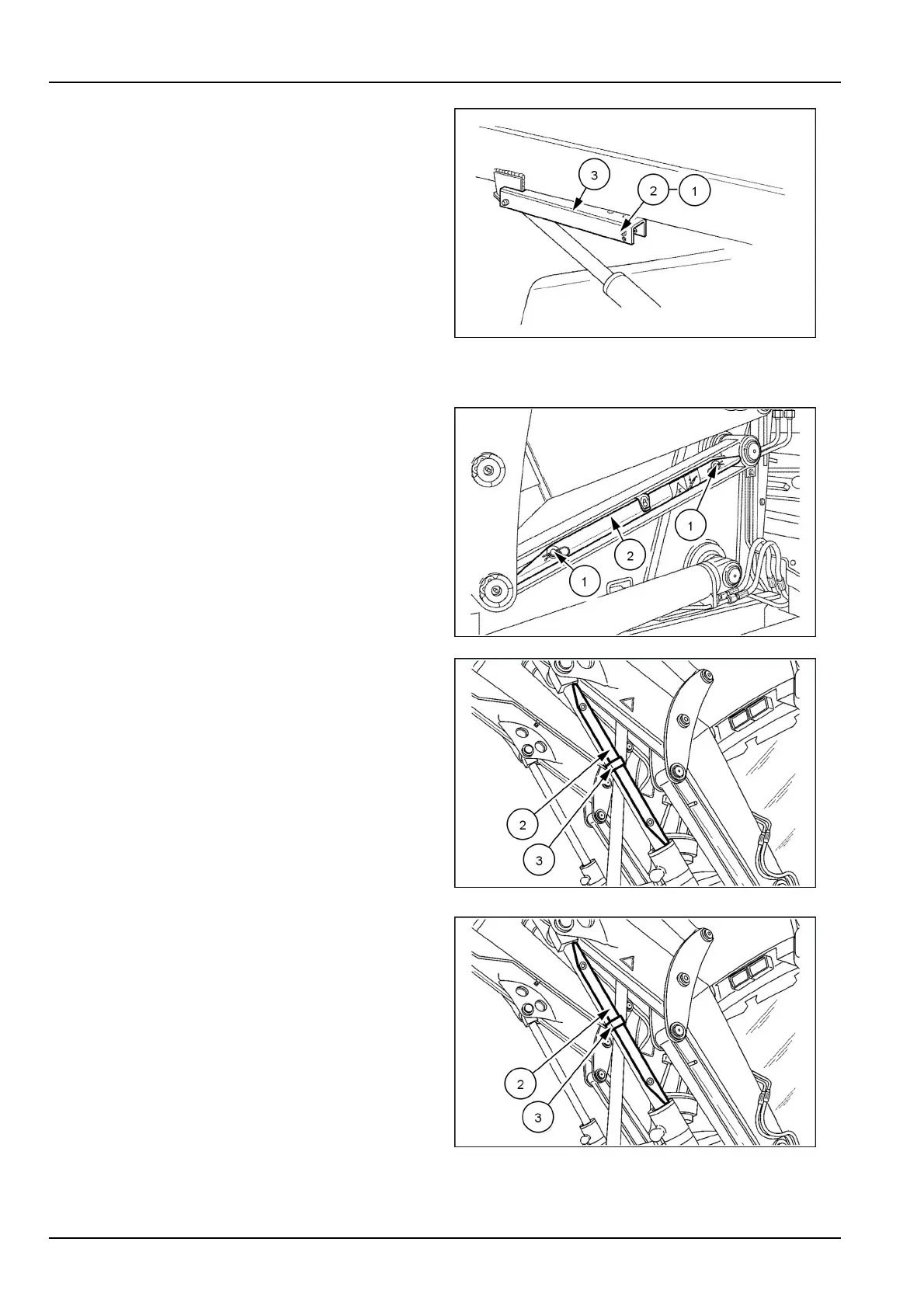

4.Removethestrut(3)fromtheattachmentandinstall
thepin(1)andthesplitpin(2)backintotheholesin
thestrut.
5.Starttheengineandlowertheloaderattachment.
MOLI12LBB0263AB4
Four-WheelSteer(4WS)machines(695ST)
Engagetheloaderarmsupportstrut:
1.Emptytheloaderbucket.
2.Raisetheloaderliftarmstothemaximumheight.
3.Stoptheengineandremovethestarterswitchkey.
4.Removethesplitpins(1)andthesafetystrut(2)from
thestoragepositionontheloaderarm.Putthesplit
pinsbackinplace.
5.Placethestrut(2)onthecylinderrodandfastenitby
meansofthefasteningip(3).
6.Lowertheloaderattachmentuntilthesafetystrutis
rmlyagainstthecylinder.
MOLI12LBB0264AB5
MOLI12LBB0265AB6
Disengagetheloaderarmsupportstrut:
1.Raisetheloaderliftarmstothemaximumheight.
2.Stoptheengineandremovethestarterswitchkey.
3.Removetheip(3)andthestrut(2)fromthecylinder
rod.
MOLI12LBB0265AB7
6-12
