6-WORKINGOPERATIONS

Whenusingthetelescopicdipper(iftted)makesurethat

thepinisplacedinunlockingposition.

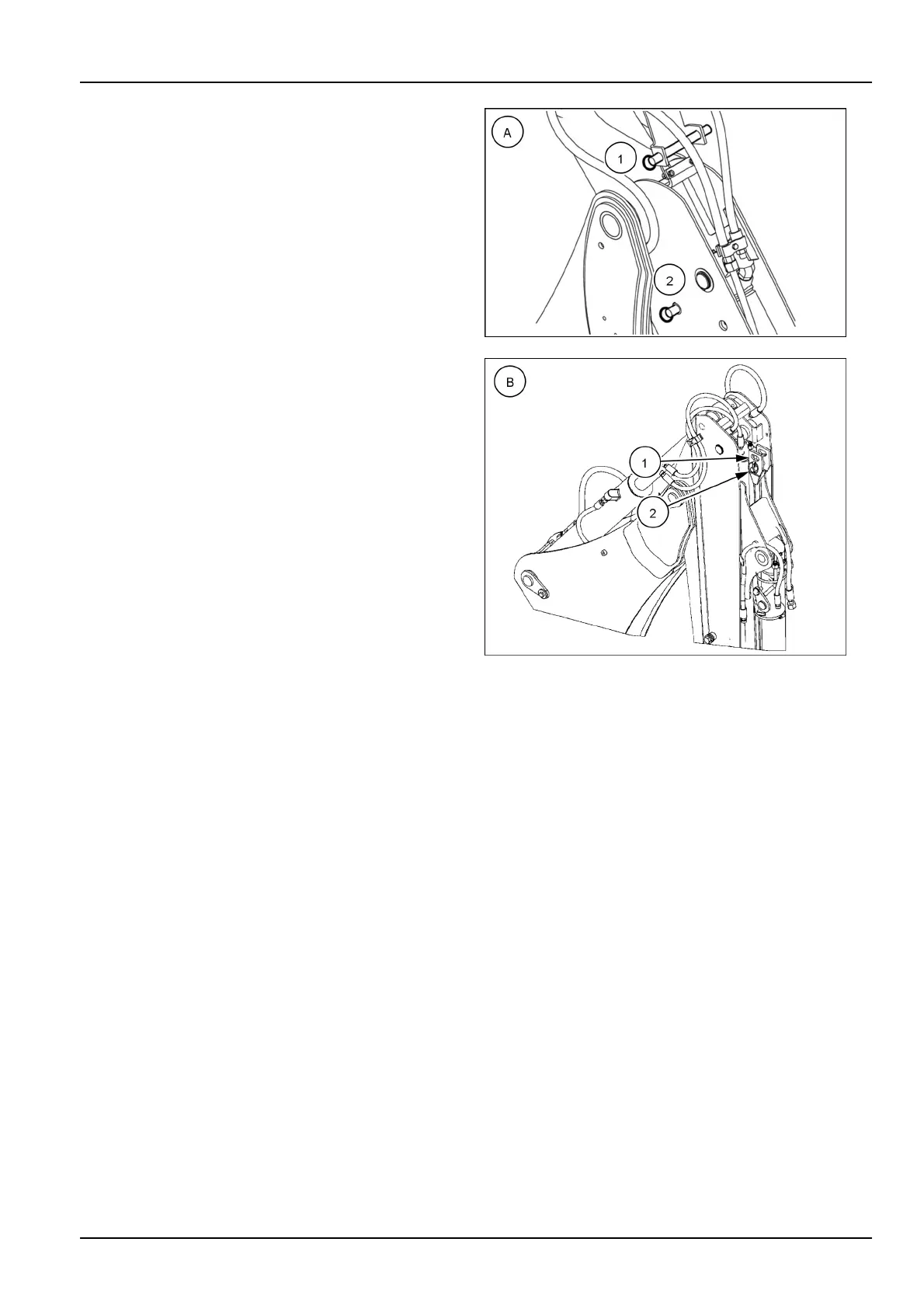

NOTE:FigureAappliestomodels580T/580STwithover-

lappingcylinderboom,590ST,and695ST.FigureBap-

pliestomodels580T/580STwithin-linecylinderboom.

•

Unlockedposition(1)

•

Lockedposition(2)

NOTICE:Beforestartingthework,checkthatallbackhoe

attachmentcontrolsoperatecorrectly.

LEEN11T0174AA8

RAIL15TLB0545BA9

6-25
