6-WORKINGOPERATIONS
Hydraulichandling

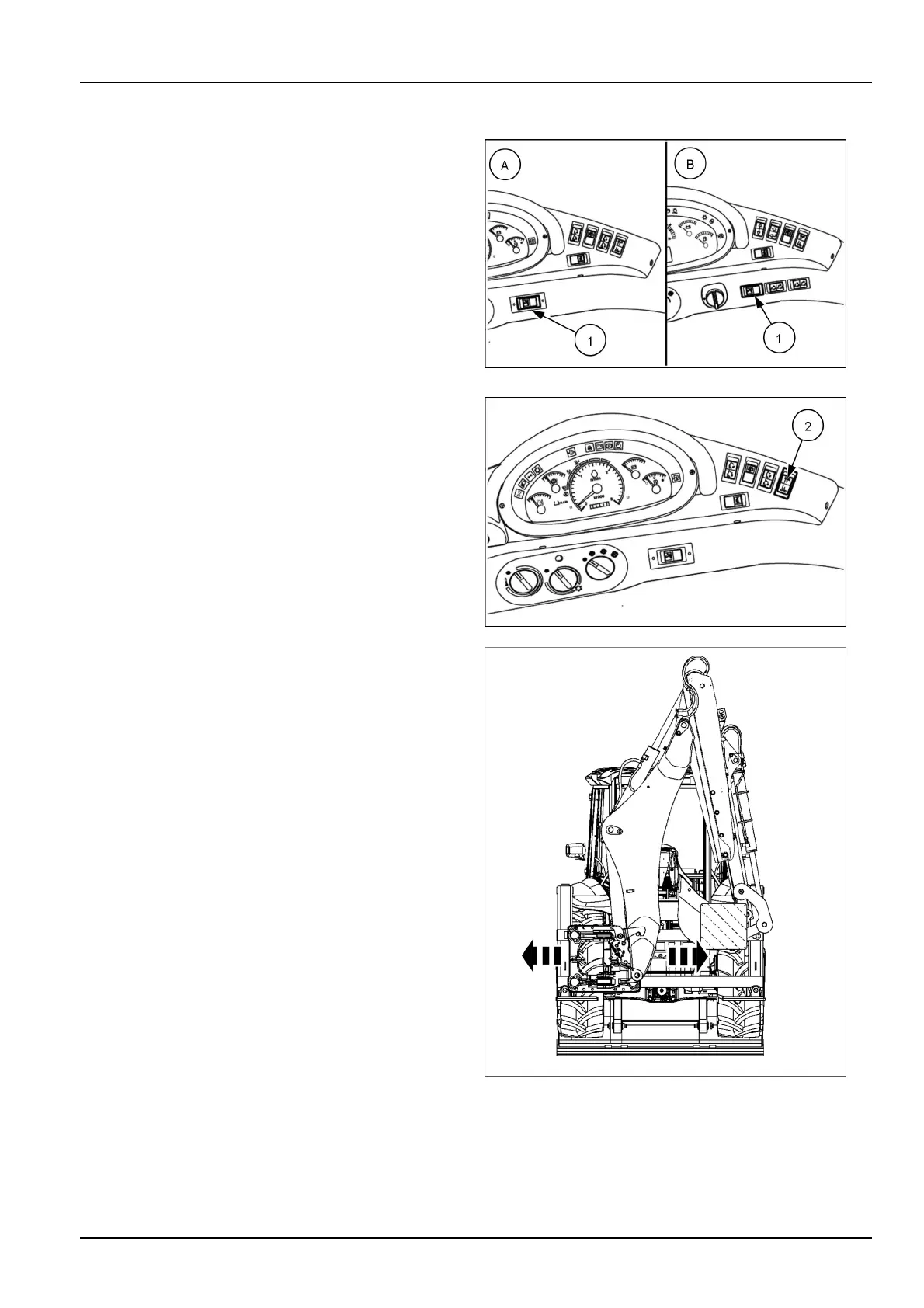

1.Pressthebackhoeattachmentsideshiftunlocking
switch(1).Theswitchlampturnson(ONposition).
A.Versionwithmechanicalengines
B.Versionwithelectronicengines
LEEN11T0175AA3
2.Forhandling,press:
•
thebutton(2)sidewiththesymboltomovetheback-
hoeattachmenttotheleft-handsideofthetrack.
•
thebutton(2)sidewithoutsymboltomovetheback-
hoeattachmenttotheright-handsideofthetrack.
3.Pressthebackhoeattachmentsideshiftlockingswitch
(1).Theswitchlampturnsoff(OFFposition).
NOTICE:Exceptwhenthesideshiftcarriageisbeing
moved,theswitch(1)mustalwaysbeintheOFFposition.
Neverusethebackhoeattachmentwiththesideshiftcar-
riageunlocked.
NOTE:Tracksidesarereferredtothetraveldirectionof
themachine.
LEEN11T0178AA4
RAIL15TLB0544BA5
