7-MAINTENANCE

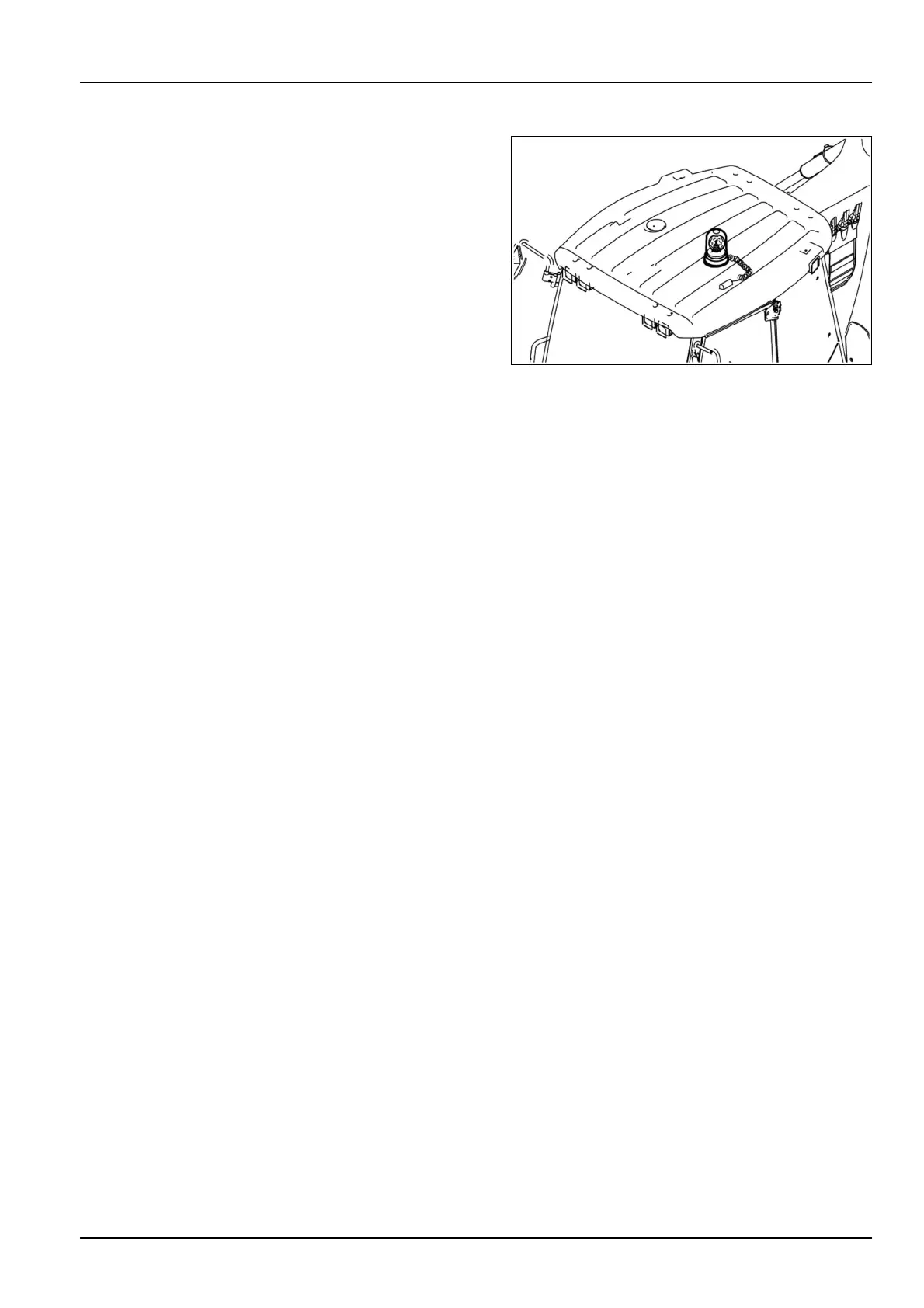

Rotatingbeacon(Optional)

1.Unscrewthelens.

2.Removethebulbandinstallabulbofthesamewattage

55W.

3.Installthelens.

LEEN12T0494AA7

7-117
