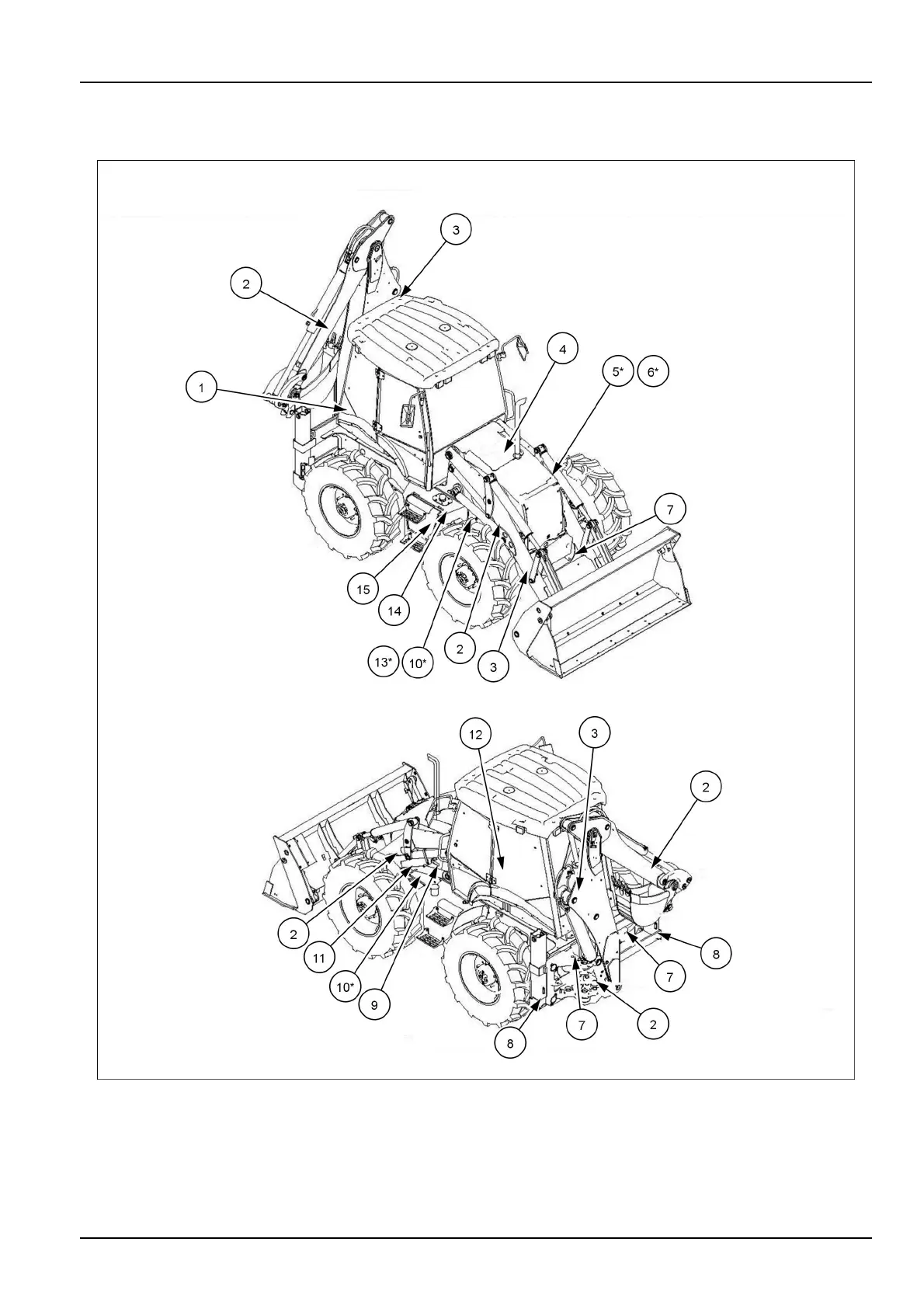

2-SAFETYINFORMATION

Positionofsafetysignsoutsidethecabor

canopy

RAIL15TLB0554HA1

NOTE:AllitemswithanAsterisk*areintheenginecompartment.

NOTE:Themodelshownisforreferenceonly.Allmodelshavethesameplacementofsafetysignsonthemachine

exceptsomesignsarespecictosomemodelcongurations.Thosespecicsafetysignsareshownbutmaynot

applytoyourmachine.
