3-CONTROLSANDINSTRUMENTS

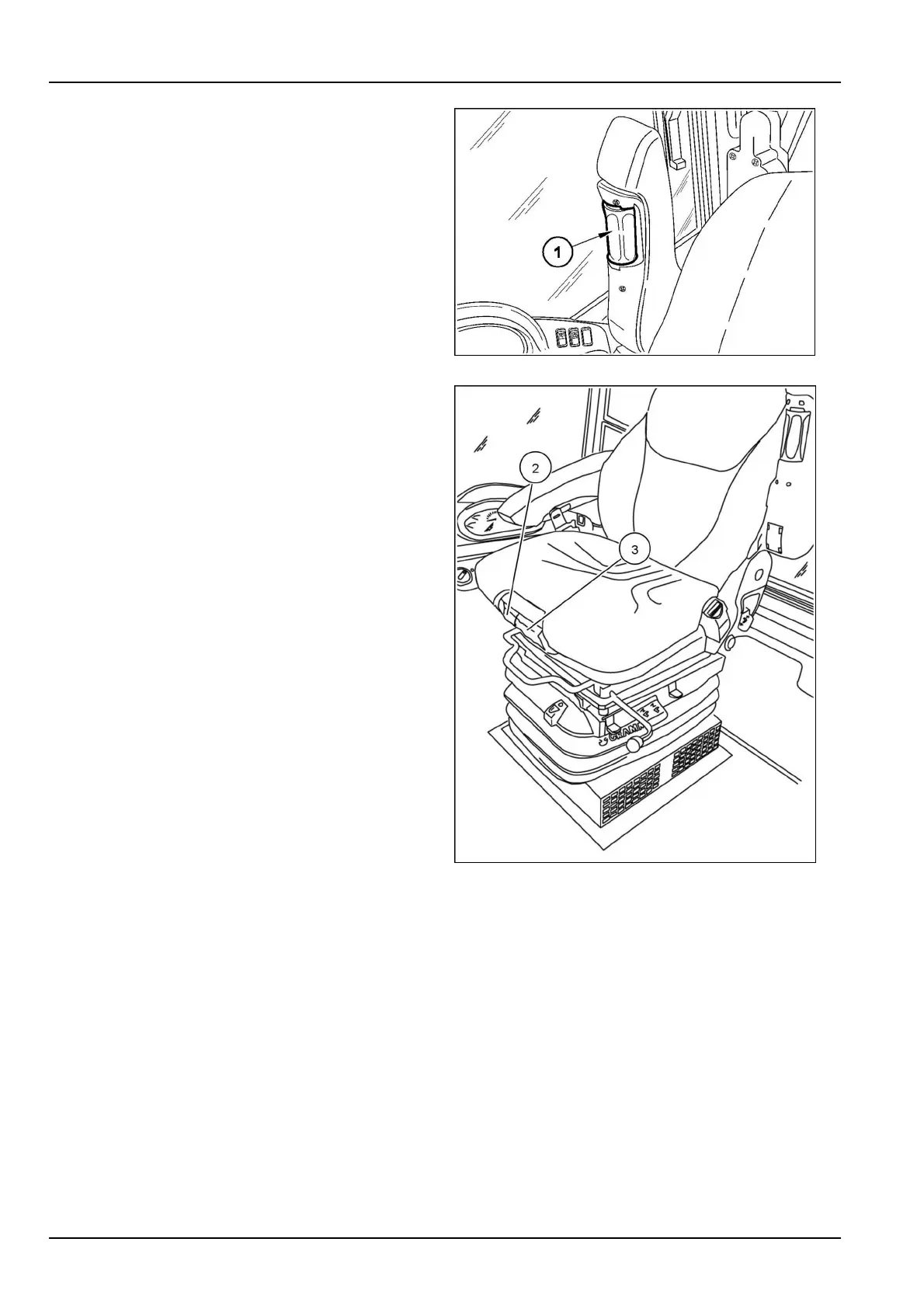

Armrestangleadjustment

Raisethearmrest,turntheknob(1)toobtainthedesired

armrestpositionandthenlowerthearmrest.

LEEN11T0083AA3

Cushionangleadjustment

Liftthehandle(2)upandmovethecushiontothedesired

position.Releasethehandletolockthecushioninplace.

Liftuponthehandle(3).Movetheseattothedesired

angle.Releasethehandletolockthecushionangle.

LEEN11T0459AA4

3-6
