3-CONTROLSANDINSTRUMENTS

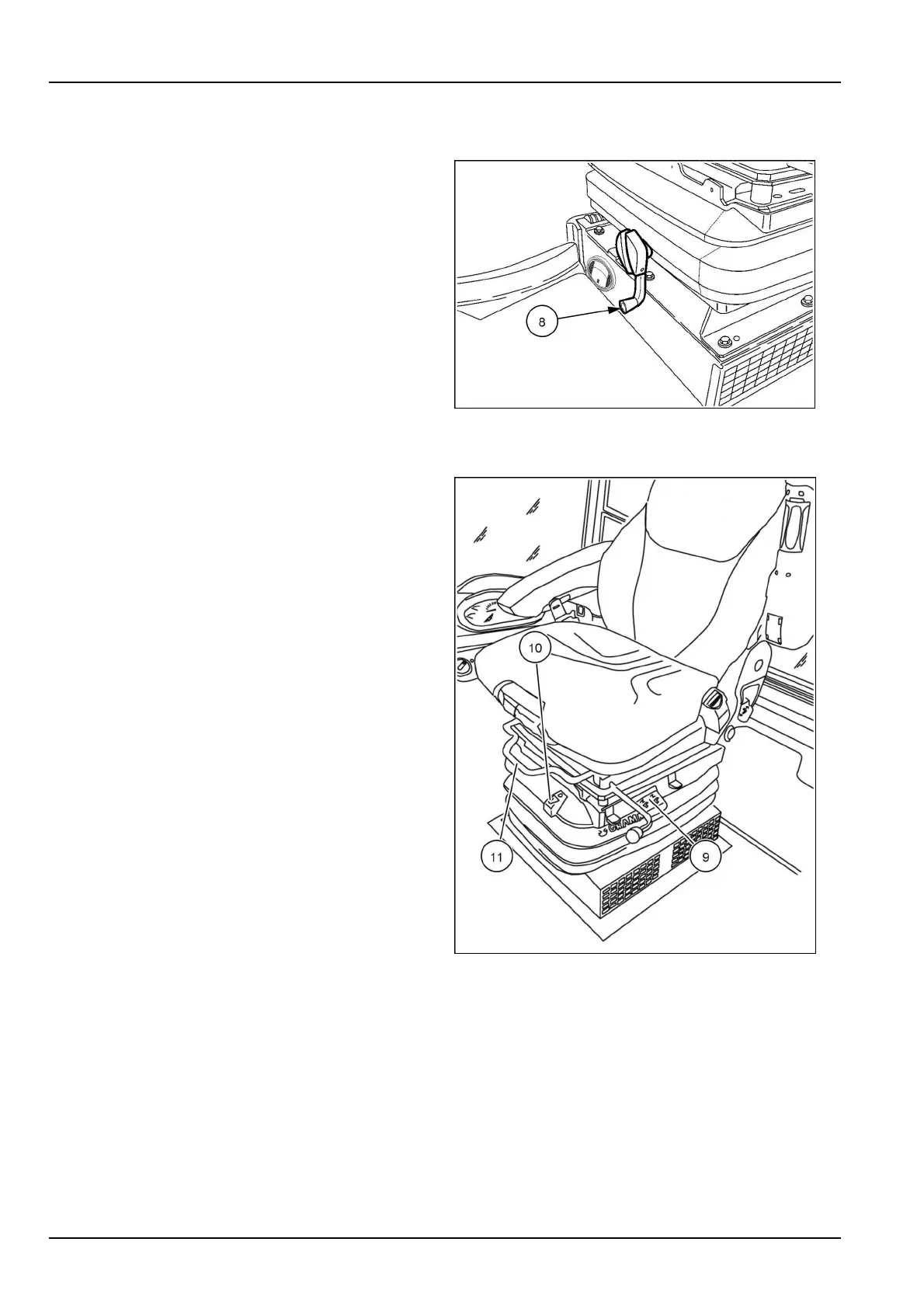

Combinedheightandweightadjustment

(Mechanicalversion)

Adjustmentmaybemadetosuittheoperator’ssize.Turn

thecontrol(8)toobtainthedesiredheight.

LEEN11T0087AA7

(Pneumaticversion)

Lowerthelever(9)toreducetherigidityofthesuspension.

Raisethehandletoincreasetherigidityofthesuspension.

Theindicator(10)mustbegreenwhentheoperatoris

sittingontheseat.

Seatforeandaftadjustment

Holdthelever(11)inraisedposition,slidetheseatuntil

thedesiredpositionisreachedandthenreleasethelever.

LEEN11T0464AA8

3-8
