CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-16
GREASE FITTINGS
Each 500 hours services

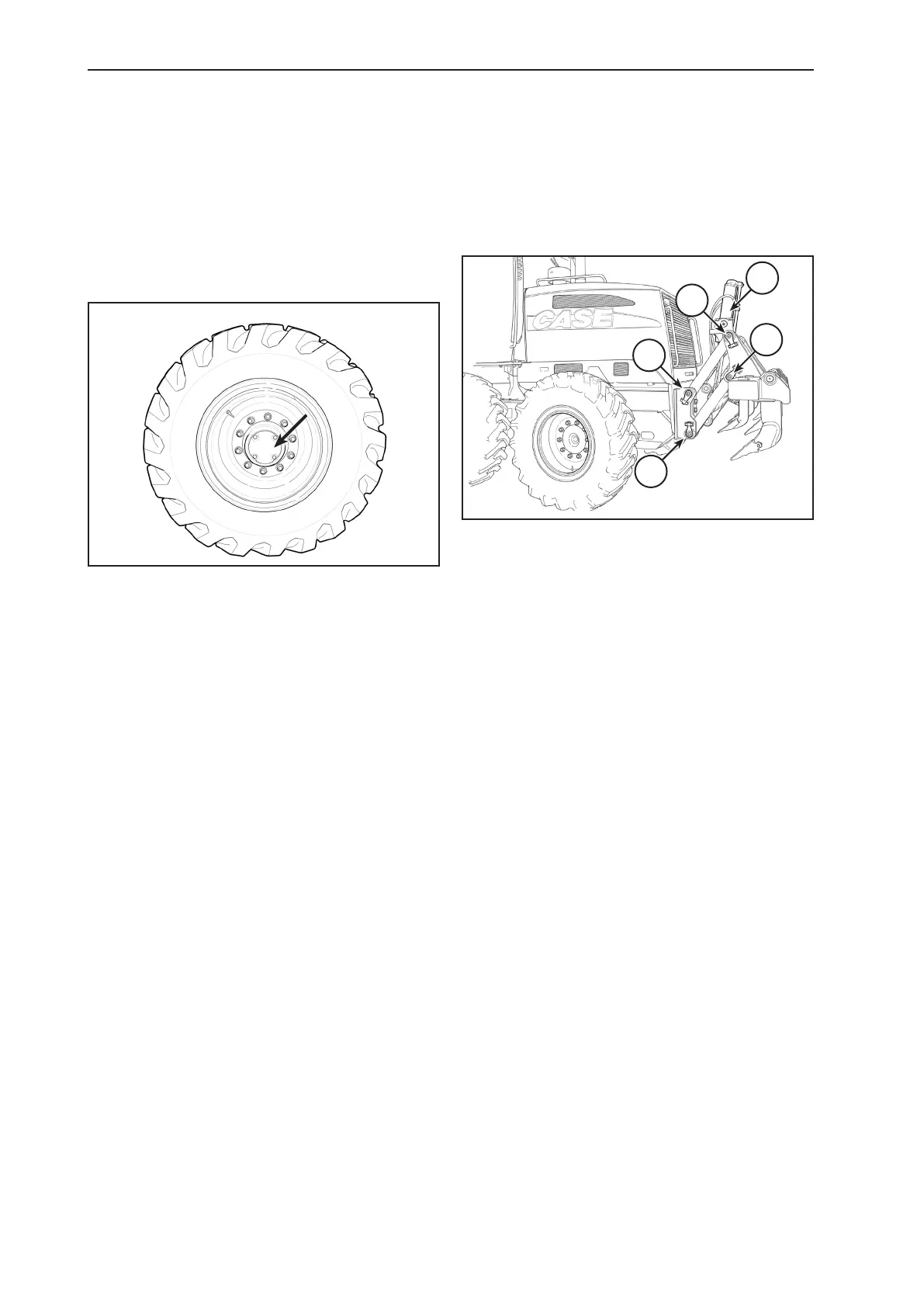

Front Wheel Bearings
Loosen xing bolts and remove cover.
Remove grease, clean bearing housing and ll it with 0.9
kg (each) of the specied grease. For more information
see Fluids and Lubricants.
FRONT WHEELS BEARINGS
Rear Ripper Pivots and Cylinder
There are 8 lube points for ripper linkage and 2 for the
cylinder. Lubricate wit 4 to 6 grease shots.
1
2
1
1
1
RIPPER PIVOTS1.
RIPPER CYLINDER2.
