CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-15

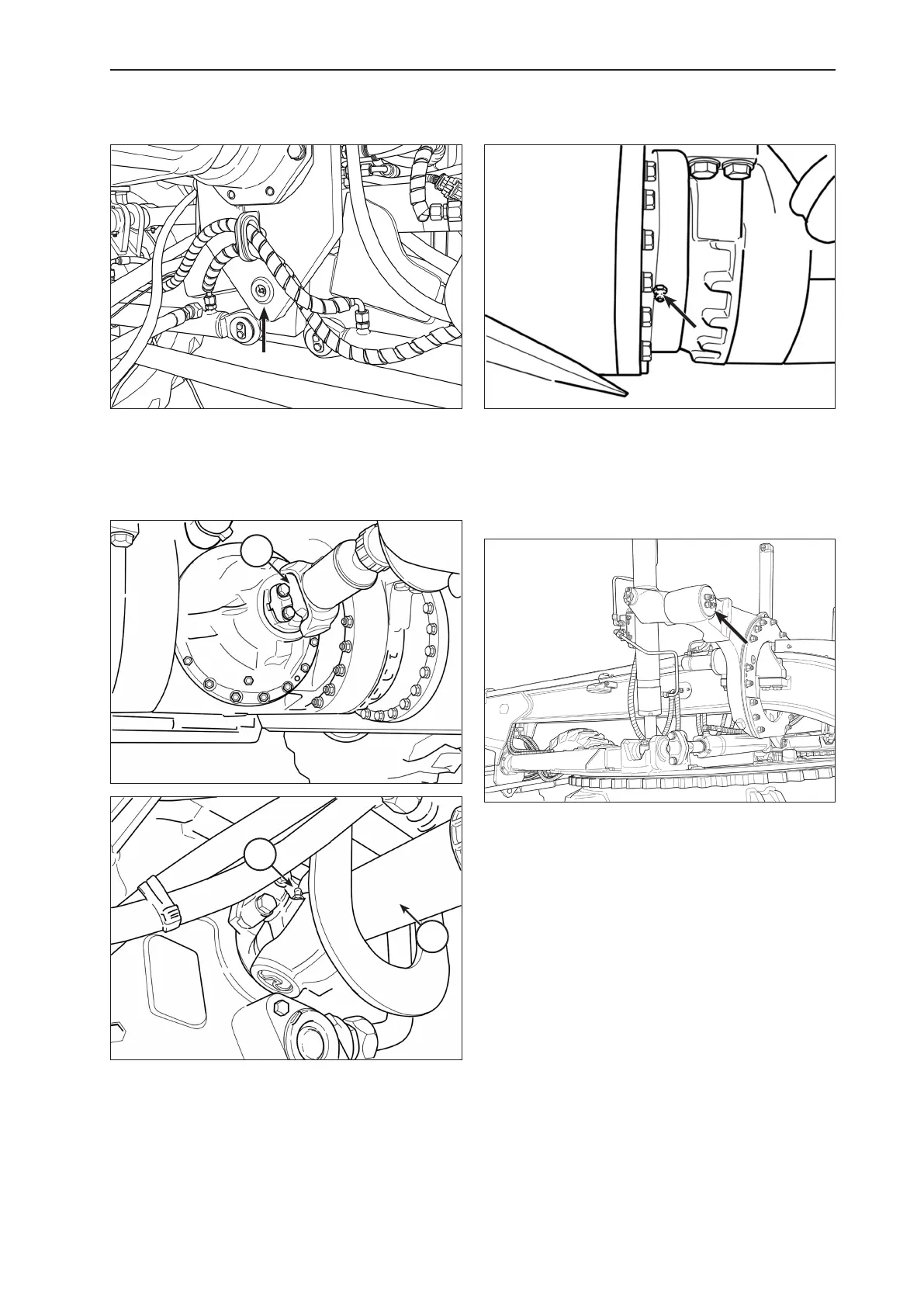

Front Axle Spindle Pivot
There are 2 lube points. Lubricate with 6 to 12 shots each.
FRONT AXLE SPINDLE PIVOT
Universal Joint and Drive Shaft
There are 3 lube points. Lubricate with 4 to 6 shots each.
1
2
1
UNIVERSAL JOINT1.
DRIVE SHAFT2.
Tandem Swing Bearing
There are 4 lube points. Lubricate with 14 to 20 shots each.
TANDEM SWING BEARING
Lift Cylinder Bearings
There are 2 lube points for the bearings. Lubricate the
bearings with 4 to 6 shots each.
LIFT CYLINDER BEARINGS
