ZF Transmission Fluid Change
FUNK Transmission Fluid Change and Screen Cleaning
845B / 865B / 885B MODELS
WITH ZF TRANSMISSION
Each 1000 hours
Run engine until transmission uid reaches operating
temperature. Park grader on a level surface, apply parking
brake, lower moldboard to ground and shut-off engine.
Remove the drain plug and drain the uid in a container of
at least 25 liters (6.6 U.S. Gallons) capacity.
Reinstall the plug. At this time, the transmission uid lter
must be replaced too.
Fill the system with the specied uid, until the specied
level. Run the engine to heat the uid and complete the
uid level, if necessary.
WARNING: Never use gasoline, solvent or
other ammable uids to clean parts. Use au-
thorized commercial, nonammable, nontoxic
solvents.
845B / 865B / 885B MODELS
WITH FUNK TRANSMISSION
Each 1000 hours
Run engine until transmission uid reaches operating
temperature. Park grader on a level surface, apply parking
brake, lower moldboard to ground and shut-off engine.
Remove the drain plug and drain the uid in a container of
at least 25 liters (6.6 U.S. Gallons) capacity.
Clean the screen thoroughly. Reinstall the screen and the
drain plug. At this time, the transmission uid lter must
be replaced too.
Fill the system with the specied uid, until the specied
level. Run the engine to heat the uid and complete the
uid level, if necessary.
WARNING: Never use gasoline, solvent or
other ammable uids to clean parts. Use au-
thorized commercial, nonammable, nontoxic
solvents.

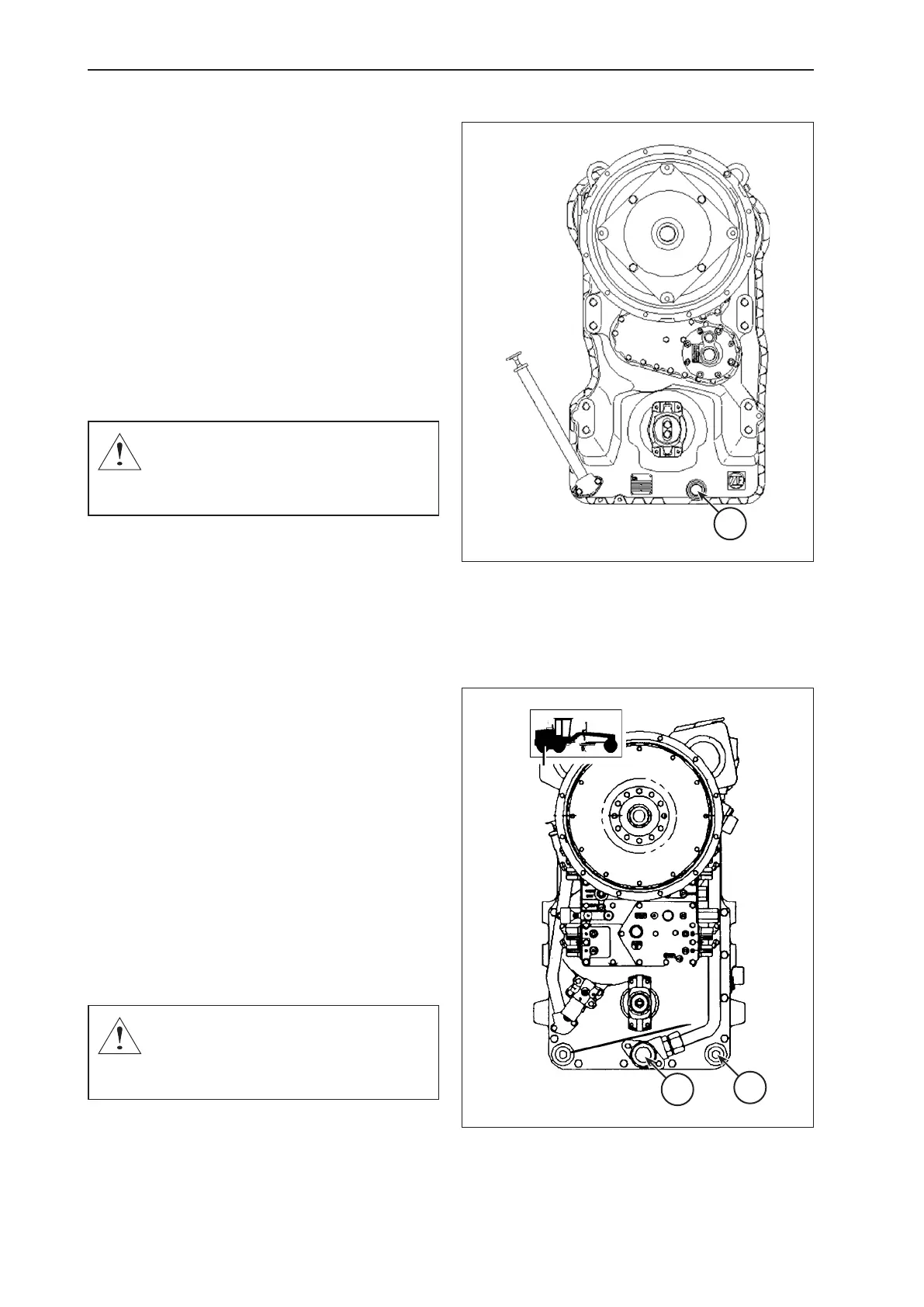

1
1. DRAIN PLUG
1
2
1. DRAIN PLUG
2. SCREEN
