CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-7

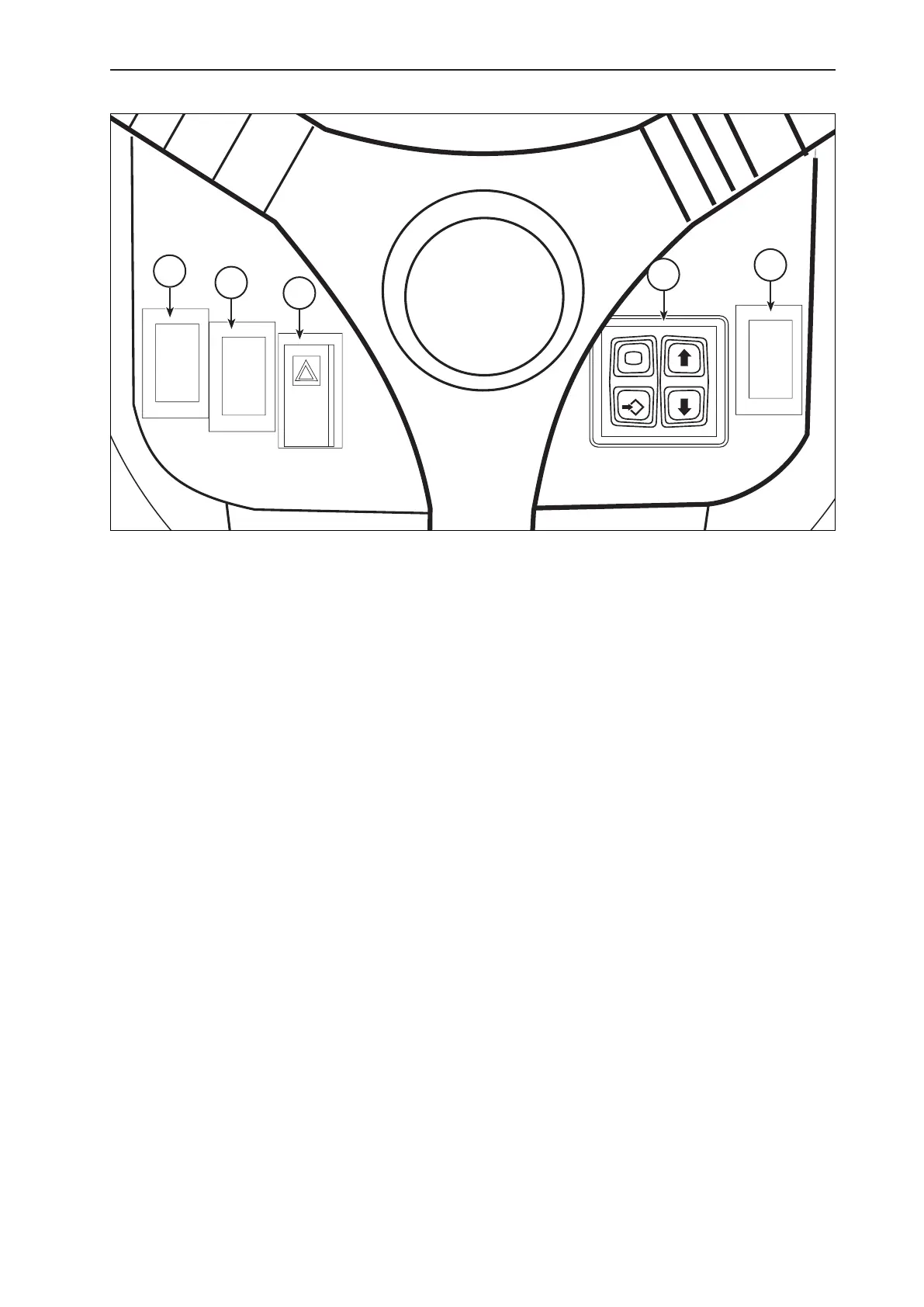

FRONT CONSOLE (BELOW STEERING WHEEL)5.
A
B
C
D
E
A. CYLINDERS ACCUMULATOR SWITCH (OPTIONAL)
This switch activates and deactivates the blocking function of the main dozer lifting cylinders.
It is a on/off type switch, allowing activating or deactivating the main dozer lifting cylinders blocking.
For activating the main dozer lifting cylinders blocking, place the switch to the “on’” position, and for deactivating
change the switch to the “off” position.
BLIND COVERB.
C. WARNING LIGHTS SWITCH
This switch turns warning lights on and off.
It is a on/off type switch allowing operating warning lights.
For activating the warning lights, place the switch to the “on’” position, and for deactivating change the switch to the
“off” position.
D. MULTIFUNCTIONAL LCD DISPLAY NAVIGATION SWITCHPAD
This switchpad is used for changing LCD display from one screen to another, choosing several selections, monito-
ring machine functions, and recovering information.
BLIND COVERE.
