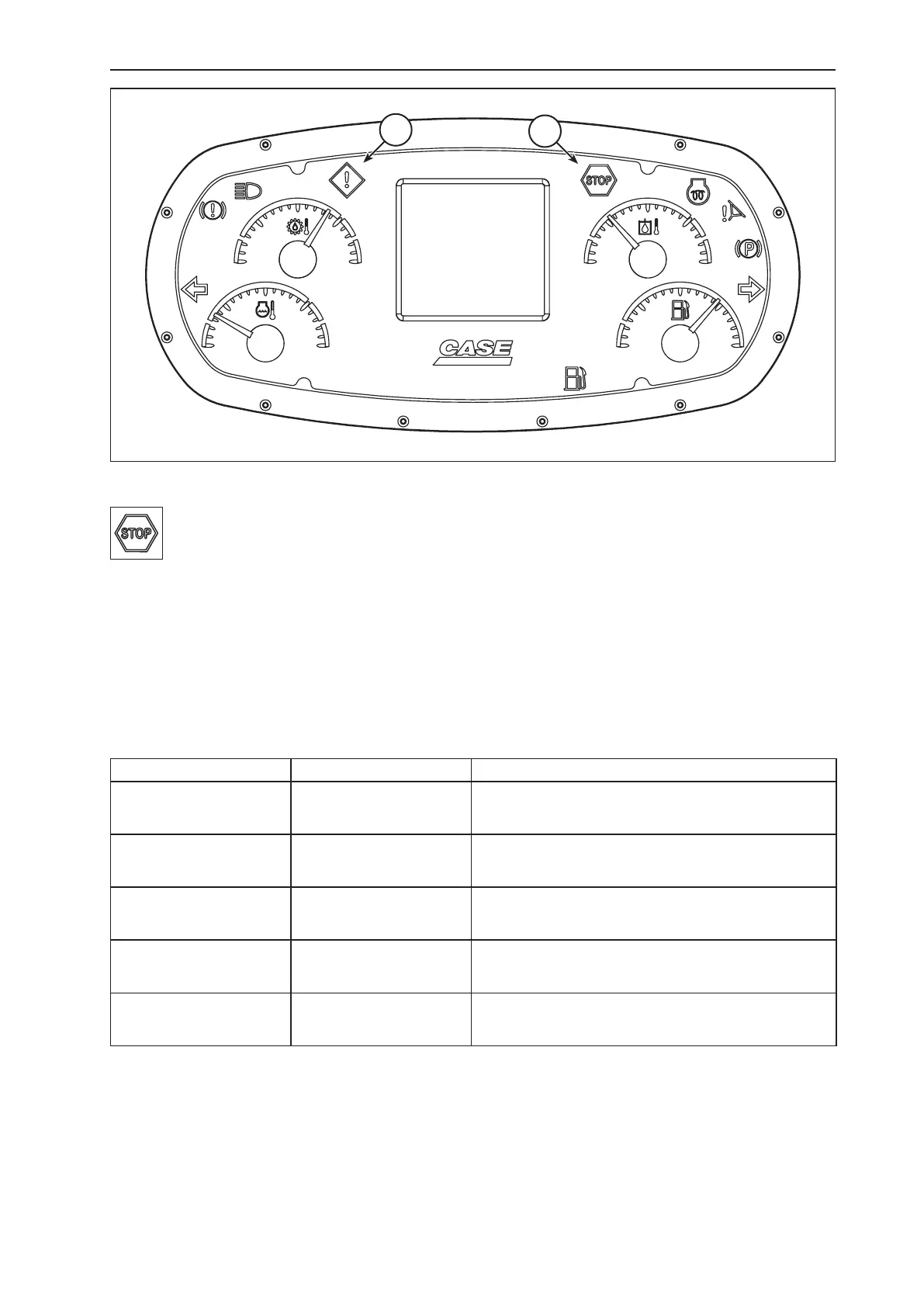

H. STOP MAIN INDICATOR LIGHT (RED, CRITICAL)
The stop main indicator light is an indicator for critical warnings. Refer to critical warning indicator lights.
Critical Warning Indicator Lights
When the Stop Main Indicator Light turns on, the machine must be stopped safely and the engine STOPPED immedia-
tely. The non compliance of this instruction may result in injury and/or damage to the machine.
The following table lists some of the critical warning indicators that may be shown on the cluster assembly, and the
necessary corrective action. When a failure occurs, a continuous sound alarm is heard and a RED stop main indicator
light is displayed on the message area.
Critical Warnings
Display Description Corrective Action
ENGINE OIL PRESSURE Low Engine Oil Pressure
Below 10 PSI.
Bring the machine to a safe stop and shut the engine OFF immediately.
Contact your Dealer.
BRAKE PRESSURE Low Brake Pressure. Bring the machine to a safe stop and shut the engine OFF immediately.
Contact your Dealer.
COOLANT
TEMPERATURE
High Engine
Coolant Temperature.
Bring the machine to a safe stop and shut the engine OFF immediately.
Check the coolant levels after allowing the engine and the coolant to
cool down. Contact your Dealer.
HYDRAULIC OIL
TEMPERATURE
High Hydraulic
Oil Temperature.
Bring the machine to a safe stop and shut the engine OFF immediately.
Contact your Dealer.
TRANSMISSION OIL
TEMPERATURE
High Transmission
Oil Temperature
Bring the machine to a safe stop and shut the engine OFF immediately.
Contact your Dealer.
