CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-13
L
M

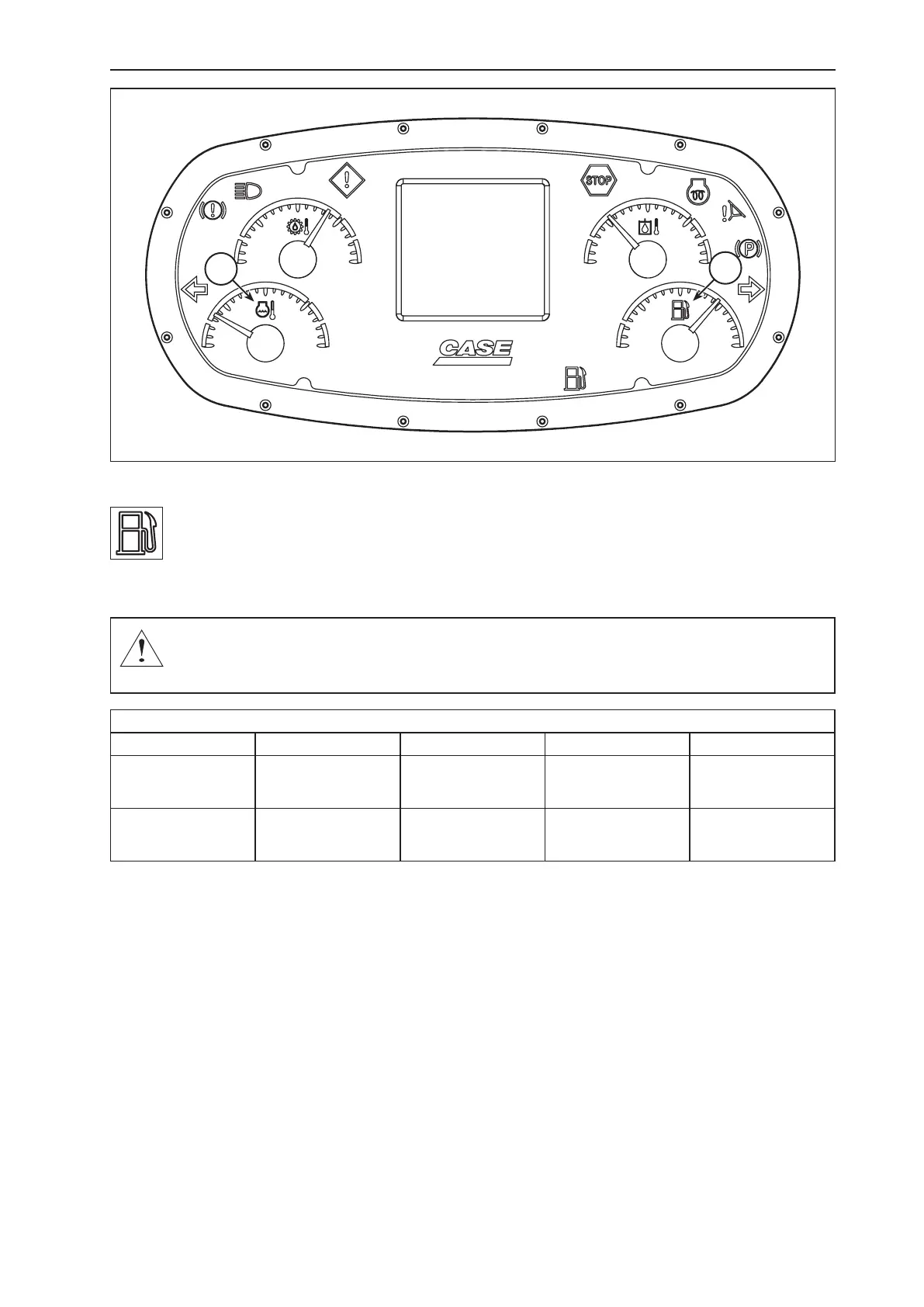

L. FUEL LEVEL GAUGE
This indicator shows the fuel level in the reservoir. The normal operation band is within the green band.
When the fuel reservoir is almost empty, the indicator passes to the yellow band and the fuel warning indi-
cator lights continuously, the warning alarm will sound for three seconds, and the warning main indicator will
change to red.
IMPORTANT: Do not operate the machine with few fuel.
WARNING: If the machine is out of fuel, do not try any service on the pressurized hydraulic piping. The
hydraulic piping is under high pressure. The non compliance of this instruction may result in injuries or
death.
FUEL LEVEL GAUGE
Gauge Indication Condition Master Indicator Gauge Status Alarm Status
10 percent and below Fuel level low. Caution (Red) Continuous 3 Seconds
10 percent and above Fuel level normal.
