CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-24

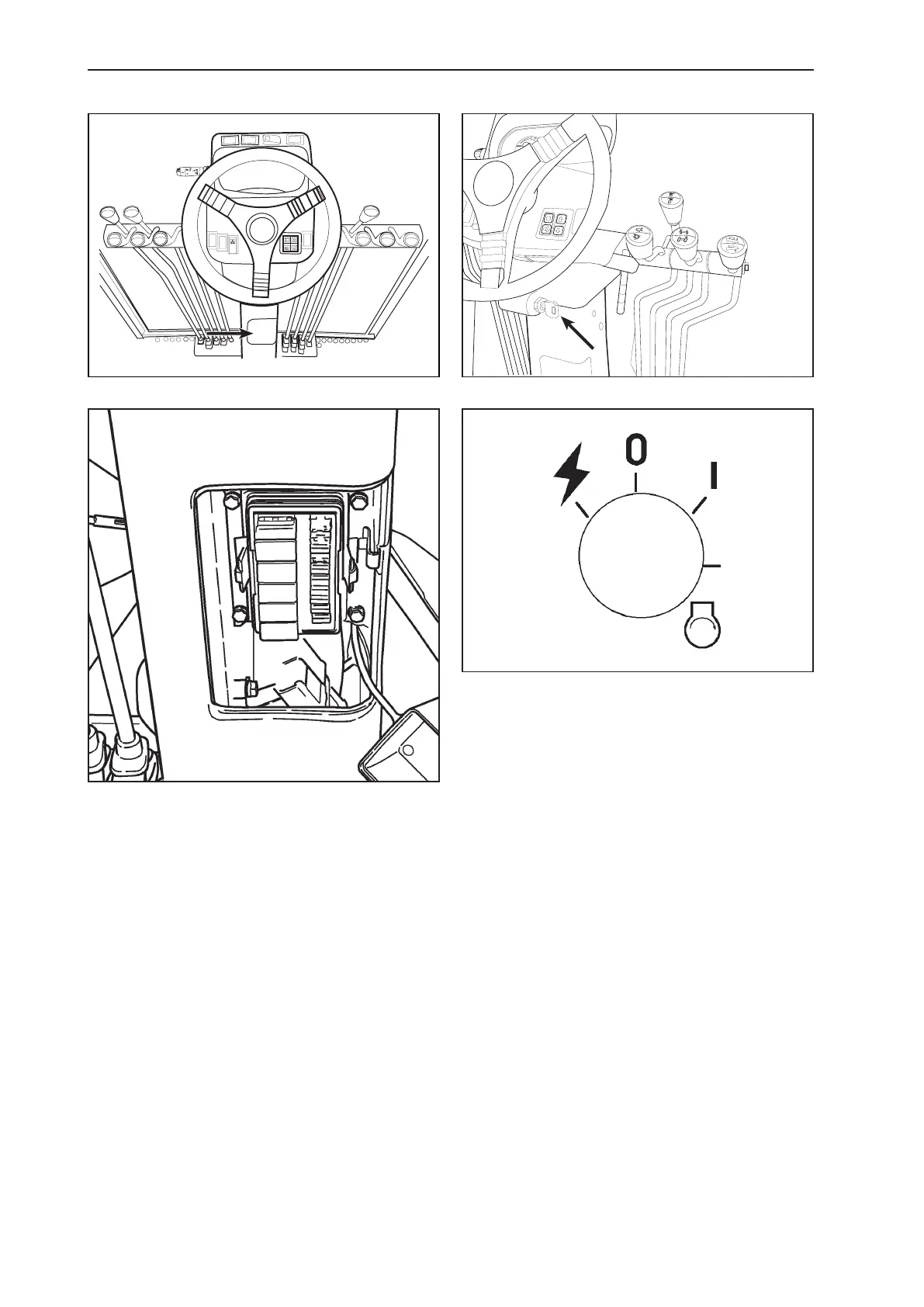

11. FUSE AND RELAYS BOX
FRONT CONSOLE FUSE BOX AND RELAYS (ECE)
FRONT CONSOLE FUSE BOX AND RELAYS,
STEERING COLUMN (ECE)
12. IGNITION SWITCH
ACC
OFF
IGN
START
The ignition switch is located on the steering column side.
It is a rotary switch which can only be actuated by the
ignition switch.
NOTE: When the machine is turned off, make sure the
ignition switch is in the “OFF”. Be careful not to let the
ignition switch in the “ACC” (Accessory) position. In this
position the accessory electric circuits will be energized
and after a long period can discharge the batteries.
It has four positions, as show below.
In this position some circuits such as the wipers and li-
ghts, are energized for use.
OFF
In this position all key activated electrical circuits are off.
The key can be removed.
IGN
In this position all key activated electrical circuits are “ON”.
CAUTION: Never leave the key in the ACC position when
the engine is not running.
START
In this position, the starting circuits are energized.
