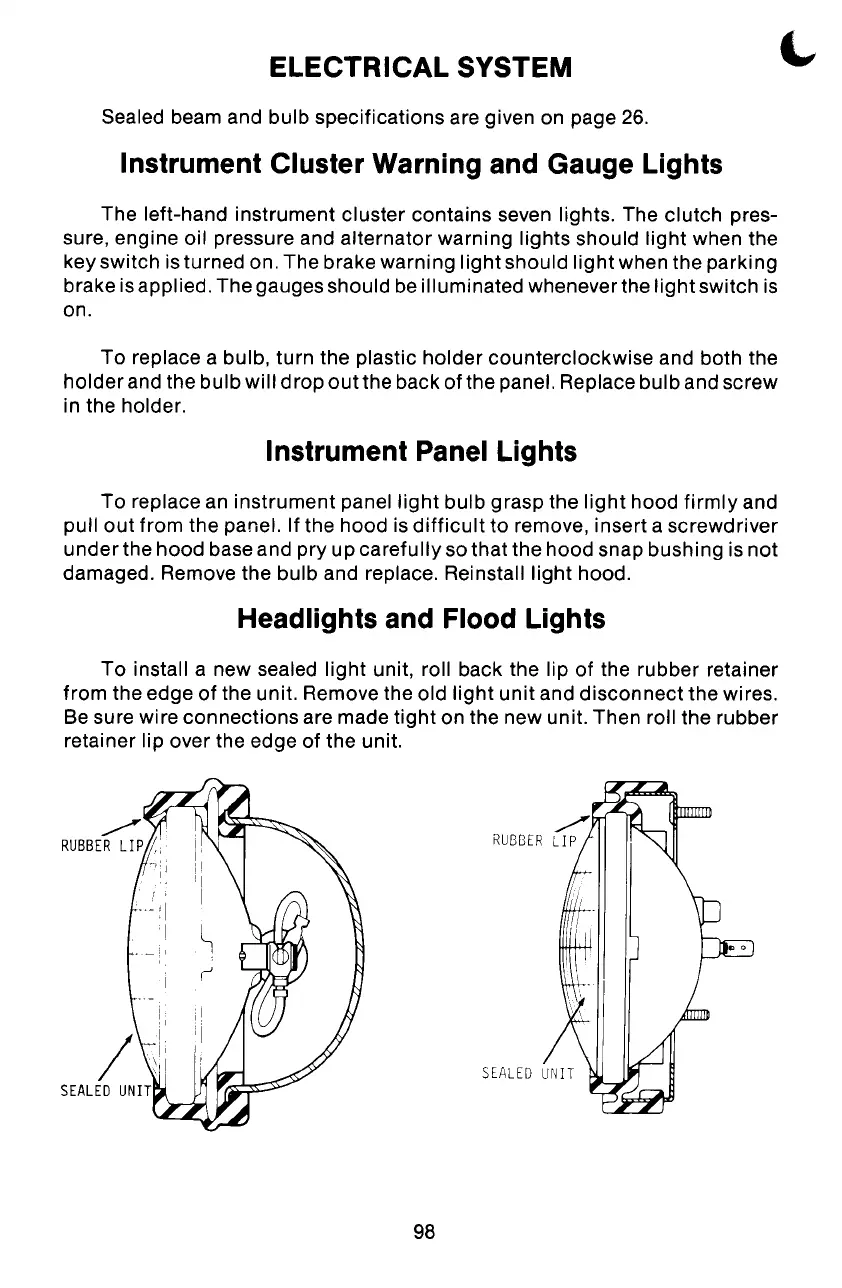

ELECTRICAL SYSTEM
Sealed beam and bulb specifications are given on page 26.
Instrument Cluster Warning and Gauge Lights
The left-hand instrument cluster contains seven lights. The clutch pres-
sure, engine oil pressure and alternator warning lights should light when the
key switch isturned on. The brake warning light should light when the parking
brake is applied. The gauges should be illuminated whenever the light switch is
on.
To replace a bulb, turn the plastic holder counterclockwise and both the
holder and the bulb will drop out the back of the panel. Replace bulb and screw
in the holder.
Instrument Panel Lights
To replace an instrument panel light bulb grasp the light hood firmly and
pullout from the panel. If the hood is difficult to remove, insert a screwdriver
under the hood base and pry up carefully so that the hood snap bushing is not
damaged. Remove the bulb and replace. Reinstall light hood.
Headlights and Flood Lights
To install a new sealed light unit, roll back the lip of the rubber retainer
from the edge of the unit. Remove the old light unit and disconnect the wires.
Be sure wire connections are made tight on the new unit. Then roll the rubber
retainer lip over the edge of the unit.
98
