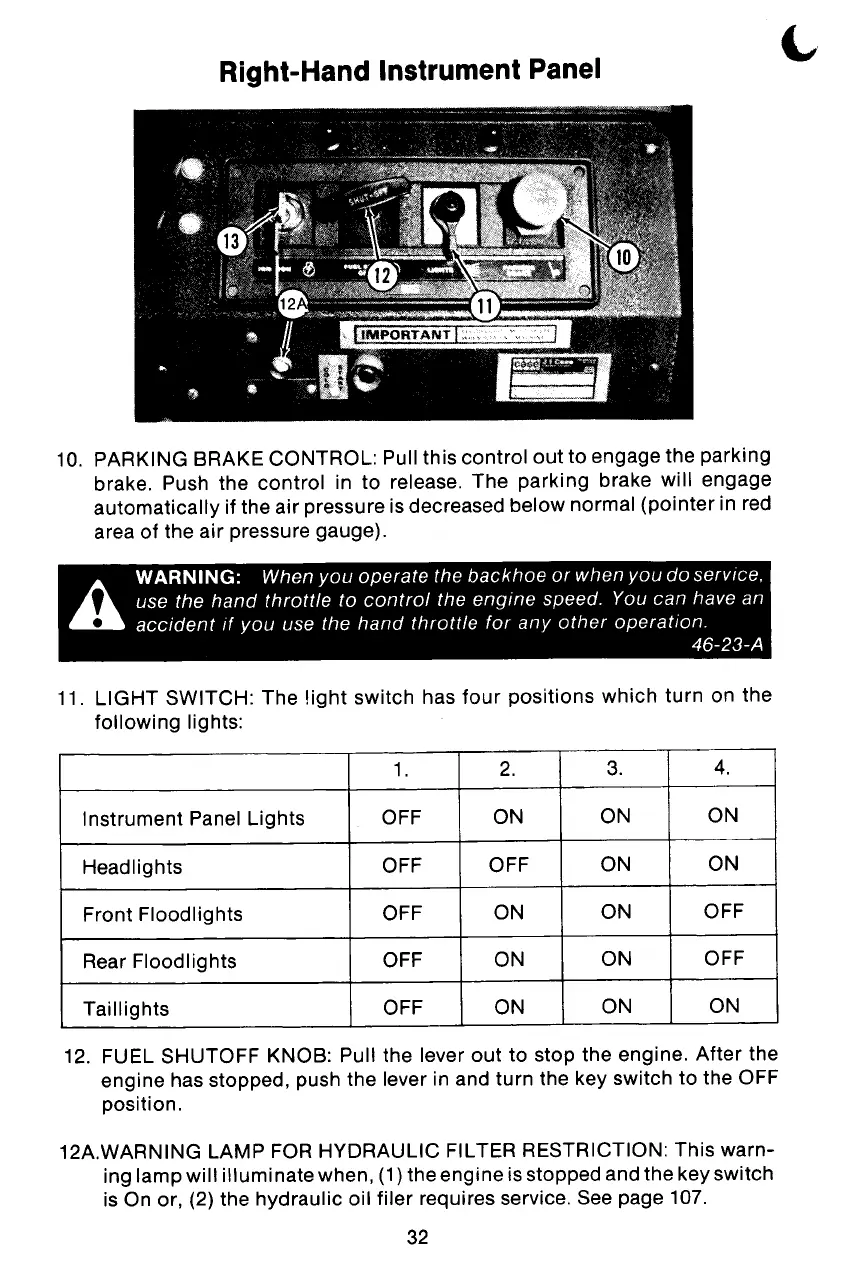

Case W14 - Right Instrument Panel

Right-Hand Instrument Panel
10. PARKING BRAKE CONTROL: Pull this control out to engage the parking
brake. Push the control in to release. The parking brake will engage
automatically if the air pressure is decreased below normal (pointer in red
area of the air pressure gauge).
WARNING: When you operate the backhoe or when you do service.
11... use the hand throttle to control the engine speed. You can have an
.. accident If you use the hand throttle for any other ooeretion.
46-23-A
11. LIGHT SWITCH: The light switch has four positions which turn on the
following lights:
1.
2.
3.
4.
Instrument Panel Lights
OFF
ON
ON
ON
Headlights
OFF
OFF
ON
ON
Front Floodlights
OFF
ON
ON
OFF
Rear Floodlights
OFF
ON
ON
OFF
Taillights
OFF
ON
ON
ON
12. FUEL SHUTOFF KNOB: Pull the lever out to stop the engine. After the
engine has stopped, push the lever in and turn the key switch to the OFF
position.
12A.WARNING LAMP FOR HYDRAULIC FILTER RESTRICTION: This warn-
ing lamp will illuminate when, (1) the engine is stopped and the key switch
is On or, (2) the hydraulic oil filer requires service. See page 107.
