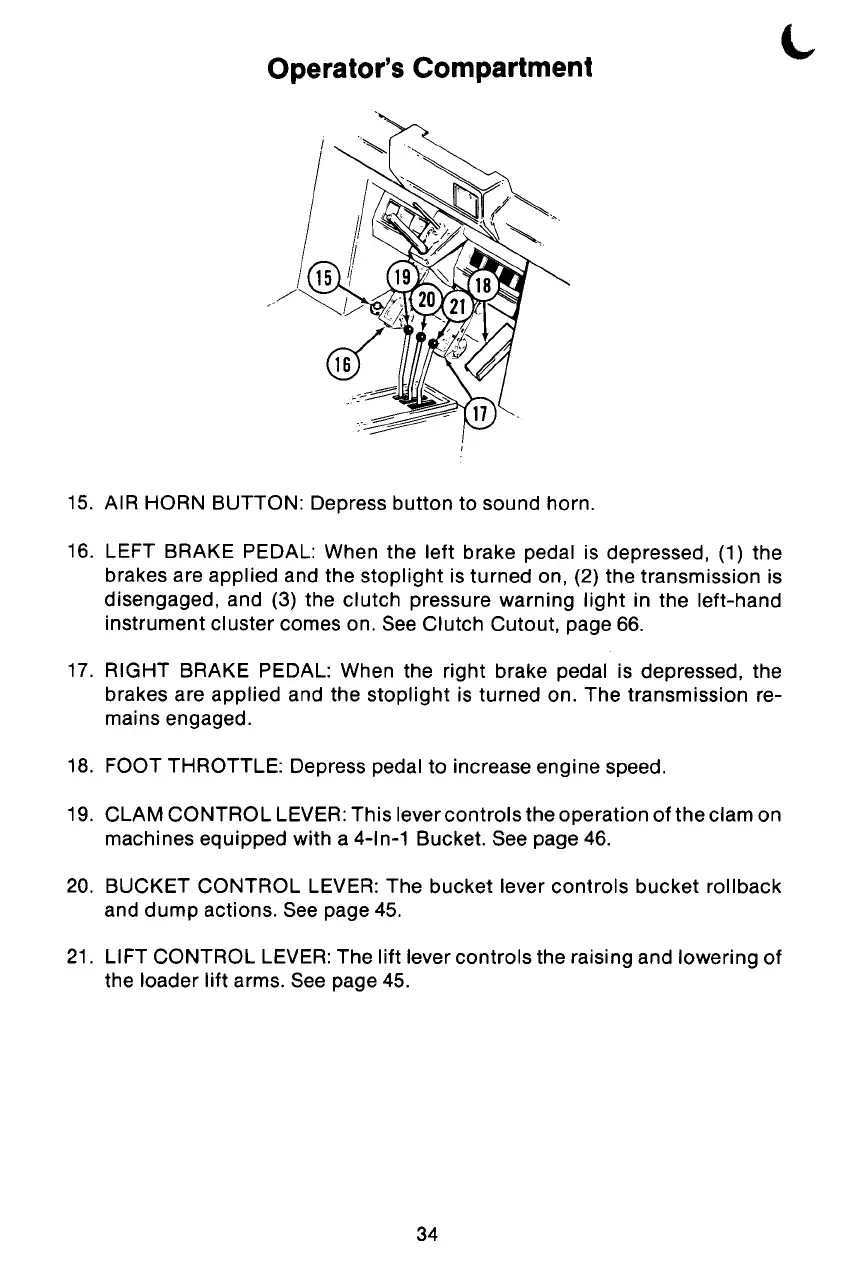

Operator's Compartment
15. AIR HORN BUTTON: Depress button to sound horn.
16. LEFT BRAKE PEDAL: When the left brake pedal is depressed, (1) the
brakes are applied and the stoplight is turned on, (2) the transmission is
disengaged, and (3) the clutch pressure warning light in the left-hand
instrument cluster comes on. See Clutch Cutout, page 66.
17. RIGHT BRAKE PEDAL: When the right brake pedal is depressed, the
brakes are applied and the stoplight is turned on. The transmission re-
mains engaged.
18. FOOT THROTTLE: Depress pedal to increase engine speed.
19. CLAM CONTROL LEVER: This lever controls the operation of the clam on
machines equipped with a 4-ln-1 Bucket. See page 46.
20. BUCKET CONTROL LEVER: The bucket lever controls bucket rollback
and dump actions. See page 45.
21. LIFT CONTROL LEVER:The lift lever controls the raising and lowering of
the loader lift arms. See page 45.
34
