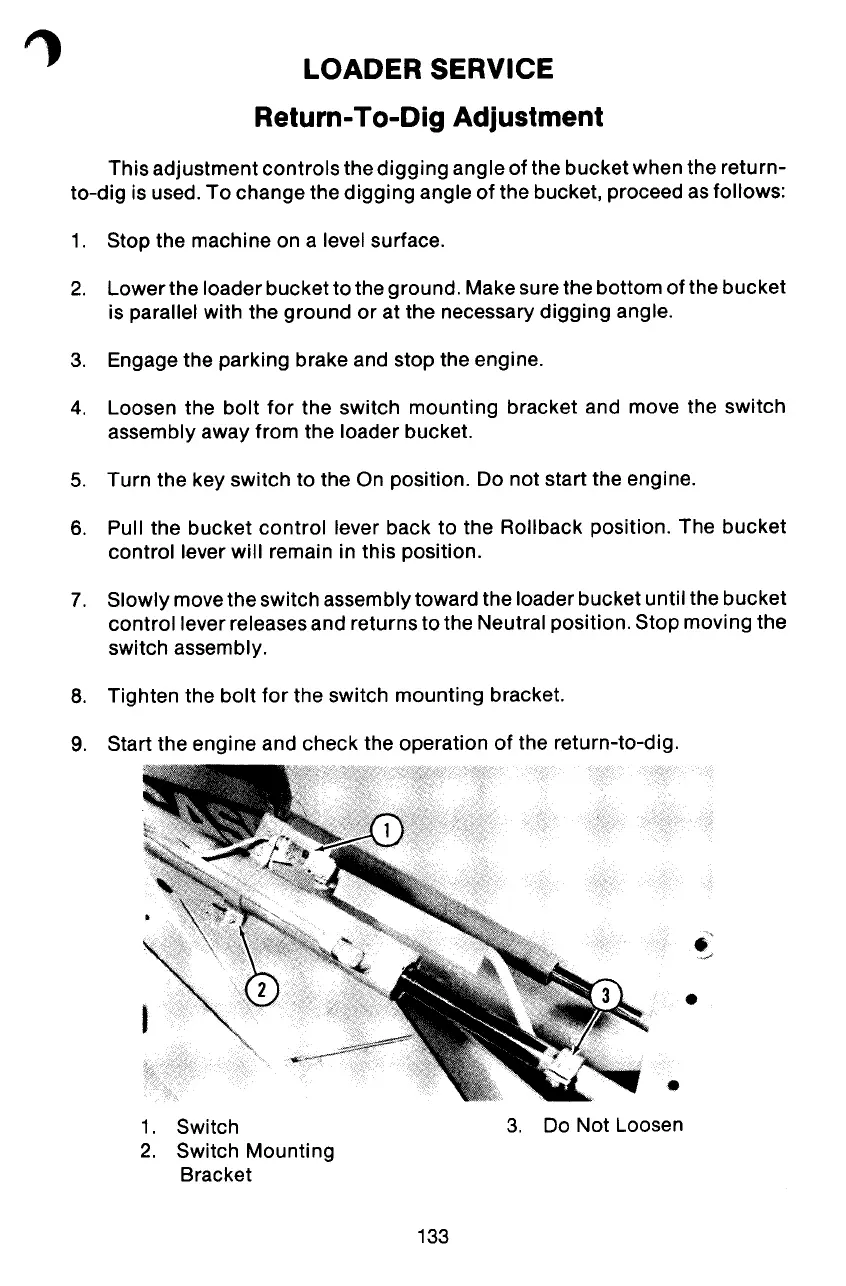

LOADER SERVICE
Return- To-Dig Adjustment
This adjustment controls the digging angle of the bucket when the return-
to-dig is used.To change the digging angle of the bucket, proceed asfollows:
1. Stop the machine on a level surface.
2. Lowerthe loader buckettothe ground. Makesurethe bottom of the bucket
is parallel with the ground or at the necessarydigging angle.
3. Engagethe parking brake and stop the engine.
4. Loosen the bolt for the switch mounting bracket and move the switch
assembly away from the loader bucket.
5. Turn the key switch to the On position. Do not start the engine.
6. Pull the bucket control lever back to the Rollback position. The bucket
control lever will remain in this position.
7. Slowly movethe switch assemblytoward the loader bucket until the bucket
control lever releasesand returns to the Neutral position. Stop moving the
switch assembly.
8. Tighten the bolt for the switch mounting bracket.
9. Start the engine and check the operation of the return-to-dig .
•
1. Switch
2. Switch Mounting
Bracket
3. Do Not Loosen
133
